| Manufacturer Part Number | SI562 |
| Thread Size (Inch) | 1/2" |
| Thread Size (Decimal Inch) | 0.500" |
| Thread Size (mm) | 12.70mm |
| Threads per Inch (TPI) | 13 |
| Thread Series | UNC |
| Pitch Limit | 2B |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 3.810" |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 1.083" |
| Thread Length (mm) | 27.51mm |
| Square Length (Decimal Inch) | 0.560" |
| Square Length (mm) | 14.22mm |
| Shank Diameter (Decimal Inch) | 0.480" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.360" |
| Square Size (mm) | 9.14mm |
| Neck Diameter (Decimal Inch) | 0.469" |
| Neck Diameter (mm) | 11.91mm |
| Drill Size (Decimal Inch) | 0.525" |
| Drill Size (mm) | 13.34mm |
| Connection Size (Decimal Inch) | 0.480" x 0.360" |
| Connection Size (mm) | 12.19 x 9.14mm |
| Usable Length (Decimal Inch) | 1.810" |
| Usable Length (mm) | 45.97mm |
| Length / Diameter | 3.0 x D |
| Number of Flutes | 3 |
| Coating | Hardslick |
| Material | HSS-E |
| Blank Standard | 322 |
| Series | SI |

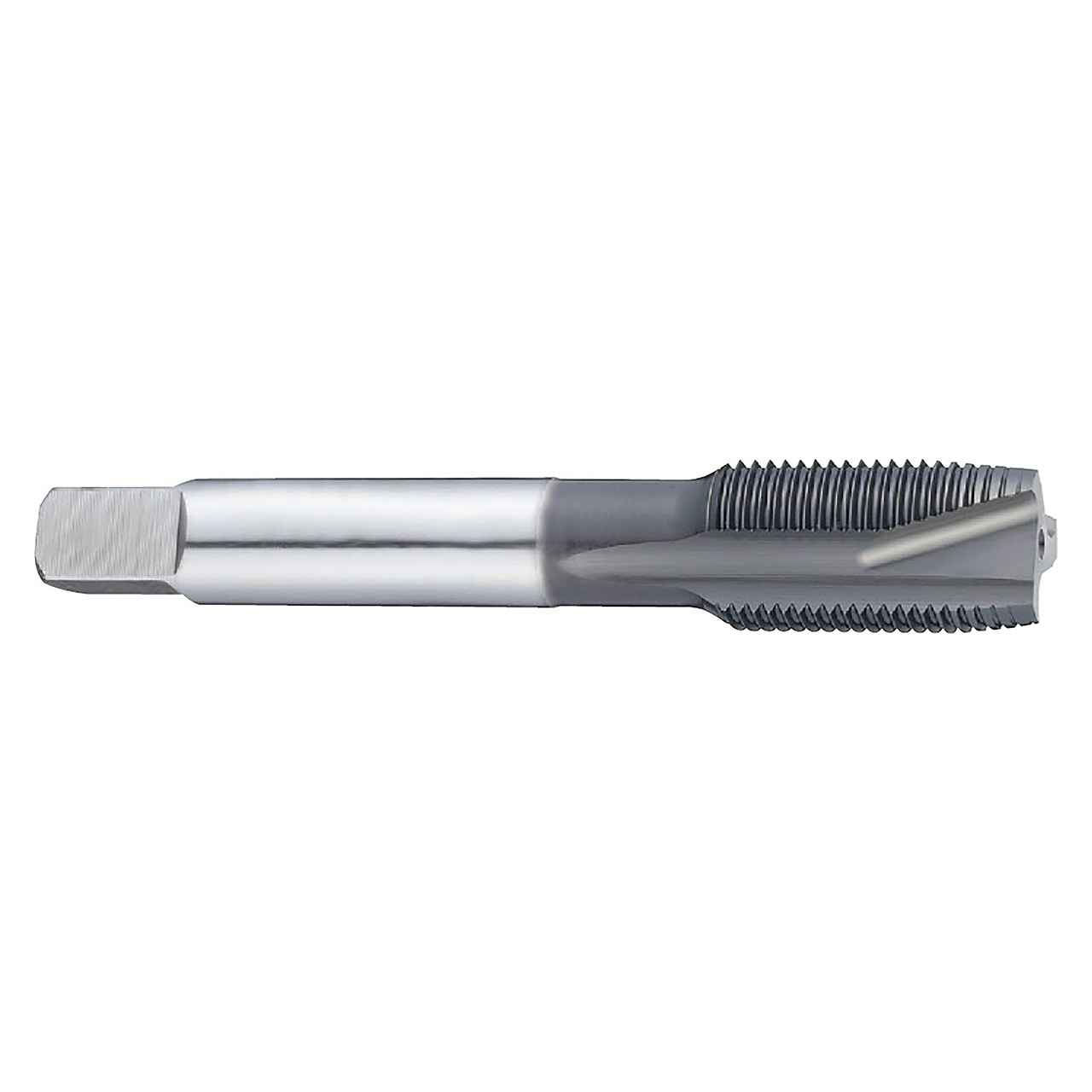

| Product Type | Spiral Point Tap |
