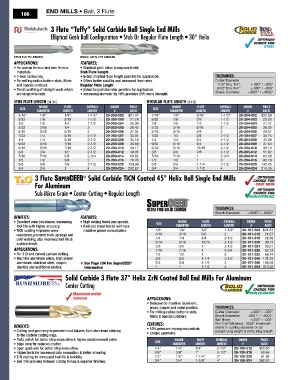

END MILLS • Ball, 3 Flute
106

3 Flute “Tuffy” Solid Carbide Ball Single End Mills
Elliptical Gash Ball Configuration • Stub Or Regular Flute Length • 30° Helix

Stub Flute length regular Flute length
APPLiCAtiOns: feAtures:
• For use on ferrous and non-ferrous • Elliptical gash helps to improve finish.
materials. Stub Flute Length
• 3-Axis contouring. • Select shortest flute length possible for application. TolErANCES:
• For milling radius bottom slots, fillets • Offers better stability and increased feed rates. Cutter Diameter
and special contours. Regular Flute Length 1/16" thru 1/4": +.000" / -.002"
• Finish profiling of straight walls which • Select largest diameter possible for application. 9/32" thru 3/4": +.000" / -.003"
are tangent to radii. • Increasing diameter by 10% provides 25% more strength. Shank Diameter: -.0001" / -.0002"
STuB FluTE lENgTH [SB-301] rEgulAr FluTE lENgTH [B-333]
SHANk FluTE ovErAll orDEr PriCE SHANk FluTE ovErAll orDEr PriCE
SiZE SiZE
DiAMETEr lENgTH lENgTH # EACH DiAMETEr lENgTH lENgTH # EACH
1/16" 1/8" 1/8" 1-1/2" 20-203-002 $21.47 1/16" 1/8" 3/16" 1-1/2" 20-204-002 $22.59
3/32 1/8 3/16 1-1/2 20-203-003 21.78 3/32 1/8 3/8 1-1/2 20-204-003 23.00
1/8 1/8 1/4 1-1/2 20-203-004 20.30 1/8 1/8 1/2 1-1/2 20-204-004 21.47
5/32 3/16 1/4 2 20-203-005 26.42 5/32 3/16 9/16 2 20-204-005 28.05
3/16 3/16 5/16 2 20-203-006 27.34 3/16 3/16 5/8 2 20-204-006 28.97
7/32 1/4 5/16 2-1/2 20-203-007 33.81 7/32 1/4 5/8 2-1/2 20-204-007 35.75
1/4 1/4 5/16 2-1/2 20-203-008 33.10 1/4 1/4 3/4 2-1/2 20-204-008 35.09
9/32 5/16 7/16 2-1/2 20-203-009 35.60 9/32 5/16 3/4 2-1/2 20-204-009 37.64
5/16 5/16 7/16 2-1/2 20-203-010 34.17 5/16 5/16 13/16 2-1/2 20-204-010 36.16
3/8 3/8 1/2 2-1/2 20-203-012 49.01 3/8 3/8 7/8 2-1/2 20-204-012 51.92
7/16 7/16 5/8 2-3/4 20-203-014 59.62 7/16 7/16 1 2-3/4 20-204-014 63.09
1/2 1/2 5/8 3 20-203-016 76.45 1/2 1/2 1 3 20-204-016 80.73
5/8 5/8 7/8 3-1/2 20-203-020 134.90 5/8 5/8 1-1/4 3-1/2 20-204-020 140.45
3/4 3/4 1 4 20-203-024 202.67 3/4 3/4 1-1/2 4 20-204-024 214.35
3 Flute SuperCEED Solid Carbide TiCN Coated 45° Helix Ball Single End Mills
®
For Aluminum
Sub-Micro Grain • Center Cutting • Regular Length

TolErANCES:
Shank Diameter: +.0000" / -.0003"
Benefits: feAtures:
• Excellent wear resistance, increasing • High cutting feeds and speeds. SiZE SHANk FluTE ovErAll orDEr PriCE
tool life with higher accuracy. • Reduces shear forces with less DiAMETEr lENgTH lENgTH # EACH
• TiCN coating improves wear machine power consumption. 1/8" 1/8" 1/2" 1-1/2" 20-101-308 $21.87
resistance, prevents built-up edge and 3/16 3/16 5/8 2 20-101-312 21.67
cold welding, also improves tool life & 1/4 1/4 3/4 2-1/2 20-101-316 28.48
surface finish. 5/16 5/16 13/16 2-1/2 20-101-320 30.13
APPLiCAtiOns: 3/8 3/8 1 1 2-1/2 20-101-324 38.21
20-101-328
7/16
2-3/4
52.19
7/16
• For 3-D and curved surface milling. 1/2 1/2 1 3 20-101-332 68.74
• Machine aluminum alloys, high silicon 5/8 5/8 1-1/4 3-1/2 20-101-340 131.38
aluminum, stainless steel, copper, ♦ See Page 104 For SuperCEED 3/4 3/4 1-1/2 4 20-101-348 168.59
®
plastics and additional exotics. Information 1 1 1-1/2 4 20-101-364 313.52
Solid Carbide 3 Flute 37° Helix ZrN Coated Ball End Mills For Aluminum
Center Cutting
Maximum metal
removal APPLiCAtiOns:
• Designed to machine aluminum,
brass, copper and some plastics. TolErANCES:
• For milling radius bottoms slots, Cutter Diameter: +.000" / -.002"
fillets & special contours. Shank Diameter: -.0001" / -.0004"
Ball Nose: +.000" / -.002"
Benefits: feAtures: Run Out Tolerance: .0005" maximum
shank to cutting diameter on all
• Cutting tool geometry to prevent most failures from aluminum sticking • 10% premium micrograin carbide. except long length & extra long length
• Unique geometry.
to the carbide cutting edge.
• Flute polish for better chip evacuation & higher metal removal rates. SHANk FluTE ovErAll orDEr PriCE
• Edge prep for reduced chatter. SiZE DiAMETEr lENgTH lENgTH # EACH
• Open gash end for better chip evacuation. 1/4" 1/4" 3/4" 2-1/2" 28-100-312 $40.50
• Higher helix for increased chip evacuation & better shearing. 3/8" 3/8" 1" 2-1/2" 28-100-316 52.66
• ZrN coating for increased tool life & lubricity. 1/2" 1/2" 1-1/4" 3" 28-100-320 81.89
• End mill provides reduced cutting forces & superior finishes. 3/4" 3/4" 1-5/8" 4" 28-100-324 202.97
