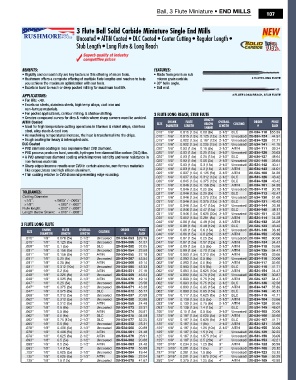

Page 109 - All Industrial Tool Supply | General Catalog

Ball, 3 Flute Miniature • END MILLS
107

3 Flute Ball Solid Carbide Miniature Single End Mills
Uncoated • AlTiN Coated • DLC Coated • Center Cutting • Regular Length •
Stub Length • Long Flute & Long Reach

Superb quality at industry
competitive prices
Benefits: feAtures:
• Rigidity and concentricity are key factors in this offering of micro tools. • Made from premium sub
• Rushmore offers a complete offering of multiple flute lengths and reaches to help micron grain carbide. 3 FLutE LoNg FLutE
you achieve the maximum optimization with our tools. • 30° helix angle.
• Excels in hard to reach or deep pocket milling for maximum tool life. • Ball end.
APPLiCAtiOns: 3 FLutE LoNg REach, Stub FLutE
• For HRc <48.
• Excels on steels, stainless steels, high temp alloys, cast iron and
non-ferrous materials.
• For pocket applications, contour milling, & shallow slotting. 3 FluTE long rEaCh, STuB FluTE
• Creates compound curves for dies & molds where sharp corners must be avoided. lEngTh
AlTiN Coated SizE Shank FluTE BElow ovErall CoaTing orDEr PriCE
• Ideal for high temperature cutting operations in titanium & nickel alloys, stainless DiaMETEr lEngTh Shank lEngTh # EaCh
steel, alloy steels & cast iron. .010" 1/8" 0.015 (1.5x) 0.08 (8x) 2-1/2" DLC 20-534-110 $55.39
• As machining temperatures increase, the heat is transferred into the chips. .010" 1/8" 0.015 (1.5x) 0.125 (12x) 2-1/2" Uncoated 20-534-124 44.91
• Tough coating for heavy & interrupted cuts. .015" 1/8" 0.022 (1.5x) 0.187 (12x) 2-1/2" Uncoated 20-534-125 37.71
DLC Coated .015" 1/8" 0.022 (1.5x) 0.225 (15x) 2-1/2" Uncoated 20-534-141 41.76
• PVD diamond coating is less expensive than CVD Diamond. .020" 1/8" 0.03 (1.5x) 0.16 (8x) 2-1/2" AlTiN 20-534-111 39.24
• PVD process produces hard, smooth, hydrogen free diamond like carbon (DLC) film. .020" 1/8" 0.03 (1.5x) 0.25 (12x) 2-1/2" Uncoated 20-534-126 36.63
• A PVD amorphous diamond coating which improves lubricity and wear resistance in .020" 1/8" 0.03 (1.5x) 0.25 (12x) 2-1/2" DLC 20-534-127 48.64
non-ferrous materials .020" 1/8" 0.03 (1.5x) 0.06 (3x) 2-1/2" Uncoated 20-534-140 35.64
• Sharp edges improve results over CVD in certain abrasive, non-ferrous materials .020" 1/8" 0.03 (1.5x) 0.3 (15x) 2-1/2" Uncoated 20-534-142 40.41
like copper,brass and high silicon aluminum. .020" 1/8" 0.03 (1.5x) 0.3 (15x) 2-1/2" AlTiN 20-534-143 44.01
• Thin coating relative to CVD diamond preventing edge rounding. .025" 1/8" 0.037 (1.5x) 0.125 (5x) 2-1/2" AlTiN 20-534-100 34.38
.025" 1/8" 0.037 (1.5x) 0.312 (12x) 2-1/2" DLC 20-534-128 43.42
.030" 1/8" 0.045 (1.5x) 0.375 (12x) 2-1/2" DLC 20-534-129 43.42
.031" 1/8" 0.046 (1.5x) 0.156 (5x) 2-1/2" AlTiN 20-534-101 34.38
.031" 1/8" 0.046 (1.5x) 0.25 (8x) 2-1/2" Uncoated 20-534-112 30.78
TolEranCES: .031" 1/8" 0.046 (1.5x) 0.25 (8x) 2-1/2" DLC 20-534-113 42.47
Cutting Diameter .031" 1/8" 0.046 (1.5x) 0.375 (12x) 2-1/2" Uncoated 20-534-130 31.68
<1/8": +.0005" / -.0005" .031" 1/8" 0.046 (1.5x) 0.375 (12x) 2-1/2" DLC 20-534-131 43.42
>1/8": +.002" / -.002" .031" 1/8" 0.046 (1.5x) 0.47 (15x) 2-1/2" Uncoated 20-534-144 36.18
Flute length: +.010" / -.000" .031" 1/8" 0.046 (1.5x) 0.47 (15x) 2-1/2" DLC 20-534-145 48.17
Length Below Shank: +.010" / -.000" .031" 1/8" 0.046 (1.5x) 0.625 (20x) 2-1/2" Uncoated 20-534-151 42.39
.035" 1/8" 0.052 (1.5x) 0.281 (8x) 2-1/2" AlTiN 20-534-114 34.38
3 FluTE long FluTE .040" 1/8" 0.06 (1.5x) 0.48 (12x) 2-1/2" AlTiN 20-534-132 35.28
0.06 (1.5x)
1/8"
.040"
20-534-133
43.42
0.48 (12x)
2-1/2" DLC
Shank FluTE ovErall orDEr PriCE .040" 1/8" 0.06 (1.5x) 0.6 (15x) 2-1/2" Uncoated 20-534-146 36.18
SizE CoaTing
DiaMETEr lEngTh lEngTh # EaCh .040" 1/8" 0.06 (1.5x) 0.8 (20x) 2-1/2" AlTiN 20-534-152 45.99
.015" 1/8" 0.078 (5x) 2-1/2" Uncoated 20-534-053 $29.79 .047" 1/8" 0.07 (1.5x) 0.25 (5x) 2-1/2" Uncoated 20-534-102 30.06
.015" 1/8" 0.125 (8x) 2-1/2" Uncoated 20-534-066 51.57 .047" 1/8" 0.07 (1.5x) 0.57 (12x) 2-1/2" AlTiN 20-534-134 34.47
.020" 1/8" 0.1 (5x) 2-1/2" DLC 20-534-050 37.05 .060" 1/8" 0.09 (1.5x) 0.5 (8x) 2-1/2" AlTiN 20-534-115 33.66
.031" 1/8" 0.156 (5x) 2-1/2" Uncoated 20-534-054 23.58 .060" 1/8" 0.09 (1.5x) 0.72 (12x) 2-1/2" AlTiN 20-534-135 34.47
.031" 1/8" 0.156 (5x) 2-1/2" AlTiN 20-534-055 27.18 .062" 1/8" 0.093 (1.5x) 0.312 (5x) 2-1/2" AlTiN 20-534-103 33.66
.031" 1/8" 0.25 (8x) 2-1/2" Uncoated 20-534-067 45.54 .062" 1/8" 0.093 (1.5x) 0.5 (8x) 2-1/2" Uncoated 20-534-116 30.06
.031" 1/8" 0.25 (8x) 2-1/2" AlTiN 20-534-068 49.14 .062" 1/8" 0.093 (1.5x) 0.5 (8x) 2-1/2" AlTiN 20-534-117 33.66
.031" 1/8" 0.312 (10x) 2-1/2" Uncoated 20-534-080 48.33 .062" 1/8" 0.093 (1.5x) 0.5 (8x) 2-1/2" DLC 20-534-118 41.71
.040" 1/8" 0.2 (5x) 2-1/2" AlTiN 20-534-051 27.18 .062" 1/8" 0.093 (1.5x) 0.625 (10x) 2-1/2" AlTiN 20-534-154 34.47
.040" 1/8" 0.325 (8x) 2-1/2" Uncoated 20-534-069 45.54 .062" 1/8" 0.093 (1.5x) 0.75 (12x) 2-1/2" Uncoated 20-534-136 30.87
.040" 1/8" 0.325 (8x) 2-1/2" AlTiN 20-534-070 49.14 .062" 1/8" 0.093 (1.5x) 0.75 (12x) 2-1/2" AlTiN 20-534-137 34.47
.047" 1/8" 0.25 (5x) 2-1/2" Uncoated 20-534-056 23.58 .062" 1/8" 0.093 (1.5x) 0.75 (12x) 2-1/2" DLC 20-534-138 42.56
.047" 1/8" 0.375 (8x) 2-1/2" Uncoated 20-534-071 43.38 .062" 1/8" 0.093 (1.5x) 0.95 (15x) 2-1/2" AlTiN 20-534-147 37.89
.047" 1/8" 0.375 (8x) 2-1/2" DLC 20-534-072 55.77 .062" 1/8" 0.093 (1.5x) 0.95 (15x) 2-1/2" DLC 20-534-148 46.17
.060" 1/8" 0.312 (5x) 2-1/2" Uncoated 20-534-057 20.88 .078" 1/8" 0.117 (1.5x) 0.625 (8x) 2-1/2" DLC 20-534-119 41.71
.062" 1/8" 0.312 (5x) 2-1/2" Uncoated 20-534-058 20.88 .093" 1/8" 0.139 (1.5x) 0.5 (5x) 2-1/2" AlTiN 20-534-104 33.66
.062" 1/8" 0.312 (5x) 2-1/2" AlTiN 20-534-059 24.48 .093" 1/8" 0.139 (1.5x) 0.75 (8x) 2-1/2" AlTiN 20-534-120 33.66
.062" 1/8" 0.5 (8x) 2-1/2" Uncoated 20-534-073 23.31 .093" 1/8" 0.139 (1.5x) 1.4 (15x) 3" DLC 20-534-149 48.07
.062" 1/8" 0.5 (8x) 2-1/2" AlTiN 20-534-074 26.91 .100" 1/8" 0.15 (1.5x) 0.5 (5x) 2-1/2" Uncoated 20-534-105 30.06
.062" 1/8" 0.5 (8x) 2-1/2" DLC 20-534-075 34.58 .125" 1/8" 0.187 (1.5x) 0.625 (5x) 2-1/2" AlTiN 20-534-106 33.66
.062" 1/8" 0.75 (12x) 2-1/2" DLC 20-534-077 52.25 .125" 1/8" 0.187 (1.5x) 0.625 (5x) 2-1/2" DLC 20-534-107 41.71
.065" 1/8" 0.5 (8x) 2-1/2" Uncoated 20-534-052 23.31 .125" 1/8" 0.187 (1.5x) 1 (8x) 2-1/2" AlTiN 20-534-121 33.66
.078" 1/8" 0.406 (5x) 2-1/2" Uncoated 20-534-060 20.88 .125" 1/8" 0.187 (1.5x) 1.25 (10x) 2-1/2" AlTiN 20-534-155 36.09
.078" 1/8" 0.406 (5x) 2-1/2" AlTiN 20-534-061 24.48 .125" 1/8" 0.187 (1.5x) 1.5 (12x) 3" Uncoated 20-534-139 32.22
.078" 1/8" 0.625 (8x) 2-1/2" AlTiN 20-534-076 26.91 .125" 1/8" 0.187 (1.5x) 1.875 (15x) 3" Uncoated 20-534-150 36.09
.093" 1/8" 0.5 (5x) 2-1/2" Uncoated 20-534-062 20.88 .125" 1/8" 0.187 (1.5x) 2.5 (20x) 4" Uncoated 20-534-153 42.21
.093" 1/8" 0.5 (5x) 2-1/2" AlTiN 20-534-063 24.48 .156" 3/16" 0.234 (1.5x) 1.25 (8x) 3" AlTiN 20-534-122 36.99
.093" 1/8" 1.4 (15x) 3" Uncoated 20-534-079 55.98 .187" 3/16" 0.281 (1.5x) 1 (5x) 3" Uncoated 20-534-108 33.12
.125" 1/8" 0.625 (5x) 2-1/2" Uncoated 20-534-064 19.44 .187" 3/16" 0.281 (1.5x) 1.5 (8x) 3" Uncoated 20-534-123 33.12
.125" 1/8" 0.625 (5x) 2-1/2" AlTiN 20-534-065 23.04 .187" 3/16" 0.281 (1.5x) 1.875 (10x) 4" Uncoated 20-534-156 35.28
.125" 1/8" 1.5 (12x) 3" Uncoated 20-534-078 41.67 .250" 1/4" 0.375 (1.5x) 1.25 (5x) 4" AlTiN 20-534-109 42.93
