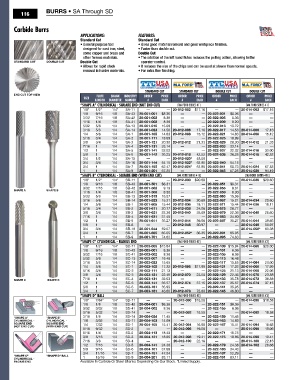

Page 118 - All Industrial Tool Supply | General Catalog

BURRS • SA Through SD
116

Carbide Burrs
aPPLICatIONs: Features:
Standard Cut Standard Cut
• General purpose tool • Gives good material removal and good workpiece finishes.
designed for cast iron, steel, • Faster than double cut.
some copper and brass and Double Cut
other ferrous materials. • The addition of the left hand flutes reduces the pulling action, allowing better
StanDarD Cut DouBle Cut Double Cut operator control.
• Allows for rapid stock • It reduces the size of the chips and can be used at slower than normal speeds.
removal in harder materials. • For extra fine finishing.

Standard Cut Standard Cut douBle Cut douBle Cut

enD Cut top vieW Flute Shank induStry order PriCe order PriCe order PriCe order PriCe
Size length diameter numBer # eaCh # eaCh # eaCh # eaCh
“ShaPe a” CylindriCal - SQuare end (not end Cut) [MA FORD SERIES 41] [MA FORD SERIES 41]
1/8" 1/2" 1/4" SA-11 — — 20-012-002 $17.16 — — 20-014-002 $17.16
1/8 9/16 1/8 SA-43 20-001-001 $8.36 — — 20-022-001 $8.36 — —
3/32 7/16 1/8 SA-42 20-001-002 8.36 — — 20-022-005 8.36 — —
1/16 1/4 1/8 SA-41 20-001-008 8.36 — — 20-022-009 9.20 — —
5/32 5/8 1/4 SA-13 20-001-015 15.09 — — 20-022-013 13.72 — —
3/16 5/8 1/4 SA-14 20-001-023 14.58 20-012-006 17.16 20-022-017 14.58 20-014-006 17.16
1/4 5/8 1/4 SA-1 20-001-105 14.83 20-012-008 15.12 20-022-021 14.83 20-014-008 15.12
5/16 3/4 1/4 SA-2 20-001-111 18.89 — — 20-022-025 18.89 — —
3/8 3/4 1/4 SA-3 20-001-121 20.30 20-012-012 21.33 20-022-029 20.30 20-014-012 21.33
7/16 1 1/4 SA-4 20-001-131 33.14 — — 20-022-033 33.14 — —
1/2 1 1/4 SA-5 20-001-141 32.02 — — 20-022-037 32.02 20-014-016 33.00
5/8 1 1/4 SA-6 20-001-142 36.25 20-012-018 42.52 20-022-038 36.25 20-014-018 42.52
3/4 1/2 1/4 SA-15 — — 20-012-020* 48.08 — — — —
3/4 3/4 1/4 SA-16 20-001-144 54.15 20-012-022* 52.85 20-022-040 54.15 — —
3/4 1 1/4 SA-7 20-001-185 62.47 20-012-024* 52.85 20-022-041 68.73 20-014-024 67.53
1 1 1/4 SA-9 20-001-201 67.25 — — 20-022-045 67.25 20-014-026 94.19
“ShaPe B” CylindriCal - SQuare end (with end Cut) [MA FORD SERIES 41E] [MA FORD SERIES 41E]
1/8" 1/2" 1/4" SB-11 — — 20-012-030 $20.60 — — 20-014-030 $20.60
1/8 9/16 1/8 SB-43 20-001-501 $8.31 — — 20-022-051 $8.31 — —
3/32 7/16 1/8 SB-42 20-001-502 9.13 — — 20-022-055 8.31 — —
Shape a Shape B
1/16 1/4 1/8 SB-41 20-001-508 8.30 — — 20-022-059 8.30 — —
5/32 5/8 1/4 SB-13 20-001-515 16.57 — — 20-022-063 15.06 — —
3/16 5/8 1/4 SB-14 20-001-523 15.21 20-012-034 20.60 20-022-067 15.21 20-014-034 20.60
1/4 5/8 1/4 SB-1 20-001-605 15.44 20-012-036 18.11 20-022-071 15.44 20-014-036 18.11
5/16 3/4 1/4 SB-2 20-001-611 20.77 20-012-038 24.06 20-022-075 20.77 — —
3/8 3/4 1/4 SB-3 20-001-621 22.36 20-012-040 25.60 20-022-079 22.36 20-014-040 25.60
7/16 1 1/4 SB-4 20-001-631 31.45 — — 20-022-083 34.60 — —
1/2 1 1/4 SB-5 20-001-641 35.27 20-012-044 39.66 20-022-087 35.27 20-014-044 39.66
5/8 1 1/4 SB-6 — — 20-012-046 50.97 — — 20-014-046 50.97
3/4 3/4 1/4 SB-16 20-001-644 59.07 — — — — 20-014-050* 63.38
3/4 1 1/4 SB-7 20-001-685 65.05 20-012-052* 36.35 20-022-091 65.05 — —
1 1 1/4 SB-9 20-001-701 74.63 — — 20-022-095 74.63 — —
“ShaPe C” CylindriCal - radiuS end [MA FORD SERIES 42] [MA FORD SERIES 42]
1/8" 1/2" 1/4" SC-11 20-003-005 $15.84 — — 20-022-109 $15.84 20-014-060 $20.00
1/8 9/16 1/8 SC-42 20-003-001 8.36 — — 20-022-101 8.36 — —
3/32 7/16 1/8 SC-41 20-003-002 8.36 — — 20-022-105 8.36 — —
5/32 5/8 1/4 SC-13 20-003-007 16.48 — — 20-022-113 16.48 — —
3/16 5/8 1/4 SC-14 20-003-023 15.65 — — 20-022-117 15.65 20-014-064 20.00
1/4 5/8 1/4 SC-1 20-003-105 17.22 20-012-066 $17.99 20-022-121 17.22 20-014-066 17.99
5/16 3/4 1/4 SC-2 20-003-111 21.13 — — 20-022-125 21.13 20-014-068 22.05
3/8 3/4 1/4 SC-3 20-003-121 22.46 20-012-070 23.58 20-022-129 22.46 20-014-070 23.58
7/16 1 1/4 SC-4 20-003-131 32.53 — — 20-022-133 35.78 20-014-072 38.58
Shape C Shape D
1/2 1 1/4 SC-5 20-003-141 35.57 20-012-074 37.15 20-022-137 35.57 20-014-074 37.15
5/8 1 1/4 SC-6 20-003-161 35.95 — — 20-022-141 35.95 — —
3/4 1 1/4 SC-7 20-003-181 46.80 20-012-078 72.88 20-022-145 46.80 — —
“ShaPe d” Ball [MA FORD SERIES 43] [MA FORD SERIES 43]
1/8" 7/64" 1/4" SD-11 — — 20-012-090 $18.58 — — 20-014-090 $18.58
1/8 1/8 1/8 SD-42 20-004-001 $8.36 — — 20-022-151 $8.36 — —
3/32 3/32 1/8 SD-41 20-004-002 8.36 — — 20-022-155 8.36 — —
3/16 5/32 1/4 SD-14 — — 20-012-092 18.58 — — 20-014-092 18.58
"Shape a" "Shape B" 3/16 1/8 1/4 SD-14 20-004-024 11.45 — — 20-022-159 11.45 — —
CylinDriCal - CylinDriCal - 1/8 3/32 1/4 SD-11 20-004-103 14.69 — — 20-022-163 14.69 — —
Square enD Square enD 1/4 7/32 1/4 SD-1 20-004-105 15.41 20-012-094 16.68 20-022-167 15.41 20-014-094 16.68
(not enD Cut) (With enD Cut)
5/16 9/32 1/4 SD-2 — — 20-012-096 19.06 — — 20-014-096 19.06
5/16 1/4 1/4 SD-2 20-004-113 18.43 — — 20-022-171 16.75 — —
3/8 5/16 1/4 SD-3 20-004-121 18.66 20-012-098 19.41 20-022-175 18.66 20-014-098 19.41
7/16 3/8 1/4 SD-4 — — 20-012-100 22.16 — — 20-014-100 22.16
1/2 7/16 1/4 SD-5 20-004-141 24.38 — — 20-022-179 24.38 20-014-102 26.68
5/8 9/16 1/4 SD-6 20-004-161 37.88 — — 20-022-183 34.43 — —
3/4 11/16 1/4 SD-7 20-004-181 47.54 — — 20-022-187 52.29 — —
"Shape C" "Shape D" Ball
CylinDriCal - 1 15/16 1/4 SD-9 20-004-201 83.11 — — 20-022-191 83.11 — —
raDiuS enD Available In Carbide Or Steel Shanks Depending On Our Stock. *Limted Supply.
