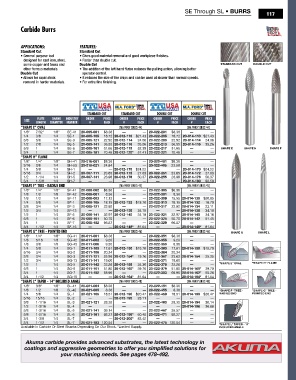

Page 119 - All Industrial Tool Supply | General Catalog

SE Through SL • BURRS
117

Carbide Burrs

APPLICATIONS: FeATureS:
Standard Cut Standard Cut
• General purpose tool • Gives good material removal and good workpiece finishes.
designed for cast iron, steel, • Faster than double cut.
some copper and brass and Double Cut Standard Cut dOuBLE Cut
other ferrous materials. • The addition of the left hand flutes reduces the pulling action, allowing better
Double Cut operator control.
• Allows for rapid stock • It reduces the size of the chips and can be used at slower than normal speeds.
removal in harder materials. • For extra fine finishing.

Standard Cut Standard Cut douBle Cut douBle Cut
Flute Shank induStry order PriCe order PriCe order PriCe order PriCe
Size
length diameter numBer # eaCh # eaCh # eaCh # eaCh
“ShaPe e” oVal [MA FORD SERIES 44] [MA FORD SERIES 44]
1/8" 7/32" 1/8" SE-41 20-005-001 $8.36 — — 20-022-201 $8.36 — —
1/4 3/8 1/4 SE-1 20-005-105 18.72 20-012-110 $21.43 20-022-205 18.72 20-014-110 $21.43
3/8 5/8 1/4 SE-3 20-005-121 22.92 20-012-114 24.06 20-022-209 22.92 20-014-114 24.06
1/2 7/8 1/4 SE-5 20-005-141 36.55 20-012-116 35.26 20-022-213 36.55 20-014-116 35.26
5/8 1 1/4 SE-6 20-005-161 31.65 20-012-118 52.39 20-022-217 31.65 — — SHaPE E SHaPE H SHaPE F
3/4 1 1/4 SE-7 20-005-181 70.46 20-012-120* 57.41 20-022-221 70.46 — —
“ShaPe h” Flame
1/8" 1/4" 1/8" SH-41 20-016-001 $8.36 — — 20-022-401 $8.36 — —
3/16 3/8 1/4 SH-53 20-016-021 24.84 — — 20-022-405 22.58 — —
1/4 5/8 1/4 SH-1 — — 20-012-170 $24.52 — — 20-014-170 $24.52
5/16 3/4 1/4 SH-2 20-007-111 23.65 20-012-172 27.63 20-022-251 23.65 20-014-172 27.63
1/2 1-1/4 1/4 SH-5 20-007-141 26.98 20-012-176 50.37 20-022-255 26.98 20-014-176 50.37
3/4 1-5/8 1/4 SH-7 — — — — — — 20-014-180 98.50
“ShaPe F” tree - radiuS end [MA FORD SERIES 45] [MA FORD SERIES 45]
1/8" 1/4" 1/8" SF-41 20-008-002 $8.36 — — 20-022-305 $8.36 — —
1/8 1/2 1/8 SF-42 20-008-001 8.36 — — 20-022-301 8.36 — —
1/8 1/2 1/4 SF-11 20-008-003 17.12 — — 20-022-309 15.55 20-014-130 $20.85
1/4 5/8 1/4 SF-1 20-008-105 18.15 20-012-132 $18.70 20-022-313 18.15 20-014-132 18.70
3/8 3/4 1/4 SF-3 20-008-121 22.92 — — 20-022-317 22.92 20-014-134 23.11
1/2 3/4 1/4 SF-13 — — 20-012-138 34.18 — — 20-014-138 34.18
1/2 1 1/4 SF-5 20-008-141 32.97 20-012-140 34.18 20-022-321 32.97 20-014-140 34.18
5/8 1 1/4 SF-6 20-008-161 50.70 — — 20-022-325 50.70 20-014-142 51.45
3/4 1 1/4 SF-7 20-008-182 66.87 — — 20-022-329 66.87 — —
3/4 1-1/2 1/4 SF-15 — — 20-012-148* 81.64 — — 20-014-148* 81.64
“ShaPe g” tree - Pointed end [MA FORD SERIES 46] [MA FORD SERIES 46] SHaPE G SHaPE L
1/8" 1/4" 1/8" SG-41 20-011-001 $8.36 — — 20-022-351 $8.36 — —
1/8 5/16 1/8 SG-42 20-011-002 9.20 — — 20-022-355 9.20 — —
1/8 3/8 1/8 SG-43 20-011-006 9.20 — — 20-022-359 8.36 — —
1/4 5/8 1/4 SG-1 20-011-105 17.81 20-012-150 $18.70 20-022-363 17.81 20-014-150 $18.70
5/16 3/4 1/4 SG-2 20-011-106 20.34 — — 20-022-364 20.34 — —
3/8 3/4 1/4 SG-3 20-011-121 25.99 20-012-154* 19.76 20-022-367 23.63 20-014-154 25.25
1/2 3/4 1/4 SG-13 20-011-141 19.00 — — 20-022-371 19.00 — —
1/2 1 1/4 SG-5 20-011-142 32.26 20-012-158 34.30 20-022-375 32.26 — — "SHaPE E" OVaL "SHaPE H" FLaME
5/8 1 1/4 SG-6 20-011-161 51.80 20-012-160* 39.70 20-022-379 51.80 20-014-160* 39.70
3/4 1 1/4 SG-7 20-011-182 68.96 — — 20-022-383 68.96 20-014-162* 55.26
3/4 1-1/2 1/4 SG-15 — — 20-012-164* 81.64 — — 20-014-164* 81.64
“ShaPe l” taPer - 14° inCluded angle [MA FORD SERIES 48] [MA FORD SERIES 48]
1/8" 3/8" 1/8" SL-41 20-021-004 $8.36 — — 20-022-451 $8.36 — —
1/8 1/2 1/8 SL-42 20-021-005 8.36 — — 20-022-455 8.36 — — "SHaPE F" trEE - "SHaPE G" trEE -
1/4 5/8 1/4 SL-1 20-021-105 18.51 20-012-190 $20.47 20-022-459 18.51 20-014-190 $20.47 radIuS End POIntEd End
5/16 15/16 1/4 SL-2 — — 20-012-192 28.11 — — — —
3/8 1-1/16 1/4 SL-3 20-021-121 28.35 — — 20-022-463 28.35 20-014-194 30.14
1/2 1-3/16 1/4 SL-4 — — — — — — 20-014-196 36.68
5/8 1-3/16 1/4 SL-5 20-021-141 39.14 — — 20-022-467 35.57 — —
5/8 1-5/16 1/4 SL-6 20-021-161 92.27 20-012-198* 60.48 20-022-471 92.27 — —
3/4 1-3/8 1/4 SL-7 — — 20-012-200* 83.42 — — — —
3/4 1-1/2 1/4 SL-7 20-021-183 120.54 — — 20-022-475 120.54 — — "SHaPE L" taPEr - 14°
Available In Carbide Or Steel Shanks Depending On Our Stock. *Limited Supply. InCLudEd anGLE

Akuma carbide provides advanced substrates, the latest technology in
coatings and aggressive geometries to offer you simplified solutions for
your machining needs. See pages 478-492.
