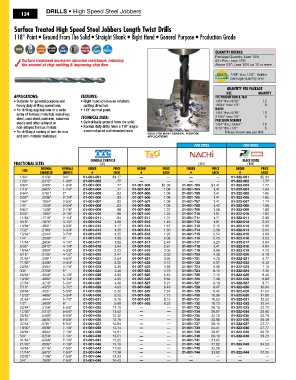

Page 136 - All Industrial Tool Supply | General Catalog

DRILLS • High Speed Steel Jobbers
134

Surface Treated High Speed Steel Jobbers Length Twist Drills
118° Point • Ground From The Solid • Straight Shank • Right Hand • General Purpose • Production Grade

QuanTiTy BreakS:
Package Quantity: Less 10%
Surface treatment increases abrasion resistance, reducing 60+ Pcs.: Less 15%
the amount of chip welding & improving chip flow Above 1/2": Less 10% on 12 or more

1/64" thru 1/32": Sold in
package quantity only.
QuanTiTy Per Package
Size QuanTiTy
APPLICATIONS: FeATureS: TTc ProDucTion & T&o
• Suitable for general purpose and • Right hand (clockwise rotation) 1/64" thru 9/32" 12
heavy duty drilling operations. cutting direction. 19/64" thru 1/2" 6
• For drilling applications of a wide • 118° normal point. nacHi
array of ferrous materials including: 1/64" thru 5/16" 10
steel, cast steel, cast iron, stainless TeChNICAL DATA: 21/64" thru 1/2" 5
PreciSion Dormer
steels and other alloyed or • Cylindrically ground from the solid. 1/64" thru 19/64" 12
non-alloyed ferrous metals • Normal duty drills have a 118° angle, 5/16" thru 1/2" 6
• For drilling a variety of non-ferrous a normal point and standard web. IDEAL FOR MANY GENERAL PURPOSE Prices shown are per drill.
and non-metallic materials. APPLICATIONS

FOR STEEL FOR STEEL

generaL PurPoSe BLack oxiDe
FracTionaL SizeS [A1] [501] [R10]
DecimaL overaLL orDer Price orDer Price orDer Price orDer Price
Size
DiameTer LengTH # eacH # eacH # eacH # eacH
1/64" .0156" 3/4" 01-001-001 $1.17 — — — — 01-322-001 $2.94
1/32" .0312" 1-3/8" 01-001-002 .77 — — — — 01-322-002 1.77
3/64" .0469" 1-3/4" 01-001-003 .77 01-007-503 $1.08 01-001-703 $1.41 01-322-003 1.77
1/16" .0625" 1-7/8" 01-001-004 .77 01-007-504 1.08 01-001-704 1.41 01-322-004 1.64
5/64" .0781" 2" 01-001-005 .83 01-007-505 1.08 01-001-705 1.41 01-322-005 1.65
3/32" .0938" 2-1/4" 01-001-006 .83 01-007-506 1.08 01-001-706 1.41 01-322-006 1.65
7/64" .1094" 2-5/8" 01-001-007 .83 01-007-507 1.08 01-001-707 1.41 01-322-007 1.74
1/8" .1250" 2-3/4" 01-001-008 .83 01-007-508 1.08 01-001-708 1.42 01-322-008 1.69
9/64" .1406" 2-7/8" 01-001-009 .88 01-007-509 1.22 01-001-709 1.58 01-322-009 1.88
5/32" .1562" 3-1/8" 01-001-010 .88 01-007-510 1.25 01-001-710 1.61 01-322-010 1.92
11/64" .1719" 3-1/4" 01-001-011 .94 01-007-511 1.31 01-001-711 1.71 01-322-011 2.09
3/16" .1875" 3-1/2" 01-001-012 1.06 01-007-512 1.46 01-001-712 1.91 01-322-012 2.33
13/64" .2031" 3-5/8" 01-001-013 1.17 01-007-513 1.67 01-001-713 2.15 01-322-013 2.56
7/32" .2188" 3-3/4" 01-001-014 1.35 01-007-514 1.80 01-001-714 2.36 01-322-014 2.84
15/64" .2344" 3-7/8" 01-001-015 1.35 01-007-515 1.95 01-001-715 2.54 01-322-015 3.09
1/4" .2500" 4" 01-001-016 1.53 01-007-516 2.09 01-001-716 2.73 01-322-016 3.22
17/64" .2656" 4-1/8" 01-001-017 1.82 01-007-517 2.48 01-001-717 3.25 01-322-017 3.94
9/32" .2812" 4-1/4" 01-001-018 1.94 01-007-518 2.61 01-001-718 3.41 01-322-018 4.04
19/64" .2969" 4-3/8" 01-001-019 2.23 01-007-519 3.05 01-001-719 3.98 01-322-019 4.70
5/16" .3125" 4-1/2" 01-001-020 2.47 01-007-520 3.30 01-001-720 4.29 01-322-020 5.18
21/64" .3281" 4-5/8" 01-001-021 2.64 01-007-521 3.66 01-001-721 4.76 01-322-021 5.77
11/32" .3438" 4-3/4" 01-001-022 3.05 01-007-522 4.12 01-001-722 5.37 01-322-022 6.42
23/64" .3594" 4-7/8" 01-001-023 3.35 01-007-523 4.58 01-001-723 5.99 01-322-023 7.19
3/8" .3750" 5" 01-001-024 3.46 01-007-524 4.75 01-001-724 6.18 01-322-024 7.35
25/64" .3906" 5-1/8" 01-001-025 3.99 01-007-525 5.46 01-001-725 7.12 01-322-025 8.45
13/32" .4062" 5-1/4" 01-001-026 4.05 01-007-526 5.64 01-001-726 7.36 01-322-026 8.68
27/64" .4219" 5-3/8" 01-001-027 4.46 01-007-527 6.21 01-001-727 8.10 01-322-027 9.71
7/16" .4375" 5-1/2" 01-001-028 4.63 01-007-528 6.49 01-001-728 8.47 01-322-028 10.04
29/64" .4531" 5-5/8" 01-001-029 5.22 01-007-529 7.24 01-001-729 9.45 01-322-029 11.24
15/32" .4688" 5-3/4" 01-001-030 5.52 01-007-530 7.73 01-001-730 10.06 01-322-030 11.86
31/64" .4844" 5-7/8" 01-001-031 5.75 01-007-531 8.15 01-001-731 10.63 01-322-031 12.50
1/2" .5000" 6" 01-001-032 5.80 01-007-532 8.22 01-001-732 10.73 01-322-032 12.54
33/64" .5156" 6-5/8" 01-001-033 11.15 — — 01-001-733 20.10 01-322-033 22.70
17/32" .5312" 6-5/8" 01-001-034 11.62 — — 01-001-734 20.97 01-322-034 23.40
35/64" .5469" 6-5/8" 01-001-035 12.32 — — 01-001-735 22.75 01-322-035 25.79
9/16" .5625" 6-5/8" 01-001-036 12.79 — — 01-001-736 23.66 01-322-036 26.48
37/64" .5781" 6-5/8" 01-001-037 12.84 — — 01-001-737 26.18 01-322-037 27.77
19/32" .5938" 7-1/8" 01-001-038 13.14 — — 01-001-738 24.41 01-322-038 27.77
39/64" .6094" 7-1/8" 01-001-039 14.61 — — 01-001-739 29.67 01-322-039 29.76
5/8" .6250" 7-1/8" 01-001-040 15.01 — — 01-001-740 26.19 01-322-040 29.23
41/64" .6406" 7-1/8" 01-001-041 15.25 — — 01-001-741 31.65 — —
21/32" .6562" 7-1/8" 01-001-042 15.19 — — 01-001-742 27.62 01-322-042 34.53
43/64' .6719" 7-5/8" 01-001-043 17.42 — — 01-001-743 32.59 — —
11/16" .6875" 7-5/8" 01-001-044 17.36 — — 01-001-744 31.82 01-322-044 37.25
23/32" .7188" 7-5/8" 01-001-046 21.23 — — — — — —
3/4" .7500" 7-5/8" 01-001-048 24.42 — — — — — —
