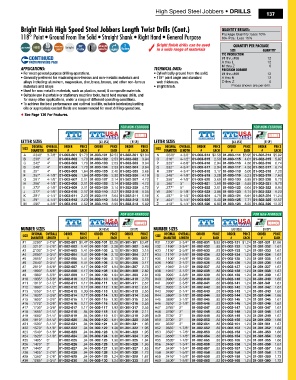

Page 139 - All Industrial Tool Supply | General Catalog

High Speed Steel Jobbers • DRILLS
137

Bright Finish High Speed Steel Jobbers Length Twist Drills (Cont.) QuanTiTy BreakS:
118° Point • Ground From The Solid • Straight Shank • Right Hand • General Purpose Package Quantity: Less 10%
60+ Pcs.: Less 15%
Bright finish drills can be used QuanTiTy Per PaCkage
in a wide range of materials Size QuanTiTy
TTC ProDuCTion
#1 thru #60 12
A thru L 12
M thru Z 6
APPLICATIONS: TeChNICAL DATA: PreCiSion Dormer
• For most general purpose drilling operations. • Cylindrically ground from the solid. #1 thru #60 12
• Generally preferred for machining non-ferrous and non-metallic materials and • 118° point angle and standard A thru N 12
alloys including: aluminum, magnesium, zinc, brass, bronze, and other non-ferrous web thickness. O thru Z 6
materials and alloys • Bright finish. Prices shown are per drill.
• Used for non-metallic materials, such as plastics, wood, & composite materials.
• Suitable use in portable or stationary machine tools, hand held manual drills, and
for many other applications, under a range of different operating conditions.
• To achieve the best performance and optimal tool life, suitable lubricating/cutting
oils or appropriate coolant fluids are recommended for most drilling operations.
♦ See Page 136 For Features.

FOR NON-FERROUS FOR NON-FERROUS

LeTTer SizeS [A3-USA] [R15P] LeTTer SizeS [A3-USA] [R15P]
DeCimaL overaLL orDer PriCe orDer PriCe orDer PriCe DeCimaL overaLL orDer PriCe orDer PriCe orDer PriCe
Size Size
DiameTer LengTH # eaCH # eaCH # eaCH DiameTer LengTH # eaCH # eaCH # eaCH
A .2340" 3-7/8" 01-003-601 $1.70 01-003-101 $2.53 01-302-301 $3.94 N .3020" 4-3/8" 01-003-614 $2.58 01-003-114 $3.95 01-302-314 $5.92
B .238" 4" 01-003-602 1.70 01-003-102 2.53 01-302-302 3.94 O .316" 4-1/2" 01-003-615 2.58 01-003-115 4.01 01-302-315 5.97
C .242" 4" 01-003-603 1.70 01-003-103 2.53 01-302-303 3.94 P .323" 4-5/8" 01-003-616 2.94 01-003-116 4.56 01-302-316 6.74
D .246" 4" 01-003-604 1.70 01-003-104 2.53 01-302-304 3.94 Q .332" 4-3/4" 01-003-617 2.94 01-003-117 4.56 01-302-317 6.74
E .25" 4" 01-003-605 1.64 01-003-105 2.40 01-302-305 3.66 R .339" 4-3/4" 01-003-618 3.17 01-003-118 5.00 01-302-318 7.20
F .257" 4-1/8" 01-003-606 1.94 01-003-106 2.90 01-302-306 4.19 S .348" 4-7/8" 01-003-619 3.28 01-003-119 5.23 01-302-319 7.63
G .261" 4-1/8" 01-003-607 2.11 01-003-107 3.14 01-302-307 4.72 T .358" 4-7/8" 01-003-620 3.69 01-003-120 5.85 01-302-320 8.70
H .266" 4-1/8" 01-003-608 2.11 01-003-108 3.14 01-302-308 4.72 U .368" 5" 01-003-621 3.69 01-003-121 5.85 01-302-321 8.70
I .272" 4-1/8" 01-003-609 2.11 01-003-109 3.14 01-302-309 4.72 V .377" 5" 01-003-622 3.81 01-003-122 6.04 01-302-322 8.94
J .277" 4-1/8" 01-003-610 2.17 01-003-110 3.27 01-302-310 5.05 W .386" 5-1/8" 01-003-623 3.88 01-003-123 5.74 01-302-323 9.23
K .281" 4-1/4" 01-003-611 2.23 01-003-111 3.64 01-302-311 5.58 X .397" 5-1/8" 01-003-624 4.75 01-003-124 6.91 01-302-324 11.24
L .29" 4-1/4" 01-003-612 2.23 01-003-112 3.64 01-302-312 5.58 Y .404" 5-1/4" 01-003-625 5.40 01-003-125 7.71 01-302-325 12.57
M .295" 4-3/8" 01-003-613 2.52 01-003-113 3.95 01-302-313 5.92 Z .413" 5-1/4" 01-003-626 6.80 01-003-126 8.20 01-302-326 13.37

FOR NON-FERROUS FOR NON-FERROUS

numBer SizeS [A2-USA] [R18P] numBer SizeS [A2-USA] [R18P]
DeCimaL overaLL orDer PriCe orDer PriCe orDer PriCe DeCimaL overaLL orDer PriCe orDer PriCe orDer PriCe
Size Size
DiameTer LengTH # eaCH # eaCH # eaCH DiameTer LengTH # eaCH # eaCH # eaCH
#1 .2280" 3-7/8" 01-002-601 $1.47 01-002-101 $2.28 01-301-301 $3.47 #31 .1200" 2-3/4" 01-002-631 $.83 01-002-131 $1.24 01-301-331 $1.66
#2 .2210" 3-7/8" 01-002-602 1.47 01-002-102 2.28 01-301-302 3.49 #32 .1160" 2-3/4" 01-002-632 .83 01-002-132 1.24 01-301-332 1.67
#3 .2130" 3-3/4" 01-002-603 1.41 01-002-103 2.10 01-301-303 3.15 #33 .1130" 2-5/8" 01-002-633 .83 01-002-133 1.24 01-301-333 1.67
#4 .2090" 3-3/4" 01-002-604 1.41 01-002-104 2.10 01-301-304 3.17 #34 .1110" 2-5/8" 01-002-634 .83 01-002-134 1.24 01-301-334 1.67
#5 .2055" 3-3/4" 01-002-605 1.41 01-002-105 2.10 01-301-305 3.17 #35 .1100" 2-5/8" 01-002-635 .83 01-002-135 1.24 01-301-335 1.67
#6 .2040" 3-3/4" 01-002-606 1.41 01-002-106 2.10 01-301-306 3.17 #36 .1065" 2-1/2" 01-002-636 .83 01-002-136 1.24 01-301-336 1.65
#7 .2010" 3-5/8" 01-002-607 1.17 01-002-107 1.84 01-301-307 2.73 #37 .1040" 2-1/2" 01-002-637 .83 01-002-137 1.24 01-301-337 1.67
#8 .1990" 3-5/8" 01-002-608 1.17 01-002-108 1.84 01-301-308 2.82 #38 .1015" 2-1/2" 01-002-638 .83 01-002-138 1.24 01-301-338 1.67
#9 .1960" 3-5/8" 01-002-609 1.17 01-002-109 1.84 01-301-309 2.81 #39 .0995" 2-3/8" 01-002-639 .83 01-002-139 1.24 01-301-339 1.67
#10 .1935" 3-5/8" 01-002-610 1.17 01-002-110 1.98 01-301-310 2.76 #40 .0980" 2-3/8" 01-002-640 .83 01-002-140 1.24 01-301-340 1.65
#11 .1910" 3-1/2" 01-002-611 1.17 01-002-111 1.92 01-301-311 2.57 #41 .0960" 2-3/8" 01-002-641 .83 01-002-141 1.24 01-301-341 1.67
#12 .1890" 3-1/2" 01-002-612 1.17 01-002-112 1.92 01-301-312 2.61 #42 .0935" 2-1/4" 01-002-642 .83 01-002-142 1.24 01-301-342 1.67
#13 .1850" 3-1/2" 01-002-613 1.30 01-002-113 1.92 01-301-313 2.55 #43 .0890" 2-1/4" 01-002-643 .83 01-002-143 1.24 01-301-343 1.65
#14 .1820" 3-3/8" 01-002-614 1.17 01-002-114 1.92 01-301-314 2.55 #44 .0860" 2-1/8" 01-002-644 .83 01-002-144 1.24 01-301-344 1.65
#15 .1800" 3-3/8" 01-002-615 1.17 01-002-115 1.92 01-301-315 2.55 #45 .0820" 2-1/8" 01-002-645 .83 01-002-145 1.24 01-301-345 1.67
#16 .1770" 3-3/8" 01-002-616 1.17 01-002-116 1.92 01-301-316 2.55 #46 .0810" 2-1/8" 01-002-646 .83 01-002-146 1.24 01-301-346 1.67
#17 .1730" 3-3/8" 01-002-617 1.17 01-002-117 1.92 01-301-317 2.55 #47 .0785" 2" 01-002-647 .83 01-002-147 1.24 01-301-347 1.67
#18 .1695" 3-1/4" 01-002-618 .94 01-002-118 1.61 01-301-318 2.11 #48 .0760" 2" 01-002-648 .83 01-002-148 1.24 01-301-348 1.67
#19 .1660" 3-1/4" 01-002-619 .94 01-002-119 1.61 01-301-319 2.09 #49 .0730" 2" 01-002-649 .83 01-002-149 1.24 01-301-349 1.67
#20 .1610" 3-1/4" 01-002-620 .94 01-002-120 1.61 01-301-320 2.08 #50 .0700" 2" 01-002-650 .83 01-002-150 1.24 01-301-350 1.66
#21 .1590" 3-1/4" 01-002-621 .94 01-002-121 1.36 01-301-321 1.93 #51 .0670" 2" 01-002-651 .83 01-002-151 1.24 01-301-351 1.67
#22 .1570" 3-1/8" 01-002-622 .94 01-002-122 1.36 01-301-322 1.95 #52 .0635" 1-7/8" 01-002-652 .83 01-002-152 1.24 01-301-352 1.66
#23 .1540" 3-1/8" 01-002-623 .94 01-002-123 1.36 01-301-323 1.95 #53 .0595" 1-7/8" 01-002-653 .83 01-002-153 1.24 01-301-353 1.66
#24 .1520" 3-1/8" 01-002-624 .94 01-002-124 1.36 01-301-324 1.95 #54 .0550" 1-7/8" 01-002-654 .83 01-002-154 1.24 01-301-354 1.66
#25 .1495" 3" 01-002-625 .94 01-002-125 1.30 01-301-325 1.84 #55 .0520" 1-7/8" 01-002-655 .83 01-002-155 1.24 01-301-355 1.66
#26 .1470" 3" 01-002-626 .94 01-002-126 1.30 01-301-326 1.86 #56 .0460" 1-3/4" 01-002-656 .83 01-002-156 1.24 01-301-356 1.67
#27 .1440" 3" 01-002-627 .94 01-002-127 1.30 01-301-327 1.85 #57 .0430" 1-3/4" 01-002-657 .83 01-002-157 1.24 01-301-357 1.66
#28 .1405" 2-7/8" 01-002-628 .94 01-002-128 1.24 01-301-328 1.73 #58 .0420" 1-5/8" 01-002-658 .83 01-002-158 1.24 01-301-358 1.73
#29 .1360" 2-7/8" 01-002-629 .94 01-002-129 1.24 01-301-329 1.67 #59 .0410" 1-5/8" 01-002-659 .83 01-002-159 1.24 01-301-359 1.73
#30 .1285" 2-3/4" 01-002-630 .94 01-002-130 1.24 01-301-330 1.67 #60 .0400" 1-5/8" 01-002-660 .83 01-002-160 1.24 01-301-360 1.72
