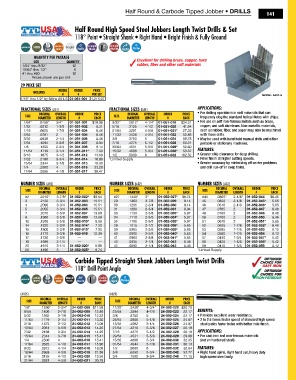

Page 143 - All Industrial Tool Supply | General Catalog

Half Round & Carbode Tipped Jobber • DRILLS
141

Half Round High Speed Steel Jobbers Length Twist Drills & Set
118° Point • Straight Shank • Right Hand • Bright Finish & Fully Ground

QuanTiTy PeR Package
Size QuanTiTy Excellent for drilling brass, copper, hard
1/64" thru 9/32" 12 rubber, fiber and other soft materials
19/64" thru 1/2" 6
#1 thru #60 12
Prices shown are per drill.
29 Piece SeT
MoDeL oRDeR PRice
incLuDeS
# # PeR SeT model #A51-S
1/16" thru 1/2" by 64ths A51-S 01-051-901 $1,215.97
fRacTionaL SizeS [A51] fRacTionaL SizeS [A51] APPLICATIONS:
DeciMaL oveRaLL oRDeR PRice DeciMaL oveRaLL oRDeR PRice • For drilling operations in soft materials that can
Size Size frequently clog the standard helical flutes with chips.
DiaMeTeR LengTH # eacH DiaMeTeR LengTH # eacH
1/64" .0156" 3/4" 01-051-001 $10.96 9/32" .2812" 4-1/4" 01-051-018 $34.31 • For use on soft non-ferrous metals such as brass,
1/32 .0312 1-3/8 01-051-002 8.31 5/16 .3125 4-1/2 01-051-020 41.94 copper, and soft aluminum. Non-metallic materials,
1/16 .0625 1-7/8 01-051-004 8.46 21/64 .3281 4-5/8 01-051-021* 27.35 such as rubber, fiber, and paper may also be machined
5/64 .0781 2 01-051-005 8.46 11/32 .3438 4-3/4 01-051-022 50.88 with these drills.
3/32 .0938 2-1/4 01-051-006 8.46 3/8 .3750 5 01-051-024 59.78 • May be used with hand held manual drills and either
7/64 .1094 2-5/8 01-051-007 8.94 7/16 .4375 5-1/2 01-051-028 80.31 portable or stationary machines.
1/8 .1250 2-3/4 01-051-008 9.14 29/64 .4531 5-5/8 01-051-029* 50.60 FeATureS:
11/64 .1719 3-1/4 01-051-011* 7.30 15/32 .4688 5-3/4 01-051-030* 53.87
3/16 .1875 3-1/2 01-051-012 13.69 1/2 .5000 6 01-051-032 102.52 • Greater chip clearance for deep drilling.
7/32 .2188 3-3/4 01-051-014 16.89 *Limited Supply. • Finer finish at higher cutting speeds.
15/64 .2344 3-7/8 01-051-015 18.33 • Greater accuracy by minimizing off center problems
1/4 .2500 4 01-051-016 33.28 and drill run-off in deep holes.
17/64 .2656 4-1/8 01-051-017 30.47

nuMbeR SizeS [A52] nuMbeR SizeS [A52] nuMbeR SizeS [A52]
DeciMaL oveRaLL oRDeR PRice DeciMaL oveRaLL oRDeR PRice DeciMaL oveRaLL oRDeR PRice
Size Size Size
DiaMeTeR LengTH # eacH DiaMeTeR LengTH # eacH DiaMeTeR LengTH # eacH
#2 .2210" 3-7/8" 01-052-002* $9.94 #27 .1440" 3" 01-052-027* $6.74 #44 .0860" 2-1/8" 01-052-044 $8.46
3 .2130 3-3/4 01-052-003 15.51 29 .1360 2-7/8 01-052-029 9.14 45 .0820 2-1/8 01-052-045* 5.65
4 .2090 3-3/4 01-052-004 15.51 30 .1285 2-3/4 01-052-030 9.14 46 .0810 2-1/8 01-052-046* 5.65
5 .2055 3-3/4 01-052-005 15.51 31 .1200 2-3/4 01-052-031 8.94 47 .0785 2 01-052-047 8.46
7 .2010 3-5/8 01-052-007 13.69 33 .1130 2-5/8 01-052-033* 5.97 48 .0760 2 01-052-048 8.46
9 .1960 3-5/8 01-052-009 13.69 34 .1110 2-5/8 01-052-034* 5.97 50 .0700 2 01-052-050 8.46
10 .1935 3-5/8 01-052-010* 8.06 35 .1100 2-5/8 01-052-035* 5.97 51 .0670 2 01-052-051* 5.65
14 .1820 3-3/8 01-052-014* 7.30 38 .1015 2-1/2 01-052-038* 5.65 52 .0635 1-7/8 01-052-052* 8.46
15 .1800 3-3/8 01-052-015* 7.30 39 .0995 2-3/8 01-052-039* 5.65 53 .0595 1-7/8 01-052-053 8.12
16 .1770 3-3/8 01-052-016 12.39 40 .0980 2-3/8 01-052-040* 5.65 54 .0550 1-7/8 01-052-054 8.12
17 .1730 3-3/8 — — 41 .0960 2-3/8 01-052-041* 5.65 57 .0430 1-3/4 01-052-057* 5.42
18 .1695 3-1/4 — — 42 .0935 2-1/4 01-052-042 8.46 58 .0420 1-5/8 01-052-058* 5.42
20 .1610 3-1/4 01-052-020* 6.86 43 .0890 2-1/4 01-052-043 8.46 59 .0410 1-5/8 01-052-059 8.12
25 .1495 3 01-052-025* 6.74 *Limited Supply.
carbide Tipped Straight Shank Jobbers Length Twist Drills
118° Drill Point Angle

[A325] [A325]
DeciMaL oveRaLL oRDeR PRice DeciMaL oveRaLL oRDeR PRice
Size Size
DiaMeTeR LengTH # eacH DiaMeTeR LengTH # eacH
1/8" .1250" 2-3/4" 24-002-008 $11.58 11/32" .3438" 4-3/4" 24-002-022 $20.79
9/64 .1406 2-7/8 24-002-009 12.46 23/64 .3594 4-7/8 24-002-023 22.17 BeNeFITS:
5/32 .1562 3-1/8 24-002-010 12.22 3/8 .3750 5 24-002-024 22.17 • Provides excellent wear resistance.
11/64 .1719 3-1/4 24-002-011 13.30 25/64 .3906 5-1/8 24-002-025 24.07 • 2 to 2.5 times faster speed of standard high speed
3/16 .1875 3-1/2 24-002-012 13.06 13/32 .4062 5-1/4 24-002-026 24.07 steel yields faster holes with better hole finish.
13/64 .2031 3-5/8 24-002-013 14.25 27/64 .4219 5-3/8 24-002-027 26.18
7/32 .2188 3-3/4 24-002-014 14.25 7/16 .4375 5-1/2 24-002-028 26.18 APPLICATIONS:
15/64 .2344 3-7/8 24-002-015 15.41 29/64 .4531 5-5/8 24-002-029 29.98 • For cast iron and non-ferrous materials
1/4 .2500 4 24-002-016 15.41 15/32 .4688 5-3/4 24-002-030 32.35 (not on hardened steel).
17/64 .2625 4-1/8 24-002-017 15.90 31/64 .4844 5-7/8 24-002-031 36.13
9/32 .2812 4-1/4 24-002-018 18.09 1/2 .5000 6 24-002-032 32.84 FeATureS:
19/64 .2969 4-3/8 24-002-019 21.96 5/8 .6250 8-3/4 24-002-040 57.77 • Right hand spiral, right hand cut, heavy duty
5/16 .3125 4-1/2 24-002-020 19.56 3/4 .7500 9-3/4 24-002-048 71.15 high speed steel body.
21/64 .3281 4-5/8 24-002-021 20.79
