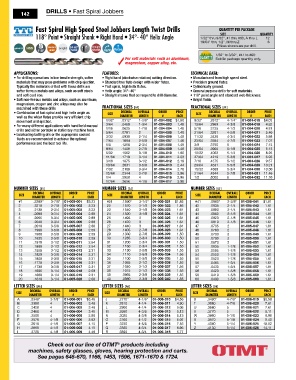

DRILLS • Fast Spiral Jobbers
142

Fast Spiral High Speed Steel Jobbers Length Twist Drills QuanTiTy Per Package
Size
118° Point • Straight Shank • Right Hand • 34°- 40° Helix Angle 1/32" thru 9/32", #1 thru #60, A thru L QuanTiTy
12
19/64" thru 1/2", M thru Z 6
Prices shown are per drill.
1/32" to 3/32", #41 to #60:
For soft materials such as aluminum, Sold in package quantity only.
magnesium, copper alloy, etc.
APPLICATIONS: FeATureS: TeChNICAL DATA:
• For drilling operations in low tensile strength, softer • Right hand (clockwise rotation) cutting direction. • Manufactured from high speed steel.
materials that may pose problems with chip ejection. • Standard two flute design with wider flutes. • Precision ground flutes.
Typically the materials drilled with these drills are • Fast spiral, high helix flutes. • Cylindrically ground.
softer ferrous metals and alloys, such as soft steels • Helix angle: 34°- 40° • General purpose drills for soft materials.
and soft cast iron. • Straight shanks that correspond to drill diameter. • 118° point angle and standard web thickness.
• Soft non-ferrous metals and alloys, such as aluminum, • Bright finish.
magnesium, copper and zinc alloys may also be
machined with these drills FracTiOnaL SizeS [A4] FracTiOnaL SizeS [A4]
• Combination of fast spiral and high helix angle as Size DecimaL OveraLL OrDer Price Size DecimaL OveraLL OrDer Price
well as the wider flutes provide very efficient chip DiameTer LengTH # eacH DiameTer LengTH # eacH
movement and ejection. 1/32" .0312" 1-3/8" 01-004-002 $1.60 9/32" .2812" 4-1/4" 01-004-018 $4.03
• For many different applications with hand held manual 3/64 .0469 1-3/4 01-004-003 1.48 19/64 .2969 4-3/8 01-004-019 4.52
drills and either portable or stationary machine tools. 1/16 .0625 1-7/8 01-004-004 1.48 5/16 .3125 4-1/2 01-004-020 4.81
• Lubricating/cutting oils or the appropriate coolant 5/64 .0781 2 01-004-005 1.48 21/64 .3281 4-5/8 01-004-021 5.40
fluids are recommended to achieve the optimal 3/32 .0938 2-1/4 01-004-006 1.48 11/32 .3438 4-3/4 01-004-022 5.88
01-004-007
01-004-023
7/64
2-5/8
.1094
1.48
23/64
.3594
4-7/8
7.07
performance and the best tool life. 1/8 .1250 2-3/4 01-004-008 1.48 3/8 .3750 5 01-004-024 7.13
9/64 .1406 2-7/8 01-004-009 1.48 25/64 .3906 5-1/8 01-004-025 8.13
5/32 .1562 3-1/8 01-004-010 1.60 13/32 .4062 5-1/4 01-004-026 8.25
11/64 .1719 3-1/4 01-004-011 2.03 27/64 .4219 5-3/8 01-004-027 6.95
3/16 .1875 3-1/2 01-004-012 2.19 7/16 .4375 5-1/2 01-004-028 9.57
13/64 .2031 3-5/8 01-004-013 2.44 29/64 .4531 5-5/8 01-004-029 10.21
7/32 .2188 3-3/4 01-004-014 2.78 15/32 .4688 5-3/4 01-004-030 10.50
15/64 .2344 3-7/8 01-004-015 2.96 31/64 .4844 5-7/8 01-004-031 11.46
1/4 .2500 4 01-004-016 2.96 1/2 .5000 6 01-004-032 11.10
17/64 .2656 4-1/8 01-004-017 3.98
number SizeS [A5] number SizeS [A5] number SizeS [A5]
DecimaL OveraLL OrDer Price DecimaL OveraLL OrDer Price DecimaL OveraLL OrDer Price
Size Size Size
DiameTer LengTH # eacH DiameTer LengTH # eacH DiameTer LengTH # eacH
#1 .2280" 3-7/8" 01-005-001 $3.23 #21 .1590" 3-1/4" 01-005-021 $1.85 #41 .0960" 2-3/8" 01-005-041 $1.61
2 .2210 3-7/8 01-005-002 3.23 22 .1570 3-1/8 01-005-022 1.85 42 .0935 2-1/4 01-005-042 1.61
3 .2130 3-3/4 01-005-003 3.23 23 .1540 3-1/8 01-005-023 1.61 43 .0890 2-1/4 01-005-043 1.61
4 .2090 3-3/4 01-005-004 2.88 24 .1520 3-1/8 01-005-024 1.61 44 .0860 2-1/8 01-005-044 1.61
5 .2055 3-3/4 01-005-005 2.88 25 .1495 3 01-005-025 1.61 45 .0820 2-1/8 01-005-045 1.61
6 .2040 3-3/4 01-005-006 2.88 26 .1470 3 01-005-026 1.61 46 .0810 2-1/8 01-005-046 1.61
7 .2010 3-5/8 01-005-007 2.88 27 .1440 3 01-005-027 1.61 47 .0785 2 01-005-047 1.61
8 .1990 3-5/8 01-005-008 2.59 28 .1405 2-7/8 01-005-028 1.61 48 .0760 2 01-005-048 1.61
9 .1960 3-5/8 01-005-009 2.59 29 .1360 2-7/8 01-005-029 1.50 49 .0730 2 01-005-049 1.61
10 .1935 3-5/8 01-005-010 2.59 30 .1285 2-3/4 01-005-030 1.50 50 .0700 2 01-005-050 1.61
11 .1910 3-1/2 01-005-011 2.54 31 .1200 2-3/4 01-005-031 1.50 51 .0670 2 01-005-051 1.61
12 .1890 3-1/2 01-005-012 2.54 32 .1160 2-3/4 01-005-032 1.55 52 .0635 1-7/8 01-005-052 1.61
13 .1850 3-1/2 01-005-013 2.31 33 .1130 2-5/8 01-005-033 1.55 53 .0595 1-7/8 01-005-053 1.61
14 .1820 3-3/8 01-005-014 2.31 34 .1110 2-5/8 01-005-034 1.55 54 .0550 1-7/8 01-005-054 1.61
15 .1800 3-3/8 01-005-015 2.31 35 .1100 2-5/8 01-005-035 1.55 55 .0520 1-7/8 01-005-055 1.61
16 .1770 3-3/8 01-005-016 2.31 36 .1065 2-1/2 01-005-036 1.55 56 .0465 1-3/4 01-005-056 1.61
17 .1730 3-3/8 01-005-017 2.31 37 .1040 2-1/2 01-005-037 1.55 57 .0430 1-3/4 01-005-057 1.61
18 .1695 3-1/4 01-005-018 2.08 38 .1015 2-1/2 01-005-038 1.55 58 .0420 1-5/8 01-005-058 1.61
19 .1660 3-1/4 01-005-019 2.31 39 .0995 2-3/8 01-005-039 1.55 59 .0410 1-5/8 01-005-059 1.61
20 .1610 3-1/4 01-005-020 2.08 40 .0980 2-3/8 01-005-040 1.55 60 .0400 1-5/8 01-005-060 1.61
LeTTer SizeS [A6] LeTTer SizeS [A6] LeTTer SizeS [A6]
DecimaL OveraLL OrDer Price DecimaL OveraLL OrDer Price DecimaL OveraLL OrDer Price
Size Size Size
DiameTer LengTH # eacH DiameTer LengTH # eacH DiameTer LengTH # eacH
A .2340" 3-7/8" 01-006-001 $3.46 J .2770" 4-1/8" 01-006-010 $4.56 S .3480" 4-7/8" 01-006-019 $8.58
B .2380 4 01-006-002 3.46 K .2810 4-1/4 01-006-011 4.90 T .3580 4-7/8 01-006-020 7.61
C .2420 4 01-006-003 3.46 L .2900 4-1/4 01-006-012 5.05 U .3680 5 01-006-021 7.61
D .2460 4 01-006-004 3.46 M .2950 4-3/8 01-006-013 5.13 V .3770 5 01-006-022 8.11
E .2500 4 01-006-005 2.88 N .3020 4-3/8 01-006-014 5.13 W .3860 5-1/8 01-006-023 9.96
F .2570 4-1/8 01-006-006 3.92 O .3160 4-1/2 01-006-015 6.07 X .3970 5-1/8 01-006-024 9.40
G .2610 4-1/8 01-006-007 4.15 P .3230 4-5/8 01-006-016 7.55 Y .4040 5-1/4 01-006-025 10.82
H .2660 4-1/8 01-006-008 4.15 Q .3320 4-3/4 01-006-017 6.96 Z .4130 5-1/4 01-006-026 14.11
I .2720 4-1/8 01-006-009 4.46 R .3390 4-3/4 01-006-018 5.77
Check out our line of OTMT products including
®
machines, safety glasses, gloves, hearing protection and carts.
See pages 646-670, 1166, 1453, 1596, 1671-1670 & 1724.
