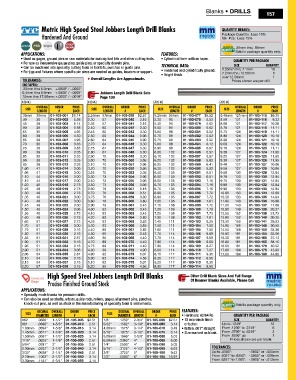

Page 159 - All Industrial Tool Supply | General Catalog

Blanks • DRILLS
157

Metric High Speed Steel Jobbers Length Drill Blanks QuanTiTy BreakS:
Hardened And Ground Package Quantity: Less 10%
60+ Pcs.: Less 15%

.35mm thru .95mm:
Sold in package quantity only.
APPLICATIONS: FeATureS:
• Used as gages, ground pins or raw materials for making tool bits and other cutting tools. • Cylindrical form with no taper. QuanTiTy per package
• For use as inexpensive gauge pins, guide pins, or specialty dowels pins.
Size
• Can be machined into specialty cutting tools or tool bits, punches or guide pins. TeChNICAL DATA: 0.35mm thru 7.1mm QuanTiTy
10
• For jigs and fixtures where specific pin sizes are needed as guides, locators or support. • Hardened and cylindrically ground. 7.2mm thru 12.50mm 5
• Bright finish. over 12.50mm 1
ToLeranceS: ♦ Overall Lengths Are Approximate. Prices shown are per drill.
(no Taper):
.35mm thru 6.3mm: +.0000" / -.0005"
6.4mm thru 9.9mm: +.0000" / -.0009" Jobbers Length Drill Blank Sets
10mm thru 17.50mm: +.0000" / -.0010" Page 130
[A20-M] [A20-M] [A20-M] [A20-M]
overaLL orDer price overaLL orDer price overaLL orDer price overaLL orDer price
Size Size Size Size
LengTH # eacH LengTH # eacH LengTH # eacH LengTH # eacH
.35mm 38mm 01-103-001 $6.14 2.25mm 57mm 01-103-039 $2.87 5.25mm 95mm 01-103-077 $5.52 8.40mm 121mm 01-103-115 $9.35
.40 38 01-103-002 5.58 2.30 57 01-103-040 3.16 5.30 95 01-103-078 5.52 8.50 121 01-103-116 9.33
.45 38 01-103-003 6.14 2.35 57 01-103-041 3.16 5.40 95 01-103-079 5.02 8.60 121 01-103-117 10.26
.50 38 01-103-004 5.58 2.40 60 01-103-042 3.30 5.50 95 01-103-080 5.02 8.70 121 01-103-118 11.11
.55 38 01-103-005 4.95 2.45 60 01-103-043 3.30 5.60 98 01-103-081 5.52 8.75 124 01-103-119 11.11
.60 38 01-103-006 4.50 2.50 60 01-103-044 3.06 5.70 98 01-103-082 5.52 8.80 124 01-103-120 10.10
.65 38 01-103-007 4.95 2.60 64 01-103-045 3.00 5.75 98 01-103-083 5.52 8.90 124 01-103-121 10.10
.70 38 01-103-008 3.83 2.70 64 01-103-046 3.30 5.80 98 01-103-084 6.12 9.00 124 01-103-122 10.10
.75 38 01-103-009 3.83 2.75 67 01-103-047 3.30 5.90 98 01-103-085 5.57 9.10 124 01-103-123 11.11
.80 38 01-103-010 3.35 2.80 67 01-103-048 3.30 6.00 102 01-103-086 5.57 9.20 127 01-103-124 11.95
.85 38 01-103-011 3.35 2.90 70 01-103-049 3.30 6.10 102 01-103-087 5.57 9.25 127 01-103-125 11.95
.90 38 01-103-012 3.35 3.00 70 01-103-050 3.06 6.20 102 01-103-088 5.82 9.30 127 01-103-126 11.95
.95 38 01-103-013 3.36 3.10 70 01-103-051 3.06 6.25 102 01-103-089 6.41 9.40 127 01-103-127 10.86
1.00 41 01-103-014 3.06 3.20 70 01-103-052 3.06 6.30 102 01-103-090 5.82 9.50 127 01-103-128 10.86
1.05 41 01-103-015 3.00 3.25 70 01-103-053 3.36 6.40 105 01-103-091 6.51 9.60 130 01-103-129 12.84
1.10 44 01-103-016 3.00 3.30 73 01-103-054 3.06 6.50 105 01-103-092 6.51 9.70 130 01-103-130 12.84
1.15 44 01-103-017 3.00 3.40 73 01-103-055 3.06 6.60 105 01-103-093 7.16 9.75 130 01-103-131 12.84
1.20 48 01-103-018 2.73 3.50 73 01-103-056 3.06 6.70 105 01-103-094 7.16 9.80 130 01-103-132 12.84
1.25 48 01-103-019 2.73 3.60 76 01-103-057 3.18 6.75 105 01-103-095 7.16 9.90 130 01-103-133 12.84
1.30 48 01-103-020 2.73 3.70 76 01-103-058 3.51 6.80 105 01-103-096 7.72 10.00 133 01-103-134 12.60
1.35 48 01-103-021 3.00 3.75 76 01-103-059 3.80 6.90 105 01-103-097 7.72 10.50 133 01-103-135 14.94
1.40 48 01-103-022 3.00 3.80 76 01-103-060 3.80 7.00 105 01-103-098 7.01 11.00 140 01-103-136 16.98
1.45 48 01-103-023 3.00 3.90 79 01-103-061 3.45 7.10 108 01-103-099 7.72 11.50 143 01-103-137 17.66
1.50 48 01-103-024 3.06 4.00 83 01-103-062 3.45 7.20 108 01-103-100 7.72 12.00 149 01-103-138 20.37
1.55 48 01-103-025 2.73 4.10 83 01-103-063 3.45 7.25 108 01-103-101 7.72 12.50 152 01-103-139 21.73
1.60 48 01-103-026 2.73 4.20 83 01-103-064 3.80 7.30 108 01-103-102 7.01 13.00 152 01-103-140 30.25
1.65 51 01-103-027 2.73 4.25 83 01-103-065 3.83 7.40 111 01-103-103 8.25 13.50 168 01-103-141 29.93
1.70 51 01-103-028 3.00 4.30 83 01-103-066 3.83 7.50 111 01-103-104 7.50 14.00 168 01-103-145 30.55
1.75 51 01-103-029 3.16 4.40 86 01-103-067 3.83 7.60 111 01-103-105 7.50 14.50 168 01-103-150 33.38
1.80 51 01-103-030 3.16 4.50 86 01-103-068 3.48 7.70 114 01-103-106 9.09 15.00 181 01-103-155 33.66
1.85 51 01-103-031 2.87 4.60 86 01-103-069 4.40 7.75 114 01-103-107 9.09 15.50 181 01-103-160 37.13
1.90 51 01-103-032 3.16 4.70 89 01-103-070 4.40 7.80 114 01-103-108 9.09 16.00 181 01-103-165 38.15
1.95 51 01-103-033 3.16 4.75 89 01-103-071 4.40 7.90 114 01-103-109 8.27 16.50 181 01-103-170 40.52
2.00 51 01-103-034 3.06 4.80 89 01-103-072 4.00 8.00 114 01-103-110 7.87 17.00 194 01-103-175 43.98
2.05 54 01-103-035 2.87 4.90 92 01-103-073 5.01 8.10 117 01-103-111 9.35 17.50 194 01-103-180 44.89
2.10 54 01-103-036 3.16 5.00 92 01-103-074 4.56 8.20 117 01-103-112 8.50
2.15 54 01-103-037 3.16 5.10 92 01-103-075 5.01 8.25 117 01-103-113 9.35
2.20 57 01-103-038 3.16 5.20 95 01-103-076 4.56 8.30 117 01-103-114 8.50
High Speed Steel Jobbers Length Drill Blanks Other Drill Blank Sizes And Full Range
Precise Finished Ground Stock Of Reamer Blanks Available, Please Call
APPLICATIONS:
• Specially made blanks for precision drills.
• Can also be used as shafts, arbors, guide rods, rollers, gages, alignment pins, punches,
knock-out pins, as well as stock in the manufacturing of specialty tools & instruments. Sold In package quantity only.
DeciMaL overaLL orDer price DeciMaL overaLL orDer price FeATureS:
Size Size
DiaMeTer LengTH # eacH DiaMeTer LengTH # eacH • Hardness: 62/64 Rc QuanTiTy per package
#62 .0380" 1-1/2" 01-105-005 $2.51 1/8" .1250" 2-3/4" 01-105-060 $2.51 • 10 microinch finish Size QuanTiTy
#61 .0390" 1-5/8" 01-105-010 2.51 5/32" .1562" 3-1/8" 01-105-065 3.14 or better. Up to .1249" 12
1.00mm .0394" 1-5/8" 01-105-015 3.14 4.00mm .1575" 3-1/4" 01-105-070 3.49 • Within .001" straight. From .1250" to .3749" 6
1.45mm .0571" 1-7/8" 01-105-020 3.14 3/16" .1875" 3-1/2" 01-105-075 3.14 • Size marked on blank. From .3750" to .6249" 3
1.50mm .0591" 1-7/8" 01-105-025 3.14 5.00mm .1969" 3-5/8" 01-105-080 5.03 From .6250" up 1
1/16" .0625" 1-7/8" 01-105-030 2.51 6.00mm .2362" 4" 01-105-085 6.00 Prices shown are per blank.
5/64" .0781" 2" 01-105-035 2.51 1/4" .2500" 4" 01-105-090 5.03
2.00mm .0787" 2-1/8" 01-105-040 3.14 5/16" .3125" 4-1/2" 01-105-095 6.63 ToLeranceS:
3/32" .0938" 2-1/4" 01-105-045 2.51 3/8" .3750" 5" 01-105-100 9.43 Up to .5000": -.0002" or -.005mm
2.70mm .1063" 2-1/2" 01-105-050 3.14 1/2" .5000" 6" 01-105-105 16.97 From .5001" to .6250": -.0003" or -.008mm
3.00mm .1181" 2-3/4" 01-105-055 3.14 From .6251" to 1.000": -.0005" or -.013mm
