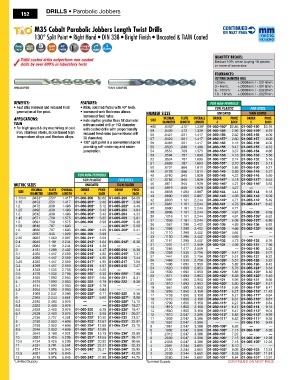

Page 154 - All Industrial Tool Supply | General Catalog

DRILLS • Parobolic Jobbers
152

M35 Cobalt Parabolic Jobbers Length Twist Drills
130° Split Point • Right Hand • DIN 338 • Bright Finish • Uncoated & TiAlN Coated

QuanTiTy Breaks:
TiAlN coated drills outperform non-coated
drills by over 600% in laboratory tests Deduct 10% when buying 10 pieces
or more of same size.
ToLeranCes:
CuTTing DiaMeTer (h8)
<3mm: +.0000mm / -.0014mm
Uncoated tialn coated 3 - 6mm: +.0000mm / -.0018mm
6 - 10mm: +.0000mm / -.0022mm
10 - 18mm: +.0000mm / -.0027mm
Benefits: feAtures: For NoN-Ferrous
• Fast chip removal and reduced heat • Wide, polished flutes with 40° helix. For Plastic For steel
generation at the point. • Increased web thickness allows nuMBer sizes unCoaTeD Tialn CoaTeD
increased feed rates.
APPLiCAtiOns: • Hole depths greater than 5X diameter size DeCiMaL FLuTe overaLL orDer PriCe orDer PriCe
TiAlN with uncoated drill or 15X diameter DiaMeTer LengTh LengTh # eaCh # eaCh
• For high speed & dry machining of cast with coated drills with proportionally #60 .0402" .472" 1.339" 01-060-160* $2.86 01-065-160 $3.76
iron, stainless steels, nickel based high reduced feed rates (conventional drill 59 .0409 .472 1.339 01-060-159 2.96 01-065-159* 4.29
temperature alloys and titanium alloys. 3X diameter). 58 .0421 .551 1.417 01-060-158 2.62 01-065-158 4.00
57
1.417
.551
.0429
4.00
2.60 01-065-157
01-060-157*
• 130° split point is a conventional point 56 .0465 .551 1.417 01-060-156 3.16 01-065-156 4.02
providing self-centering and easier 55 .0520 .630 1.496 01-060-155 3.47 01-065-155 4.33
penetration. 54 .0551 .709 1.575 01-060-154* 3.37 01-065-154 4.80
53 .0594 .787 1.693 01-060-153 4.16 01-065-153 5.56
52 .0634 .787 1.693 01-060-152* 3.74 01-065-152 5.16
51 .0669 .787 1.693 01-060-151* 3.70 01-065-151 5.11
50 .0701 .866 1.811 01-060-150* 3.85 01-065-150 5.27
49 .0728 .866 1.811 01-060-149 3.89 01-065-149 5.27
For NoN-Ferrous 48 .0760 .945 1.929 01-060-148 4.22 01-065-148 5.60

For Plastic For steel 47 .0785 .945 1.929 01-060-147* 4.18 01-065-147* 5.54
MeTriC sizes unCoaTeD Tialn CoaTeD 46 .0811 .945 1.929 01-060-146* 4.27 01-065-146* 5.63
DeCiMaL FLuTe overaLL orDer PriCe orDer PriCe 45 .0819 .945 1.929 01-060-145* 4.27 — —
size 44 .0858 1.063 2.087 01-060-144 4.44 01-065-144 6.18
DiaMeTer LengTh LengTh # eaCh # eaCh
1.1mm .0433" .551" 1.417" 01-060-200 $2.62 01-065-200 $4.00 43 .0890 1.063 2.087 01-060-143 4.36 01-065-143 6.09
01-060-142*
2.244
42
.0933
1.181
4.71 01-065-142
6.49
1.15 .0453 .551 1.417 01-060-201* 2.60 01-065-201* 3.96 41 .0961 1.181 2.244 01-060-141 4.76 01-065-141* 6.42
1.2 .0472 .630 1.496 01-060-202* 3.12 01-065-202* 4.49 40 .0980 1.181 2.244 01-060-140* 4.71 — —
1.25 .0492 .630 1.496 01-060-203* 3.43 01-065-203 4.84
1.3 .0512 .630 1.496 01-060-204* 3.43 01-065-204 4.33 39 .0996 1.181 2.244 01-060-139* 4.91 01-065-139 6.69
1.45 .0571 .709 1.575 01-060-205* 3.85 01-065-205 3.91 38 .1016 1.181 2.244 01-060-138* 4.91 01-065-138* 6.62
37
.1039
5.08 01-065-137*
6.80
01-060-137*
1.181
2.244
1.5 .0591 .709 1.575 01-060-206 3.98 01-065-206* 5.30
1.55 .0610 .787 1.693 — — 01-065-207* 5.50 36 .1067 1.299 2.402 01-060-136 4.89 01-065-136 6.62
1.6 .0630 .787 1.693 01-060-208* 4.05 01-065-208* 5.41 35 .1098 1.299 2.402 01-060-135 4.69 01-065-135* 4.66
2 .0787 .945 1.929 01-060-209 3.98 — — 34 .1110 1.299 2.402 01-060-134* 4.64 — —
2.35 .0925 1.063 2.087 01-060-211* 3.00 — — 33 .1130 1.299 2.402 01-060-133 4.69 — —
2.4 .0945 1.181 2.244 01-060-212* 4.64 01-065-212* 6.36 32 .1161 1.299 2.402 01-060-132 4.73 01-065-132 4.76
2.5 .0984 1.181 2.244 01-060-213 4.36 — — 31 .1201 1.417 2.559 01-060-131 4.96 01-065-131 7.56
3 .1181 1.299 2.402 01-060-214 4.47 01-065-214 6.36 30 .1283 1.417 2.559 — — 01-065-130 5.02
3.1 .1220 1.417 2.559 01-060-215* 4.80 01-065-215* 7.37 29 .1358 1.535 2.756 01-060-129* 5.41 01-065-129 8.07
3.2 .1260 1.417 2.559 01-060-216* 4.80 01-065-216 7.44 27 .1441 1.535 2.756 01-060-127* 5.57 01-065-127 8.22
3.25 .1280 1.417 2.559 01-060-217* 4.95 01-065-217 7.60 26 .1469 1.535 2.756 01-060-126* 5.57 01-065-126 8.22
3.3 .1299 1.417 2.559 01-060-218 4.87 01-065-218 7.47 25 .1496 1.693 2.953 01-060-125 5.82 01-065-125 8.42
3.4 .1339 1.535 2.756 01-060-219 5.20 — — 24 .1520 1.693 2.953 01-060-124* 5.76 01-065-124* 8.34
3.5 .1378 1.535 2.756 01-060-220* 5.30 01-065-220* 7.88 23 .1539 1.693 2.953 01-060-123* 5.83 01-065-123* 8.40
3.9 .1535 1.693 2.953 01-060-221* 5.65 01-065-221 8.31 22 .1571 1.693 2.953 01-060-122* 5.83 01-065-122* 8.40
1.693
2.953
5.96 01-065-121
8.56
21
01-060-121
.1591
4 .1575 1.693 2.953 01-060-222 5.78 01-065-222 8.38 20 .1610 1.693 2.953 01-060-120* 5.90 01-065-120* 8.47
4.1 .1614 1.693 2.953 01-060-223* 5.79 — — 19 .1661 1.693 2.953 01-060-119 5.96 01-065-119* 8.47
4.2 .1654 1.693 2.953 01-060-224 5.84 — — 18 .1693 1.850 3.150 01-060-118* 6.27 01-065-118* 11.42
5 .1969 2.047 3.386 01-060-225* 6.71 01-065-225 9.38 17 .1728 1.850 3.150 01-060-117* 6.27 01-065-117* 8.84
6 .2362 2.244 3.661 01-060-227* 8.62 01-065-227* 5.58 16 .1772 1.850 3.150 01-060-116* 6.31 01-065-116* 8.87
6.3 .2480 2.480 3.976 — — 01-065-228* 14.12 15 .1799 1.850 3.150 01-060-115* 6.27 01-065-115* 8.84
6.4 .2520 2.480 3.976 — — 01-065-229* 19.27 14 .1819 1.850 3.150 01-060-114* 6.47 01-065-114 9.13
6.5 .2559 2.480 3.976 01-060-230 9.29 01-065-230* 19.47 13 .1850 1.850 3.150 01-060-113* 6.47 01-065-113* 9.04
6.7 .2638 2.480 3.976 01-060-231 9.89 01-065-231 20.27 12 .1910 2.047 3.386 01-060-112* 6.82 01-065-112* 9.39
7 .2756 2.717 4.291 01-060-232* 10.56 01-065-232 21.07 11 .1909 2.047 3.386 01-060-111* 6.82 01-065-111* 9.39
8 .3150 2.953 4.606 01-060-233* 12.67 01-065-233* 22.97 10 .1937 2.047 3.386 — — 01-065-110 9.49
8.1 .3189 2.953 4.606 01-060-234* 12.89 01-065-234* 23.19 9 .1961 2.047 3.386 01-060-109* 6.82 — —
8.5 .3346 2.953 4.606 01-060-235* 13.86 — — 8 .1992 2.047 3.386 01-060-108* 7.15 01-065-108* 6.26
9 .3543 3.189 4.921 01-060-236 15.73 01-065-236* 23.80 7 .2012 2.047 3.386 01-060-107 7.22 — —
10 .3937 3.425 5.236 01-060-237* 18.55 01-065-237* 26.77 6 .2039 2.047 3.386 01-060-106* 7.15 01-065-106* 12.28
10.5 .4134 3.425 5.236 01-060-238* 20.92 01-065-238* 30.56 5 .2055 2.047 3.386 01-060-105* 7.15 01-065-105* 12.28
11 .4331 3.701 5.591 01-060-239* 22.37 01-065-239 32.33 4 .2091 2.244 3.661 01-060-104* 8.10 — —
12 .4724 3.976 5.945 01-060-240* 26.31 01-065-240* 35.95 3 .2130 2.244 3.661 01-060-103* 8.03 01-065-103 13.31
12.5 .4921 3.976 5.945 — — 01-065-241* 42.00 2 .2209 2.244 3.661 01-060-102* 8.38 01-065-102* 11.81
13 .5118 3.976 5.945 01-060-242* 31.88 01-065-242* 44.75 1 .2280 2.244 3.661 01-060-101* 8.84 01-065-101* 13.97
*Limited Supply. *Limited Supply. CONTINUED ON NEXT PAGE.
