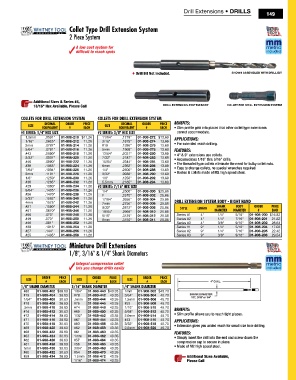

P. 151
Drill Extensions • DRILLS
149
Collet Type Drill Extension System
2 Piece System
A low cost system for
difficult to reach spots
♦ Drill Bit Not Included. Shown ASSembled with drill bit
Additional Sizes & Series #4,
13/16" Hex Available, Please Call drill extenSion SyStem body Collet For drill extenSion SyStem
CollETS For Drill ExTEnSion SySTEM CollETS For Drill ExTEnSion SySTEM
DECiMal orDEr PriCE DECiMal orDEr PriCE Benefits:
SizE SizE
EquivalEnT # EaCh EquivalEnT # EaCh • Slim profile gets into places that other collet type extensions
#1 SEriES: 1/4" hEx SizE #2 SEriES: 3/8" hEx SizE cannot accommodate.
1.5mm .0591" 01-908-210 $11.26 11/64" .1719" 01-908-272 $13.69 APPLiCAtiOns:
1/16" .0625" 01-908-212 11.26 3/16" .1875" 01-908-274 13.69 • For extended reach drilling.
2mm .0787" 01-908-214 11.26 #10 .1395" 01-908-276 13.69
5/64" .0781" 01-908-216 11.26 5mm .1968" 01-908-278 13.69 feAtures:
#43 .0890" 01-908-218 11.26 13/64" .2031" 01-908-280 13.69 • 4" & 9" extensions use collets.
3/32" .0937" 01-908-220 11.26 7/32" .2187" 01-908-282 13.69 • Accomodates 1/16" thru 5/16" drills.
#40 .0980" 01-908-222 11.26 15/64" .2344" 01-908-284 13.69 • The threaded type collets eliminate the need for bulky collet nuts.
#36 .1065" 01-908-224 11.26 6mm .2362" 01-908-286 13.69 • Easy to change collets, no special wrenches required.
7/64" .1094" 01-908-226 11.26 1/4" .2500" 01-908-288 13.69
3mm .1181" 01-908-228 11.26 3/32" .0938" 01-908-290 13.69 • Bodies & collets made of M2 high speed steel.
1/8" .1250" 01-908-230 11.26 1/8" .1250" 01-908-292 13.69
#30 .1285" 01-908-232 11.26 5.5mm .2165" 01-908-294 13.69
#29 .1360" 01-908-234 11.26 #3 SEriES: 7/16" hEx SizE
9/64" .1405" 01-908-236 11.26 1/4" .2500" 01-908-300 $25.86
#26 .1470" 01-908-238 11.26 F .2570" 01-908-302 25.86
5/32" .1562" 01-908-240 11.26 17/64" .2656" 01-908-304 25.86
4mm .1575" 01-908-242 11.26 7mm .2756" 01-908-306 25.86 Drill ExTEnSion SySTEM BoDy - righT hanD
#21 .1590" 01-908-244 11.26 9/32" .2812" 01-908-308 25.86 STylE lEngTh Shank BoDy orDEr PriCE
#51 .0670" 01-908-246 11.26 19/64" .2969" 01-908-310 25.86 DiaMETEr DiaMETEr # EaCh
#50 .070" 01-908-248 11.26 5/16" .3125" 01-908-312 25.86 Series #1 4" 1/4" 5/16" 01-908-200 $16.82
#49 .073" 01-908-250 11.26 8mm .3150" 01-908-314 25.86 Series #2 4" 1/4" 7/16" 01-908-201 21.82
#46 .081" 01-908-252 11.26 Series #3 4" 3/8" 9/16" 01-908-202 28.63
#38 .1015" 01-908-254 11.26 Series #1 9" 1/4" 5/16" 01-908-204 17.02
#27 .144" 01-908-256 11.26 Series #2 9" 1/4" 7/16" 01-908-205 22.42
#25 .1495" 01-908-258 11.26 Series #3 9" 3/8" 9/16" 01-908-206 29.54
Miniature Drill Extensions
1/8", 3/16" & 1/4" Shank Diameters
Integral compression collet
lets you change drills easily
SizE orDEr PriCE SizE orDEr PriCE SizE orDEr PriCE
EaCh
#
#
EaCh
EaCh
#
1/8" Shank DiaMETEr 3/16" Shank DiaMETEr 1/4" Shank DiaMETEr
#80 01-908-402 $38.63 1/64" 01-908-440 $40.35 1mm 01-908-502 $45.70
#79 01-908-404 38.63 #78 01-908-442 40.35 3/64" 01-908-504 45.70
1/64" 01-908-406 38.63 .5mm 01-908-444 40.35 1.5mm 01-908-506 45.70
#78 01-908-408 38.63 #76 01-908-446 40.35 #53 01-908-508 45.70
.5mm 01-908-410 38.63 #74 01-908-448 40.35 1/16" 01-908-510 45.70 Benefits:
#74 01-908-412 38.63 #69 01-908-450 40.35 5/64" 01-908-512 45.70
#72 01-908-414 38.63 1/32" 01-908-452 40.35 2.0mm 01-908-514 45.70 • Slim profile allows you to reach tight places.
#71 01-908-416 38.63 #67 01-908-454 40.35 #43 01-908-516 45.70 APPLiCAtiOns:
#70 01-908-418 38.63 #63 01-908-456 40.35 3/32" 01-908-518 45.70 • Extension gives you added reach for small size hole drilling.
#69 01-908-420 38.63 #62 01-908-458 40.35 2.5mm 01-908-520 45.70
#68 01-908-422 38.63 #61 01-908-460 40.35 feAtures:
#63 01-908-424 38.63 1mm 01-908-462 40.35 • Simply insert the drill into the end and screw down the
#62 01-908-426 38.63 #57 01-908-464 40.35 compression cap to secure in place.
#61 01-908-428 38.63 #56 01-908-466 40.35
1mm 01-908-430 38.63 3/64" 01-908-468 40.35 • Made of M2 high speed steel.
#60 01-908-432 38.63 #54 01-908-470 40.35
#59 01-908-434 38.63 1.5mm 01-908-472 40.35 Additional Sizes Available,
1/16" 01-908-474 40.35 Please Call
