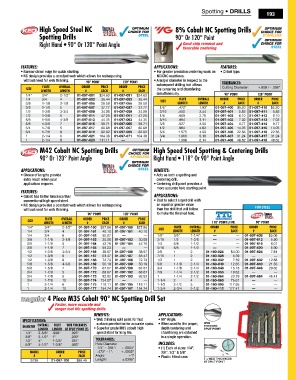

Page 195 - All Industrial Tool Supply | General Catalog

Spotting • DRILLS
193

High Speed Steel NC 8% Cobalt NC Spotting Drills
Spotting Drills 90° Or 120° Point
Right Hand • 90° Or 120° Point Angle Good chip removal and
favorable centering

Features: aPPLICatIONs: Features:
• Narrow chisel edge for quick starting. • For greater precision centering work on • Chisel type.
• NC design provides a constant web which allows for resharpening NC/CNC machines.
without need for web thinning. 90° poiNT 120° poiNT • A larger diameter in respect to the ToleraNCeS:

fluTe overall orDer priCe orDer priCe subsequent drilling tool allows Cutting Diameter: +.000 / - .006"
Size the centering and chamfering
leNgTH leNgTH # eaCH # eaCH
1/4" 3/4" 2-1/2" 01-097-001 $24.63 01-097-051 $24.63 simultaneously. 90° poiNT 120° poiNT
1/4 3/4 4 01-097-003 35.44 01-097-053 35.44 Size fluTe overall orDer priCe orDer priCe
3/8 1-1/8 3-1/8 01-097-005 26.58 01-097-055 26.58 leNgTH leNgTH # eaCH # eaCH
3/8 1-1/8 5 01-097-007 37.77 01-097-057 37.77 1/8" .472" 1.93" 01-097-400 $5.20 01-097-410 $5.20
1/2 1-3/8 3-3/4 01-097-009 34.08 01-097-059 34.08 3/16 .590 2.44 01-097-401 5.82 01-097-411 5.82
1/2 1-3/8 6 01-097-011 47.25 01-097-061 47.25 1/4 .669 2.76 01-097-402 6.10 01-097-412 6.10
5/8 1-5/8 4-3/8 01-097-013 44.35 01-097-063 44.35 5/16 .984 3.11 01-097-403 7.02 01-097-413 7.02
5/8 1-5/8 7 01-097-015 59.71 01-097-065 59.71 3/8 .827 3.50 01-097-404 8.77 01-097-414 8.77
3/4 1-7/8 5 01-097-017 60.68 01-097-067 60.68 1/2 .984 4.02 01-097-405 14.05 01-097-415 14.05
3/4 1-7/8 8 01-097-019 82.02 01-097-069 82.02 5/8 1.575 4.53 01-097-406 22.56 01-097-416 22.56
1 2-1/4 6 01-097-021 104.38 01-097-071 104.38 3/4 1.968 5.16 01-097-407 31.24 01-097-417 31.24
1 2-1/4 8 01-097-023 111.11 — — 1 1.968 6.14 01-097-408 48.62 01-097-418 48.62
M42 Cobalt NC Spotting Drills High Speed Steel Spotting & Centering Drills
90° Or 120° Point Angle Right Hand • 118° Or 90° Point Angle

aPPLICatIONs: BeNeFIts:
• Choice of lengths provide • Acts as both a spotting and
extra reach when your centering drill.
application requires. • Centering drill point provides a
more accurate hole starting point.
Features:
• Cobalt has better tolerance than aPPLICatIONs:
conventional high speed steel. • Best to select a spot drill with

• NC design provides a constant web which allows for resharpening an equal or greater value

without need for web thinning. than the drill that will follow FOR STEEL

90° poiNT 120° poiNT to make the finished hole.

fluTe
Size leNgTH overall orDer priCe orDer priCe 118° poiNT [A100] 90° poiNT
eaCH
#
leNgTH
#
eaCH
1/4" 3/4" 2-1/2" 01-097-160 $27.86 01-097-180 $27.86 Size fluTe overall orDer priCe orDer priCe
1/4 3/4 4 01-097-161 40.10 01-097-181 40.10 leNgTH leNgTH # eaCH # eaCH
1/4 3/4 6 01-097-162 55.07 — — 1/8" 3/8" 1-1/4" — — 01-097-608 $5.06
3/8 1-1/8 3-1/8 01-097-163 30.08 01-097-183 30.08 3/16 1/2 1-3/8 — — 01-097-612 5.50
3/8 1-1/8 5 01-097-164 42.76 01-097-184 42.76 1/4 5/8 1-1/2 — — 01-097-616 6.07
3/8 1-1/8 7 01-097-165 59.23 — — 5/16 5/8 1-1/2 — — 01-097-620 6.90
1/2 1-3/8 3-3/4 01-097-166 38.57 01-097-186 38.57 3/8 1 2 01-160-024 $4.00 01-097-624 7.81
1/2 1-3/8 6 01-097-167 53.47 01-097-187 53.47 7/16 1 2 01-160-028 5.39 — —
1/2 1-3/8 8 01-097-168 72.73 01-097-188 72.73 1/2 1 2 01-160-032 7.59 01-097-632 12.88
5/8 1-5/8 4-3/8 01-097-169 50.19 01-097-189 50.19 5/8 1-1/8 2-1/4 01-160-040 12.63 01-097-640 21.33
5/8 1-5/8 7 01-097-170 67.57 01-097-190 67.57 3/4 1-1/8 2-1/4 01-160-048 15.18 01-097-648 29.62
3/4 1-7/8 5 01-097-172 68.67 01-097-192 68.67 7/8 1-1/4 2-1/2 01-160-056 18.62 — —
3/4 1-7/8 8 01-097-173 92.83 01-097-193 92.83 1 1-1/4 2-1/2 01-160-064 23.79 01-097-664 46.41
3/4 1-7/8 10 01-097-174 124.07 — — 1-1/4 2 4 01-160-080 75.61 — —
1 2-1/4 6 01-097-175 118.11 01-097-195 118.11 1-1/2 2-1/2 5 01-160-096 117.65 — —
1 2-1/4 10 01-097-177 154.74 01-097-197 154.74 1-3/4 2-3/4 5-1/2 01-160-112 177.47 — —
4 piece M35 Cobalt 90° NC Spotting Drill Set
Faster, more accurate and
longer tool life spotting drills
BeNeFIts: aPPLICatIONs:
SpeCifiCaTioNS: • Web thinning split point for fast • 90° Angle. Web
DiaMeTer overall fluTe Web THiCkNeSS surface penetration for accurate spots. • When used to the proper, ThInnIng
leNgTH leNgTH aT SpliT poiNT (T) • Superior grade M35 cobalt high depth centering and SpLIT poInT
1/4" 2-5/8" .900" .025" speed steel for long life. chamfering are obtained
3/8" 3-1/2" 1" .039" in a single operation.
1/2" 4" 1-3/8" .051" ToleraNCeS:
5/8" 4-1/2" 1-3/8" .063" Hole Diameter INCLudes:
1/4" - .394": + .0004" • (1) Each of sizes: 1/4",
MoDel orDer priCe .472" - 1": + .0005" 3/8", 1/2" & 5/8"
# # eaCH Angle: ±1° • Plastic fitted case.
S195 01-097-700 $89.46 Length: ±.0395" T = Web ThIckneSS
aT SpLIT poInT
