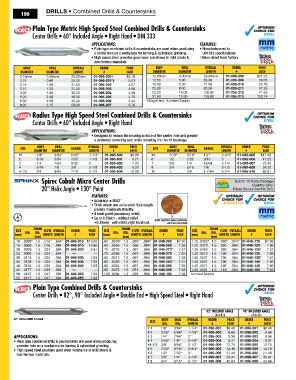

Page 192 - All Industrial Tool Supply | General Catalog

DRILLS • Combined Drills & Countersinks
190

Plain Type Metric High Speed Steel Combined Drills & Countersinks
Center Drills • 60° Included Angle • Right Hand • DIN 333

APPLICATIONS: FeATureS:
• Plain type combined drills & countersinks are used when producing • Manufacturered to
a center hole on a workpiece for turning & cylindrical grinding. DIN 333 specifications.
• High speed steel provides good wear resistance in mild steels & †Ships direct from factory.
non-ferrous materials.
BoDy DRill oveRall oRDeR PRiCe BoDy DRill oveRall oRDeR PRiCe
DiaMeTeR DiaMeTeR lengTH # eaCH DiaMeTeR DiaMeTeR lengTH # eaCH
3.15mm 0.50mm 25.00mm 01-095-200† $5.10 10.00mm 4.00mm 56.00mm 01-095-208 $11.23
3.15 0.80 25.00 01-095-201*† 5.01 12.50 5.00 63.00 01-095-209 16.05
3.15 1.00 31.50 01-095-202 4.67 16.00 6.30 71.00 01-095-210 22.78
3.15 1.25 31.50 01-095-203 4.50 20.00 8.00 80.00 01-095-211 37.26
4.00 1.60 35.50 01-095-204 4.39 25.00 10.00 100.00 01-095-212 71.65
5.00 2.00 40.00 01-095-205 4.75 31.50 12.50 125.00 01-095-213 120.74
6.30 2.50 45.00 01-095-206 5.43 †Single end. *Limited Supply.
8.00 3.15 50.00 01-095-207 6.78
Radius Type High Speed Steel Combined Drills & Countersinks
Center Drills • 60° Included Angle • Right Hand

APPLICATIONS:
• Designed to reduce the bearing surface of the center hole and provide
a protected centering seat while reducing the risk of breakage.
BoDy DRill oveRall oRDeR PRiCe BoDy DRill oveRall oRDeR PRiCe
Size RaDiuS Size RaDiuS
DiaMeTeR DiaMeTeR lengTH # eaCH DiaMeTeR DiaMeTeR lengTH # eaCH
#1 1/8" 3/64" 5/32" 1-1/4" 01-095-600 $6.39 #5 7/16" 3/16" 1/2" 2-3/4" 01-095-605 $11.46
2 3/16 5/64 7/32 1-7/8 01-095-601 6.77 6 1/2 7/32 9/16 3 01-095-606 17.32
3 1/4 7/64 9/32 2 01-095-602 7.33 7 5/8 1/4 45/64 3-1/4 01-095-607 25.42
4 5/16 1/8 3/8 2-1/8 01-095-603 8.23 8 3/4 5/16 7/8 3-1/2 01-095-608 34.32
4-1/2 3/8 9/64 7/16 2-1/2 01-095-604 10.08 10 1 3/8 1-7/64 3-3/4 01-095-610 83.91
Spirec Cobalt Micro Center Drills Sold In 10 Piece Package
Quantity Only.
20° Helix Angle • 130° Point Prices Shown Are Per Drill.
FeATureS:
• Accuracy: ±.0002"
• Thick shank and extra short flute length
provide maximum stability.
• 4 facet point (secondary relief).
• Up to 0.35mm - without relief.
+0.35mm - with relief, right hand cut. FOR MICRO MACHINING
APPLICATIONS
SHank SHank SHank
Size FluTe oveRall oRDeR PRiCe Size FluTe oveRall oRDeR PRiCe Size FluTe oveRall oRDeR PRiCe
(mm) Dia. Dia. lengTH lengTH # eaCH (mm) Dia. Dia. lengTH lengTH # eaCH (mm) Dia. Dia. lengTH lengTH # eaCH
(mm) (mm) (mm)
.10 .0039" 1.5 .016" .984" 01-046-010 $13.80 .60 .0236" 1.5 .055" .984" 01-046-060 $7.93 1.15 .0453" 1.5 .090" .984" 01-046-115 $7.93
.15 .0059 1.5 .016 .984 01-046-015 13.80 .65 .0256 1.5 .055 .984 01-046-065 7.93 1.20 .0472 1.5 .090 .984 01-046-120 7.93
.20 .0079 1.5 .024 .984 01-046-020 9.91 .70 .0276 1.5 .067 .984 01-046-070* 7.57 1.25 .0492 1.5 .090 .984 01-046-125* 7.57
.25 .0098 1.5 .024 .984 — — .75 .0295 1.5 .067 .984 01-046-075 7.93 1.30 .0512 1.5 .106 .984 01-046-130 7.93
.30 .0118 1.5 .035 .984 01-046-030 7.93 .80 .0315 1.5 .067 .984 01-046-080 7.93 1.35 .0531 1.5 .106 .984 01-046-135* 7.57
.35 .0138 1.5 .035 .984 01-046-035 7.93 .85 .0335 1.5 .067 .984 01-046-085* 7.57 1.40 .0551 1.5 .106 .984 01-046-140 7.93
.40 .0158 1.5 .039 .984 01-046-040 7.93 .90 .0354 1.5 .067 .984 01-046-090 7.93 1.45 .0571 1.5 .106 .984 01-046-145 7.93
.45 .0177 1.5 .039 .984 — — .95 .0374 1.5 .071 .984 01-046-095 7.93 1.50 .0591 1.5 .118 .984 01-046-150 7.93
.50 .0197 1.5 .047 .984 01-046-050 7.93 1.00 .0394 1.5 .079 .984 01-046-100 7.93 *Limited Supply.
.55 .0217 1.5 .047 .984 01-046-055 7.93
Plain Type Combined Drills & Countersinks
Center Drills • 82°, 90° Included Angle • Double End • High Speed Steel • Right Hand

82° inCluDeD angle 90° inCluDeD angle

[A18-82] [A18-90]
82° INCLuded ANGLe BoDy DRill oveRall oRDeR PRiCe oRDeR PRiCe
Size
Dia. Dia. lengTH # eaCH # eaCH
# 1 1/8" 3/64" 1-1/4" 01-095-001 $8.46 01-096-001 $8.46
# 2 3/16" 5/64" 1-7/8" 01-095-002 8.66 01-096-002 8.66
APPLICATIONS: # 3 1/4" 7/64" 2" 01-095-003 8.96 01-096-003 8.96
• Plain type combined drills & countersinks are used when producing # 4 5/16" 1/8" 2-1/8" 01-095-004 9.31 01-096-004 9.31
a center hole on a workpiece for turning & cylindrical grinding. #4-1/2 3/8" 9/64" 2-1/2" 01-095-009 12.75 01-096-009 12.75
• High speed steel provides good wear resistance in mild steels & # 5 7/16" 3/16" 2-3/4" 01-095-005 14.19 01-096-005 14.19
non-ferrous materials. # 6 1/2" 7/32" 3" 01-095-006 21.48 01-096-006 21.48
# 7 5/8" 1/4" 3-1/4" 01-095-007 30.41 01-096-007 30.41
# 8 3/4" 5/16" 3-1/2" 01-095-008 42.64 01-096-008 42.64
