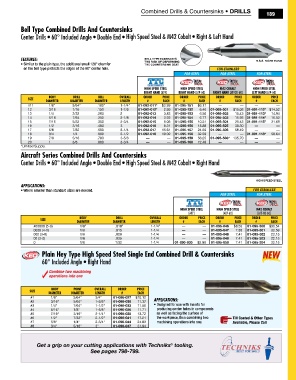

Page 191 - All Industrial Tool Supply | General Catalog

Combined Drills & Countersinks • DRILLS
189

bell type Combined drills and Countersinks
Center Drills • 60° Included Angle • Double End • High Speed Steel & M42 Cobalt • Right & Left Hand

FeATureS: bell type elimiNAteS H.S.S. RigHt HANd
tHe RiSk of defoRmiNg

• Similar to the plain type, the additional small 120° chamfer tHe couNteRSiNk SeAt

on the bell type protects the edges of the 60° center hole. FOR STAINLESS

FOR STEEL FOR STEEL FOR STEEL

HigH Speed Steel HigH Speed Steel M42 Cobalt HigH Speed Steel
rigHt Hand [A19] rigHt Hand [A19-60] rigHt Hand [A19CO-60] left Hand [A19-60]
body drill bell overall order priCe order priCe order priCe order priCe
Size
diaMeter diaMeter diaMeter lengtH # eaCH # eaCH # eaCH # eaCH
#11 1/8" 3/64" .100" 1-1/4" 01-092-011* $2.99 01-095-151 $6.17 — — — —
12 3/16 1/16 .150 1-7/8 01-092-012* 2.99 01-095-152 6.46 01-095-501 $15.03 01-091-112* $14.52
13 1/4 3/32 .200 2 01-092-013 3.83 01-095-153 6.56 01-095-502 15.43 01-091-113* 14.94
14 5/16 7/64 .250 2-1/8 01-092-014 3.92 01-095-154 6.77 01-095-503 15.93 01-091-114* 15.52
15 7/16 5/32 .350 2-3/4 01-092-015 6.03 01-095-155 10.31 01-095-504 25.43 01-091-115* 21.69
16 1/2 3/16 .400 3 01-092-016 9.31 01-095-156 15.88 01-095-505 39.30 — —
17 5/8 7/32 .500 3-1/4 01-092-017 15.61 01-095-157 24.59 01-095-506 58.49 — —
18 3/4 1/4 .600 3-1/2 01-092-018 19.02 01-095-158 32.59 — — 01-091-118* 58.64
19 7/8 5/16 .700 3-5/8 — — 01-095-159 56.25 01-095-508* 135.70 — —
20 1 3/8 .800 3-3/4 — — 01-095-160 72.48 — — — —
*Limited Supply.
aircraft Series Combined drills and Countersinks
Center Drills • 60° Included Angle • Double End • High Speed Steel & M42 Cobalt • Right Hand
HigH Speed Steel

APPLICATIONS:
• Where smaller than standard sizes are needed. FOR STAINLESS

FOR STEEL FOR STEEL

HigH Speed Steel HigH Speed Steel M42 Cobalt
[A17] [A17-60] [A17-CO-60]
body drill overall order priCe order priCe order priCe
Size
diaMeter diaMeter lengtH # eaCH # eaCH # eaCH
#00000 (5-0) 1/8" .010" 1-1/4" — — 01-095-046 $8.53 01-095-300 $33.54
0000 (4-0) 1/8 .015 1-1/4 — — 01-095-047 7.83 01-095-301 32.59
000 (3-0) 1/8 .020 1-1/4 — — 01-095-048 7.41 01-095-302 22.15
00 (2-0) 1/8 .025 1-1/4 — — 01-095-049 7.41 01-095-303 22.15
0 1/8 1/32 1-1/4 01-090-003 $2.99 01-095-050 7.41 01-095-304 22.15
plain Hey type High Speed Steel Single end Combined drill & Countersinks
60° Included Angle • Right Hand
Combine two machining
operations into one

body point overall order priCe
Size
diaMeter diaMeter lengtH # eaCH
#1 1/8" 3/64" 3/4" 01-096-027 $10.12 APPLICATIONS:
#2 3/16" 5/64" 1-3/8" 01-096-030 11.37
#3 1/4" 7/64" 1-1/2" 01-096-033 11.56 • Designed for use with inserts for
#4 5/16" 1/8" 1-5/8" 01-096-036 11.71 producing center holes in components
#5 7/16" 3/16" 2-1/4" 01-096-038 13.72 as well as facing the surface of
#6 1/2" 7/32" 2-1/2" 01-096-041 17.21 the workpiece, thus combining two TiN Coated & Other Types
#7 5/8" 1/4" 2-3/4" 01-096-044 24.03 machining operations into one. Available, Please Call
#8 3/4" 5/16" 3" 01-096-047 31.94

Get a grip on your cutting applications with Techniks tooling.
®
See pages 798-799.
