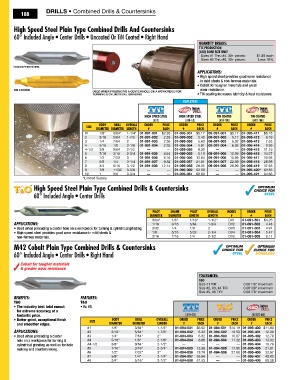

Page 190 - All Industrial Tool Supply | General Catalog

DRILLS • Combined Drills & Countersinks
188

High Speed Steel Plain Type Combined Drills And Countersinks
60° Included Angle • Center Drills • Uncoated Or TiN Coated • Right Hand
QuAnTiTy BreAkS:
TTC ProDuCTion
[A18] SAme Size only
Sizes #1 Thru #4, 30+ pieces: $1.89 each
Sizes #5 Thru #8, 30+ pieces: Less 10%
high speed steel
APPLICATIONS:
• High speed steel provides good wear resistance
in mild steels & non-ferrous materials.
• Cobalt for tougher materials and great
tiN coated wear resistance.

used wheN produciNg a ceNter hole oN a workpiece for
turNiNg & cyliNdrical griNdiNg • TiN coating increases lubricity & heat resistance.

FOR STEEL

HigH SPeeD STeel HigH SPeeD STeel Tin CoATeD Tin CoATeD

[A18] [A18-60] [A18-TiN] [A18-TiN]
BoDy Drill overAll orDer PriCe orDer PriCe orDer PriCe orDer PriCe
Size
DiAmeTer DiAmeTer lengTH # eACH # eACH # eACH # eACH
#1 1/8" 3/64" 1-1/4" 01-091-001 $2.35 01-095-051 $5.17 09-091-001 $5.17 01-095-411 $6.16
2 3/16 5/64 1-7/8 01-091-002 2.35 01-095-052 5.40 09-091-002 5.17 01-095-412 6.79
3 1/4 7/64 2 01-091-003 2.35 01-095-053 5.63 09-091-003 6.92 01-095-413 7.53
4 5/16 1/8 2-1/8 01-091-004 2.35 01-095-054 5.81 09-091-004 6.92 01-095-414 8.99
4-1/2 3/8 9/64 2-1/2 — — 01-095-059 8.00 — — 01-095-415 11.19
5 7/16 3/16 2-3/4 01-091-005 4.64 01-095-055 9.19 09-091-005 12.99 01-095-416 14.27
6 1/2 7/32 3 01-091-006 6.16 01-095-056 13.84 09-091-006 15.99 01-095-417 18.93
7 5/8 1/4 3-1/4 01-091-007 9.32 01-095-057 21.01 09-091-007 22.99 01-095-418 28.98
8 3/4 5/16 3-1/2 01-091-008 12.14 01-095-058 28.85 09-091-008 26.99 01-095-419 37.93
9 7/8 11/32 3-5/8 — — 01-095-060 52.33 — — 01-095-420* 63.55
10 1 3/8 3-3/4 — — 01-095-061 68.69 — — 01-095-421 84.63
*Limited Supply.
High Speed Steel Plain Type Combined Drills & Countersinks
60° Included Angle • Center Drills

PiloT SHAnk PiloT overAll moDel orDer PriCe
DiAmeTer DiAmeTer lengTH lengTH # # eACH
3/64" 1/8" 1/16" 1-1/2" DV1 01-091-501 $4.26
APPLICATIONS: 1/16 3/16 5/64 1-3/4 DV2 01-091-502 4.48
• Used when producing a center hole on a workpiece for turning & cylindrical grinding. 3/32 1/4 1/8 2 DV3 01-091-503 4.97
• High speed steel provides good wear resistance in mild steels & 1/8 5/16 5/32 2-1/4 DV4 01-091-504 5.47
non-ferrous materials. 3/16 7/16 1/4 2-1/2 DV5 01-091-505 8.17
m42 Cobalt Plain Type Combined Drills & Countersinks
60° Included Angle • Center Drills • Right Hand

Cobalt for tougher materials
& greater wear resistance
TolerAnCeS:
T&o
Size #1 TIR: 0.00118" maximum
Size #2, #3, #4 TIR: 0.00138" maximum
Size #5, #6 TIR: 0.00178" maximum
BeNefITS: feATureS:

T&O T&O

• The industry best total runout • Rc 65.
for extreme accuracy at a
fantastic price. [A18-CO] [A18CO-60]
• Better grind, exceptional finish Size BoDy Drill overAll orDer PriCe orDer PriCe orDer PriCe
and smoother edges. DiAmeTer DiAmeTer lengTH # eACH # eACH # eACH
#1 1/8" 3/64" 1-1/4" 01-094-001 $5.52 01-094-501 $10.19 01-095-400 $11.99
APPLICATIONS: #2 3/16" 5/64" 1-7/8" 01-094-002 6.22 01-094-502 10.53 01-095-401 12.39
• Used when producing a center #3 1/4" 7/64" 2" 01-094-003 6.62 01-094-503 10.87 01-095-402 12.79
hole on a workpiece for turning & #4 5/16" 1/8" 2-1/8" 01-094-004 6.86 01-094-504 11.32 01-095-403 13.32
cylindrical grinding as well as for hole #4-1/2 3/8" 9/64" 2-1/2" — — — — 01-095-404 19.79
making and countersinking. #5 7/16" 3/16" 2-3/4" 01-094-005 13.90 01-094-505 17.86 01-095-405 21.01
#6 1/2" 7/32" 3" 01-094-006 19.78 01-094-506 27.68 01-095-406 32.57
#7 5/8" 1/4" 3-1/4" 01-094-007 36.66 — — 01-095-407 49.02
#8 3/4" 5/16" 3-1/2" 01-094-008 51.53 — — 01-095-408 69.38
