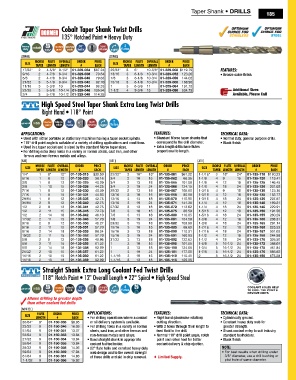

Page 187 - All Industrial Tool Supply | General Catalog

Taper Shank • DRILLS
185

Cobalt Taper Shank Twist Drills
135° Notched Point • Heavy Duty

[209Co] [209Co]
MorSE FLuTE ovEraLL orDEr priCE MorSE FLuTE ovEraLL orDEr priCE
SizE SizE
TapEr LEngTH LEngTH # EaCH TapEr LEngTH LEngTH # EaCH
17/32" 2 4-5/8" 8-1/2" 01-329-034 $67.24 25/32" 3 6" 10-5/8" 01-329-050 $119.79 Features:
9/16 2 4-7/8 8-3/4 01-329-036 70.64 13/16 3 6-1/8 10-3/4 01-329-052 123.26 • Bronze oxide finish.
5/8 2 4-7/8 8-3/4 01-329-040 79.63 7/8 3 6-1/8 10-3/4 01-329-056 144.02
21/32 3 5-1/8 9-3/4 01-329-042 92.10 15/16 3 6-1/8 10-3/4 01-329-060 168.95
11/16 3 5-3/8 10 01-329-044 98.33 1 3 6-3/8 11 01-329-064 191.12
23/32 3 5-5/8 10-1/4 01-329-046 105.94 1-1/2 4 9-3/8 15 01-329-096 504.79 Additional Sizes
3/4 3 5-7/8 10-1/2 01-329-048 114.25 Available, Please Call
High Speed Steel Taper Shank Extra Long Twist Drills
Right Hand • 118° Point

aPPLICatIONs: Features: teChNICaL Data:
• Used with either portable or stationary machines having a taper socket spindle. • Standard Morse taper shanks that • Normal duty, general purpose drills.
• 118° drill point angle is suitable of a variety of drilling applications and conditions. correspond to the drill diameter. • Black finish.
• Used in a taper socket and is sized by the standard Morse taper sizes. • Extra length drills have flutes
• For drilling extra deep holes in a variety or normal steels, cast iron, and other proportional to length.
ferrous and non-ferrous metals and alloys.
[A31] [A31] [A31]
MorSE FLuTE ovEraLL orDEr priCE MorSE FLuTE ovEraLL orDEr priCE MorSE FLuTE ovEraLL orDEr priCE
SizE SizE SizE
TapEr LEngTH LEngTH # EaCH TapEr LEngTH LEngTH # EaCH TapEr LEngTH LEngTH # EaCH
1/4" 1 8" 12" 01-135-015 $30.50 23/32" 2 10" 15" 01-135-061 $61.22 1-1/16" 3 18" 24" 01-135-116 $180.23
5/16 1 8 12 01-135-020 36.16 3/4 2 10 15 01-135-062 66.95 1-1/8 4 9 15 01-135-120 119.41
3/8 1 8 12 01-135-025 40.09 3/4 2 13 18 01-135-065 101.08 1-1/8 4 12 18 01-135-125 146.45
3/8 1 10 15 01-135-026 44.25 3/4 2 19 24 01-135-066 124.15 1-1/8 4 18 24 01-135-126 201.03
7/16 1 8 12 01-135-030 40.09 25/32 2 13 18 01-135-067 102.60 1-3/16 4 9 15 01-135-130 123.16
7/16 1 8 15 01-135-031 44.83 13/16 3 10 15 01-135-068 80.58 1-3/16 4 12 18 01-135-135 153.77
29/64 1 8 12 01-135-035 42.75 13/16 3 13 18 01-135-070 110.96 1-3/16 4 18 24 01-135-136 207.97
31/64 2 8 12 01-135-040 42.75 13/16 3 19 24 01-135-071 141.36 1-1/4 4 12 18 01-135-140 169.31
1/2 2 8 12 01-135-041 42.75 27/32 3 13 18 01-135-072 112.82 1-1/4 4 18 24 01-135-145 229.91
1/2 2 11 15 01-135-045 72.78 7/8 3 10 15 01-135-075 86.59 1-5/16 4 12 18 01-135-150 191.56
1/2 2 14 18 01-135-042 46.10 7/8 3 13 18 01-135-080 116.05 1-5/16 4 18 24 01-135-155 260.29
17/32 2 11 15 01-135-046 57.70 7/8 3 19 24 01-135-081 154.58 1-3/8 4 12 18 01-135-160 208.31
9/16 2 8 12 01-135-050 46.27 29/32 3 13 18 01-135-082 103.98 1-3/8 4 18 24 01-135-165 291.14
9/16 2 11 15 01-135-051 57.70 15/16 3 10 15 01-135-085 89.60 1-7/16 4 12 18 01-135-166 225.53
9/16 2 14 18 01-135-053 86.24 15/16 3 13 18 01-135-090 110.91 1-7/16 4 18 24 01-135-167 301.02
19/32 2 11 15 01-135-052 57.70 15/16 3 19 24 01-135-091 160.93 1-1/2 4 12 18 01-135-168 244.99
5/8 2 8 12 01-135-055 48.86 31/32 3 13 18 01-135-092 122.63 1-1/2 4 18 24 01-135-170 326.50
5/8 2 11 15 01-135-056 61.22 1 3 10 15 01-135-095 101.55 1-5/8 5 16-1/2 24 01-135-172 388.07
5/8 2 14 18 01-135-058 92.89 1 3 13 18 01-135-100 124.66 1-3/4 5 16-1/2 24 01-135-175 461.84
21/32 2 10 15 01-135-057 61.22 1 3 19 24 01-135-101 177.06 1-7/8 5 16-1/2 24 01-135-176 566.92
11/16 2 10 15 01-135-060 61.22 1-1/16 3 10 15 01-135-110 110.45 2 5 16-1/2 24 01-135-180 675.58
11/16 2 13 18 01-135-059 92.89 1-1/16 3 13 18 01-135-115 125.35
Straight Shank Extra Long Coolant Fed Twist Drills
118° Notch Point • 12" Overall Length • 22° Spiral • High Speed Steel

cooLant hoLeS heLp
to cooL the poInt &
Remove chIpS
Allows drilling to greater depth
than other coolant fed drills
[AOH-25L]
FLuTE orDEr priCE aPPLICatIONs: Features: teChNICaL Data:
SizE
LEngTH # EaCH • For drilling operations where a coolant • Right hand (clockwise rotation) • Cylindrically ground.
35/64" 9" 01-150-335 $8.85 or oil delivery system is available. cutting direction. • Constant heavy duty web for
23/32 9 01-150-346 16.39 • For drilling holes in a variety or normal • With 2 holes through their length to greater strength.
51/64 9 01-150-351 13.07 steels, cast iron, and other ferrous and feed fluid to the drill. • Shank coolant entry to suit industry
53/64 9 01-150-353 13.84 non-ferrous metals and alloys. • Normal 118° drill point angle, notch standard toolholders.
27/32 9 01-150-354 13.84 • Used straight shank in appropriate point and rolled heel for better • Black finish.
55/64 9 01-150-355 13.84 coolant fed toolholder. coolant delivery & chip ejection.
29/32 9 01-150-358 14.36 • 22° flute helix and constant heavy duty noTE:
59/64 9 01-150-359 17.94 web design add to the overall strength • For best results when drilling under
61/64 9 01-150-361 14.86 of these drills and aid in chip removal. ♦ Limited Supply. 3/8" diameter, use a drill bushing or
1-1/32 9 01-150-366 15.92 pilot hole of same diameter.
