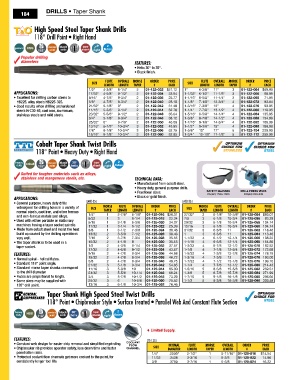

Page 186 - All Industrial Tool Supply | General Catalog

DRILLS • Taper Shank
184

High Speed Steel Taper Shank Drills
118° Drill Point • Right Hand

Popular drilling
diameters FeATureS:
• Helix 30° to 35°.
• Black finish.
FluTe overall MorSe orDer priCe FluTe overall MorSe orDer priCe
Size Size
lengTH lengTH Taper # eaCH lengTH lengTH Taper # eaCH
1/2" 4-3/8" 8-1/4" 2 01-122-032 $21.12 1" 6-3/8" 11" 3 01-122-064 $59.99
APPLICATIONS: 17/32" 4-5/8" 8-1/2" 2 01-122-034 23.64 1-1/32" 6-1/2" 11-1/8" 3 01-122-066 68.99
• Excellent for drilling carbon steels to 9/16" 4-7/8" 8-3/4" 2 01-122-036 25.77 1-1/16" 6-5/8" 11-1/4" 3 01-122-068 71.95
HB225, alloy steels HB225-325. 5/8" 4-7/8" 8-3/4" 2 01-122-040 28.18 1-1/8" 7-1/8" 12-3/4" 4 01-122-072 83.64
• Good results when drilling prehardened 21/32" 5-1/8" 9" 2 01-122-042 31.40 1-3/16" 7-3/8" 13" 4 01-122-076 93.95
steels HrC30-45, cast iron, alumimum, 11/16" 5-3/8" 9-1/4" 2 01-122-044 32.70 1-1/4" 7-7/8" 13-1/2" 4 01-122-080 118.95
stainless steels and mild steels. 23/32" 5-5/8" 9-1/2" 2 01-122-046 35.04 1-5/16" 8-5/8" 14-1/4" 4 01-122-084 135.95
3/4" 5-7/8" 9-3/4" 2 01-122-048 38.12 1-3/8" 8-7/8" 14-1/2" 4 01-122-088 154.99
25/32" 6" 9-7/8" 2 01-122-050 46.09 1-7/16" 9-1/8" 14-3/4" 4 01-122-092 169.99
13/16" 6-1/8" 10-3/4" 3 01-122-052 48.95 1-1/2" 9-3/8" 15" 4 01-122-096 189.99
7/8" 6-1/8" 10-3/4" 3 01-122-056 52.75 1-5/8" 10" 17" 5 01-122-104 229.99
15/16" 6-1/8" 10-3/4" 3 01-122-060 52.95 1-3/4" 10-1/8" 17-1/8" 5 01-122-112 259.99
Cobalt Taper Shank Twist Drills
118° Point • Heavy Duty • Right Hand

Suited for tougher materials such as alloys,
stainless and mangenese steels, etc. TeChNICAL DATA:
• Manufactured from cobalt steel.
• Heavy duty, general purpose drills.
• Fractional sizes. safety glasses drill press vises
PAGES 1594-1600
PAGES 838-839
APPLICATIONS: • Black or gold finish.
• General purpose, heavy duty drills [ACO-25] [ACO-25]
wdesigned for drilling holes in a variety of Size MorSe FluTe overall orDer priCe Size MorSe FluTe overall orDer priCe
normal steels, cast iron, and other ferrous Taper lengTH lengTH # eaCH Taper lengTH lengTH # eaCH
and non-ferrous metals and alloys. 1/4" 1 2-7/8" 6-1/8" 01-125-016 $20.31 27/32" 3 6-1/8" 10-3/8" 01-125-054 $89.07
83.29
01-125-018
01-125-056
• Used with either portable or stationary 9/32 1 1 3 3-1/8 6-1/4 01-125-020 22.34 7/8 3 3 6-1/8 10-3/4 01-125-058 104.74
6-3/8
10-3/4
6-1/8
5/16
24.37
29/32
machines having a taper socket spindle. 11/32 1 3-1/4 6-1/2 01-125-022 25.39 15/16 3 6-1/8 10-3/4 01-125-060 104.74
• Made from cobalt steel and resist the heat 3/8 1 3-1/2 7-3/8 01-125-024 30.46 31/32 3 6-3/8 11 01-125-062 118.46
build up caused by the drilling operations 13/32 2 3-5/8 7-1/2 01-125-026 30.46 1 3 6-3/8 11 01-125-064 118.46
very well. 7/16 2 3-7/8 7-3/4 01-125-028 35.55 1-1/32 4 6-1/2 12-1/4 01-125-066 138.22
• The taper shank is to be used in a 15/32 2 4-1/8 8 01-125-030 35.55 1-1/16 4 6-5/8 12-1/4 01-125-068 154.85
taper socket. 1/2 2 4-3/8 8-1/4 01-125-032 37.57 1-3/32 4 6-7/8 12-1/2 01-125-070 162.52
17/32 2 4-5/8 8-1/2 01-125-034 43.67 1-1/8 4 7-1/8 12-3/4 01-125-072 172.68
FeATureS: 9/16 2 4-7/8 8-3/4 01-125-036 44.68 1-5/32 4 7-3/8 12-7/8 01-125-074 178.79
• Normal spiral - helical flutes. 19/32 2 4-7/8 8-3/4 01-125-038 46.72 1-3/16 4 7-3/8 13 01-125-076 193.00
01-125-078 199.10
01-125-040
• Standard 118° point angle. 5/8 2 3 4-7/8 8-3/4 01-125-042 48.75 1-7/32 4 4 7-1/2 13-1/8 01-125-080 214.43
1-1/4
7-7/8
13-1/2
54.85
21/32
9-3/4
5-1/8
• Standard morse taper shanks correspond 11/16 3 5-3/8 10 01-125-044 65.00 1-5/16 5 8-5/8 15-5/8 01-125-082 259.51
to the drill diameter. 23/32 3 5-5/8 10-1/4 01-125-046 66.24 1-3/8 5 8-7/8 15-7/8 01-125-084 271.99
• Flutes are proportional to length. 3/4 3 5-7/8 10-1/2 01-125-048 73.29 1-7/16 5 9-1/8 16-1/8 01-125-088 296.66
• Some sizes may be supplied with 25/32 3 6 10-5/8 01-125-050 75.52 1-1/2 5 9-3/8 16-3/8 01-125-096 309.48
135° drill point. 13/16 3 6-1/8 10-3/4 01-125-052 76.46
Taper Shank High Speed Steel Twist Drills
118° Point • Chipbreaker Style • Surface Treated • Parallel Web And Constant Flute Section
♦ Limited Supply.
FeATureS: [TS-135]
• Constant web design for easier chip removal and simplified regrinding. coolant DeCiMal FluTe MorSe overall orDer priCe
flow
• Chipbreaker rib provides operator safety, less down time and faster channel Size DiaMeTer lengTH Taper lengTH # eaCH
penetration rates. 1/4" .2500" 2-1/2" 1 5-11/16" 01-120-816 $14.54
• Protected coolant flow channels get more coolant to the point, for 11/32 .3438 3-3/16 1 6-3/8 01-120-822 14.96
consistently longer tool life. 3/8 .3750 3-7/16 1 6-5/8 01-120-824 16.22
