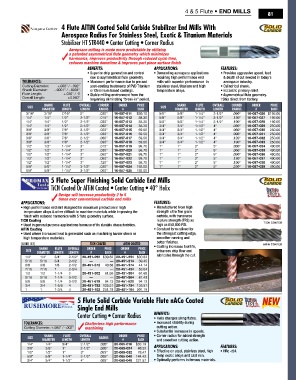

4 & 5 Flute • END MILLS
81

4 Flute AlTiN Coated Solid Carbide Stabilizer End Mills With
Aerospace Radius For Stainless Steel, Exotic & Titanium Materials
Stabilizer HT STR440 • Center Cutting • Corner Radius
Aeropsace milling is made more predictable by utilizing
a patented asymmetrical flute geometry which minimizes
harmonics, improves productivity through reduced cycle time,
reduces machine downtime & improves part piece surface finish
BeNeFITS: APPLICATIONS: FeATureS:
• Superior chip generation and control • Demanding aerospace applications • Provides aggressive speed, feed
due to asymmetrical flute geometry. requiring high performance end & depth of cut needed in today's
TolERANCES: • Maximum performance due to pre and mills with superior performance in aerospace industry.
Cutting Diameter: +.000" / -.002" post-coating treatments of PVD Titanium stainless steel, titanium and high • Cylindrical shank.
Shank Diameter: -.0001" / -.0004" or Chromium based coatings. temperature alloys. • Eccentric primary relief.
Flute Length: +.030" / -0 • Stable milling environment from the • Asymmetrical flute geometry.
Overall Length: ±0.060" beginning eliminating “break-in” period. †Ship direct from factory.
ShANk FluTE oVERAll CoRNER oRDER PRiCE ShANk FluTE oVERAll CoRNER oRDER PRiCE
SizE SizE
DiAMETER lENgTh lENgTh RADiuS # EACh DiAMETER lENgTh lENgTh RADiuS # EACh
3/16" 3/16" 7/16" 2" .030" 16-057-011 $30.10 5/8" 5/8" 1-1/4" 3-1/2" .090" 16-057-026 $192.00
1/4" 1/4" 1/2" 2-1/2" .015" 16-057-012 38.30 5/8" 5/8" 1-1/4" 3-1/2" .120" 16-057-027 192.00
1/4" 1/4" 1/2" 2-1/2" .030" 16-057-013 38.30 5/8" 5/8" 1-1/4" 3-1/2" .190" 16-057-028 192.00
1/4" 1/4" 1/2" 2-1/2" .060" 16-057-014 38.30 3/4" 3/4" 1-1/2" 4" .030" 16-057-029 250.00
3/8" 3/8" 7/8" 2-1/2" .020" 16-057-015 59.50 3/4" 3/4" 1-1/2" 4" .060" 16-057-030 250.00
3/8" 3/8" 7/8" 2-1/2" .030" 16-057-016 59.50 3/4" 3/4" 1-1/2" 4" .090" 16-057-031 250.00
3/8" 3/8" 7/8" 2-1/2" .060" 16-057-017 59.50 3/4" 3/4" 1-1/2" 4" .120" 16-057-032 250.00
3/8" 3/8" 7/8" 2-1/2" .090" 16-057-018 59.50 3/4" 3/4" 1-1/2" 4" .190" 16-057-033 250.00
1/2" 1/2" 1-1/4" 3" .015" 16-057-019 99.70 1" 1" 2" 5" .030" 16-057-034 490.00
1/2" 1/2" 1-1/4" 3" .030" 16-057-020 99.70 1" 1" 2" 5" .060" 16-057-035 490.00
1/2" 1/2" 1-1/4" 3" .060" 16-057-021 99.70 1" 1" 2" 5" .090" 16-057-036 490.00
1/2" 1/2" 1-1/4" 3" .090" 16-057-022 99.70 1" 1" 2" 5" .120" 16-057-037 490.00
1/2" 1/2" 1-1/4" 3" .120" 16-057-023 99.70 1" 1" 2" 5" .190" 16-057-038 490.00
5/8" 5/8" 1-1/4" 3-1/2" .030" 16-057-024 192.00 1" 1" 2" 5" .250" 16-057-039 490.00
5/8" 5/8" 1-1/4" 3-1/2" .060" 16-057-025 192.00
5 Flute Super Finishing Solid Carbide End Mills
TiCN Coated Or AlTiN Coated • Center Cutting • 40° Helix

Design will increase productivity 2 to 5
times over conventional carbide end mills
APPLICATIONS: FeATureS:
• High performance end mill designed for maximum production in high • Manufactured from high
temperature alloys & other difficult to machine materials while improving the strength ultra fine grain
finish with reduced harmonics with 5 flute geometry surface. carbide, with transverse
TiCN Coating rupture strength (TRS) as
• Used in general purpose applications because of its durable characteristics. high as 650,000 PSI. TiCN CoatED
AlTiN Coating • Constant form relived for
• Used where increased heat is generated such as machining harder steels or the strongest cutting edge,
high temperature materials. smoother running and
better finishes.
[SerieS 112] TiCN CoATED AlTiN CoATED • Coating increases tool life, alTiN CoatED
ShANk FluTE oVERAll oRDER PRiCE oRDER PRiCE
SizE enhances chip flow and
DiAMETER lENgTh lENgTh # EACh # EACh
1/4" 1/4" 3/4" 2-1/2" 20-451-252 $30.82 20-451-254 $30.82 lubricates through the cut.
5/16 5/16 3/4 2-1/2 — — 20-451-214 39.45
3/8 3/8 7/8 2-1/2 20-451-372 40.68 20-451-374 44.14
7/16 7/16 1 2-3/4 — — 20-451-434 53.04
1/2 1/2 1-1/4 3 20-451-502 61.68 20-451-504 61.68
9/16 9/16 1-1/4 3-1/2 — — 20-451-564 81.43
5/8 5/8 1-1/4 3-1/2 20-451-619 94.13 20-451-620 94.13
3/4 3/4 1-5/8 4 20-451-752 135.51 20-451-754 135.51
1 1 1-3/4 4 20-451-102 201.19 20-451-104 201.19
5 Flute Solid Carbide Variable Flute nACo Coated
Single End Mills
Center Cutting • Corner Radius BeNeFITS:
• Helix changes along flutes.
TolERANCES: Chatterless high performance • Increased stability during
Cutting Diameter: +.000" / -.002" machining cutting action.
• Substantial increases in speeds.
ShANk FluTE oVERAll oRDER PRiCE • Corner radius for added strength
SizE RADiuS
DiAMETER lENgTh lENgTh # EACh and smoother cutting action.
1/4" 1/4" 3/4" 2-1/2" .020" 20-065-016 $33.19 APPLICATIONS: FeATureS:
3/8" 3/8" 1" 2-1/2" .020" 20-065-024 48.35
1/2" 1/2" 1" 3" .025" 20-065-032 78.47 • Effective on steel, stainless steel, high • HRc <54.
5/8" 5/8" 1-1/4" 3-1/2" .035" 20-065-040 144.42 temp exotic alloys and cast iron.
3/4" 3/4" 1-1/2" 4" .035" 20-065-048 221.57 • Optimally performs in ferrous materials.
