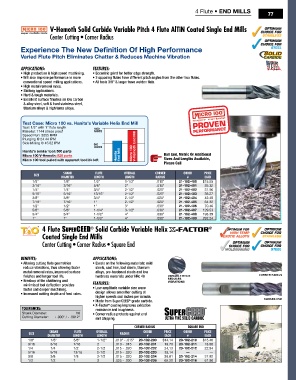

4 Flute • END MILLS
77

V-Hemoth Solid Carbide Variable Pitch 4 Flute AlTiN Coated Single End Mills
Center Cutting • Corner Radius

Experience The New Definition Of High Performance
Varied Flute Pitch Eliminates Chatter & Reduces Machine Vibration

APPLICATIONS: FeATureS:
• High production & high speed machining. • Eccentric grind for better edge strength.
• Will also improve performance in more • 2 opposing flutes have different pitch angles from the other two flutes.
conventional speed milling applications. • All tools 3/8” & larger have weldon flats.
• High metal removal rates.
• Slotting applications.
• Hard & tough materials.
• Excellent surface finishes on low carbon
& alloy steel, soft & hard stainless steel,
titanium alloys & high temp alloys.

Test Case: Micro 100 vs. Hanita's Variable Helix End Mill
Tool: 1/2" with 1" flute length
Material: 1144 stress proof
Speed Run: 3055 RPM
Plunging @ 24.44 IPM
Side Milling @ 45.82 IPM
Hanita's similar tool: 560 parts
Micro 100 V-Hemoth: 828 parts Ball End, Metric Or Additional
Micro 100 tool pulled with apparent tool life left Sizes And Lengths Available,
Please Call
SHANk FluTE oVErAll CorNEr ordEr PriCE
SizE
diAMETEr lENgTH lENgTH rAdiuS # EACH
1/8" 1/8" 1/2" 1-1/2" .010" 21-102-400 $15.55
3/16" 3/16" 5/8" 2" .010" 21-102-401 25.32
1/4" 1/4" 3/4" 2-1/2" .020" 21-102-402 31.56
5/16" 5/16" 13/16" 2-1/2" .020" 21-102-403 38.27
3/8" 3/8" 3/4" 2-1/2" .020" 21-102-404 42.48
7/16" 7/16" 1" 2-1/2" .020" 21-102-405 64.32
1/2" 1/2" 1" 3" .030" 21-102-406 70.46
5/8" 5/8" 1-1/4" 3-1/2" .030" 21-102-407 129.53
3/4" 3/4" 1-1/2" 4" .030" 21-102-408 193.39
1" 1" 1-1/2" 4" .030" 21-102-409 292.24
4 Flute SuperCEED Solid Carbide Variable Helix -FACTOR
®
®
Coated Single End Mills
Center Cutting • Corner Radius • Square End

BeNeFITS: APPLICATIONS:
• Altering cutting flute geometries • Excels on the following materials: mild
reduce vibrations, thus allowing faster steels, cast iron, tool steels, titanium
metal removal rates, improved surface alloys, pre-hardened steels and low
finishes and longer tool life. hardness materials under HRc 40 VaRIabLE HELIx CORNER RaDIuS
• Breakup of the chattering and REDuCES
VIbRaTIONS
minimized tool deflection provides FeATureS:
faster and deeper machining. • Low amplitude variable sine wave
• Increased cutting depth and feed rates. design allows smoother cutting at
higher speeds and inches per minute.
• Made from SuperCEED grade carbide. SquaRE END
®
• X-Factor coating improves oxidation
®
TolErANCES: resistance and toughness.
Shank Diameter: h6 • Corner radius protects against end
Cutting Diameter: +.000" / - .0012" mill chipping.
CorNEr rAdiuS SquArE ENd
SHANk FluTE oVErAll ordEr PriCE ordEr PriCE
SizE rAdiuS
diAMETEr lENgTH lENgTH # EACH # EACH
1/8" 1/8" 3/8" 1-1/2" .010" - .015" 20-102-200 $14.14 20-102-210 $13.46
3/16 3/16 7/16 2 .010 - .015 20-102-201 19.70 20-102-211 18.80
1/4 1/4 1/2 2-1/2 .015 - .020 20-102-202 24.13 20-102-212 22.94
5/16 5/16 13/16 2-1/2 .015 - .020 20-102-203 33.14 — —
3/8 3/8 7/8 2-1/2 .015 - .020 20-102-204 39.81 20-102-214 37.82
1/2 1/2 1 3 .025 - .030 20-102-206 65.20 20-102-216 61.90
