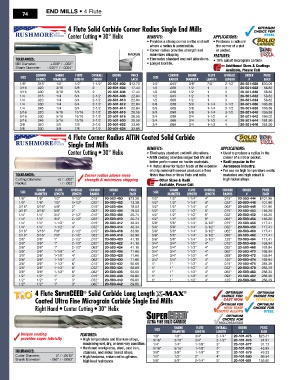

Page 76 - All Industrial Tool Supply | General Catalog

END MILLS • 4 Flute
74

4 Flute Solid Carbide Corner Radius Single End Mills
Center Cutting • 30° Helix Benefits: APPLiCAtiOns:
• Provides a strong corner on the end mill • Produces a radius in
where a radius is permissible. the corner of a slot
• Corner radius provides strength and or pocket.
minimizes chipping. feAtures:
TolERanCES: • Eliminates standard end mill alterations. • 10% cobalt micrograin carbide.
Mill Diameter: +.000" / -.002" • Longer tool life. Additional Sizes & Coatings
Shank Diameter: -.0001" / -.0004"
Available, Please Call
CoRnER Shank FlUTE ovERall oRdER PRiCE CoRnER Shank FlUTE ovERall oRdER PRiCE
SizE SizE
RadiUS diaMETER lEngTh lEngTh # EaCh RadiUS diaMETER lEngTh lEngTh # EaCh
1/8" .015" 1/8" 1/2" 1-1/2" 20-501-602 $12.73 3/8" .045" 3/8" 7/8" 2-1/2" 20-501-626 $33.09
3/16 .020 3/16 5/8 2 20-501-604 17.44 1/2 .020 1/2 1 3 20-501-628 58.82
3/16 .030 3/16 5/8 2 20-501-606 17.44 1/2 .030 1/2 1 3 20-501-630 58.82
1/4 .015 1/4 3/4 2-1/2 20-501-608 22.04 1/2 .045 1/2 1 3 20-501-632 58.82
1/4 .020 1/4 3/4 2-1/2 20-501-610 22.04 1/2 .060 1/2 1 3 20-501-634 58.82
1/4 .030 1/4 3/4 2-1/2 20-501-612 22.04 5/8 .030 5/8 1-1/4 3-1/2 20-501-636 106.89
1/4 .045 1/4 3/4 2-1/2 20-501-614 22.04 5/8 .060 5/8 1-1/4 3-1/2 20-501-638 106.89
5/16 .020 5/16 13/16 2-1/2 20-501-616 28.59 5/8 .090 5/8 1-1/4 3-1/2 20-501-640 106.89
5/16 .030 5/16 13/16 2-1/2 20-501-618 28.59 3/4 .030 3/4 1-1/2 4 20-501-642 166.02
5/16 .045 5/16 13/16 2-1/2 20-501-620 28.59 3/4 .060 3/4 1-1/2 4 20-501-644 161.90
3/8 .020 3/8 7/8 2-1/2 20-501-622 33.09 3/4 .090 3/4 1-1/2 4 20-501-646 161.90
3/8 .030 3/8 7/8 2-1/2 20-501-624 33.09
4 Flute Corner Radius alTin Coated Solid Carbide
Single End Mills Benefits: APPLiCAtiOns:
Center Cutting • 30° Helix • Eliminates standard end mill alterations. • Used to produce a radius in the
• AlTiN coating provides longer tool life and corner of a slot or pocket.
better performance on harder materials. • Radii popular in the
• 4 flutes allow for faster feeds at the expense Aerospace Industry.
of chip removal however produces a finer • For use on high temperature exotic
TolERanCES: Corner radius allows more finish than two or three flute end mills. materials and high cobalt &
Cutting Diameter: +0 / -.002" strength & minimizes chipping Other Sizes & Radii high nickel alloys.
Radius: + / -.002" Available, Please Call
Shank FlUTE ovERall CoRnER oRdER PRiCE Shank FlUTE ovERall CoRnER oRdER PRiCE
SizE SizE
diaMETER lEngTh lEngTh RadiUS # EaCh diaMETER lEngTh lEngTh RadiUS # EaCh
1/8" 1/8" 1/2" 1-1/2" .015" 20-503-400 $13.38 1/2" 1/2" 1-1/4" 4" .015" 20-503-444 $101.96
1/8" 1/8" 1/2" 1-1/2" .032" 20-503-402 13.38 1/2" 1/2" 1-1/4" 4" .032" 20-503-446 101.96
3/16" 3/16" 5/8" 2" .015" 20-503-404 18.53 1/2" 1/2" 1-1/4" 4" .062" 20-503-448 101.96
3/16" 3/16" 5/8" 2" .032" 20-503-406 18.53 1/2" 1/2" 1-1/2" 6" .015" 20-503-450 146.25
1/4" 1/4" 3/4" 2-1/2" .015" 20-503-408 25.74 1/2" 1/2" 1-1/2" 6" .032" 20-503-452 146.25
1/4" 1/4" 3/4" 2-1/2" .032" 20-503-410 25.74 1/2" 1/2" 1-1/2" 6" .062" 20-503-454 146.25
1/4" 1/4" 1-1/2" 4" .015" 20-503-412 46.34 5/8" 5/8" 1-1/4" 3-1/2" .015" 20-503-456 117.41
1/4" 1/4" 1-1/2" 4" .032" 20-503-414 46.34 5/8" 5/8" 1-1/4" 3-1/2" .032" 20-503-458 117.41
5/16" 5/16" 7/8" 2-1/2" .015" 20-503-416 33.98 5/8" 5/8" 1-1/4" 3-1/2" .062" 20-503-460 117.41
5/16" 5/16" 7/8" 2-1/2" .032" 20-503-418 33.98 5/8" 5/8" 1-1/4" 3-1/2" .093" 20-503-462 117.41
3/8" 3/8" 1" 2-1/2" .015" 20-503-420 41.19 5/8" 5/8" 1-1/4" 3-1/2" .125" 20-503-464 117.41
3/8" 3/8" 1" 2-1/2" .032" 20-503-422 41.19 3/4" 3/4" 1-1/2" 4" .015" 20-503-466 169.94
3/8" 3/8" 1" 2-1/2" .062" 20-503-424 41.19 3/4" 3/4" 1-1/2" 4" .032" 20-503-468 169.94
3/8" 3/8" 1-1/8" 4" .015" 20-503-426 71.06 3/4" 3/4" 1-1/2" 4" .062" 20-503-470 169.94
3/8" 3/8" 1-1/8" 4" .032" 20-503-428 71.06 3/4" 3/4" 1-1/2" 4" .093" 20-503-472 169.94
3/8" 3/8" 1-1/8" 4" .062" 20-503-430 71.06 3/4" 3/4" 1-1/2" 4" .125" 20-503-474 169.94
3/8" 3/8" 1-1/2" 6" .015" 20-503-432 92.69 1" 1" 1-1/2" 4" .015" 20-503-476 288.39
3/8" 3/8" 1-1/2" 6" .032" 20-503-434 92.69 1" 1" 1-1/2" 4" .032" 20-503-478 288.39
3/8" 3/8" 1-1/2" 6" .062" 20-503-436 92.69 1" 1" 1-1/2" 4" .062" 20-503-480 288.39
1/2" 1/2" 1" 3" .015" 20-503-438 69.00 1" 1" 1-1/2" 4" .093" 20-503-482 288.39
1/2" 1/2" 1" 3" .032" 20-503-440 69.00 1" 1" 1-1/2" 4" .125" 20-503-484 288.39
1/2" 1/2" 1" 3" .062" 20-503-442 69.00
4 Flute SuperCEED Solid Carbide long length -MAX
®
®
Coated Ultra Fine Micrograin Carbide Single End Mills
Right Hand • Center Cutting • 30° Helix

Shank FlUTE ovERall oRdER PRiCE
SizE
Unique coating feAtures: diaMETER lEngTh lEngTh # EaCh
provides super lubricity • High temperature and titanium alloys, 1/8" 1/8" 3/4" 2-1/4" 20-101-075 $23.31
20-101-076
3/16"
2-1/2"
24.91
3/16"
3/4"
machining wet, dry, or semi-dry condition. 1/4" 1/4" 1-1/8" 3" 20-101-077 31.73
• Hardened workpieces, steel, cast iron, 5/16" 5/16" 1-1/8" 3" 20-101-078 45.95
TolERanCES: stainless, and nickel based alloys. 3/8" 3/8" 1-1/8" 3" 20-101-079 49.33
Cutter Diameter: 0" / -.0012" • High hardness, enhanced toughness, 1/2" 1/2" 2" 4" 20-101-080 86.54
Shank Diameter: -.000" / -.0003" high heat resistance. 5/8" 5/8" 2-1/4" 5" 20-101-081 185.60
