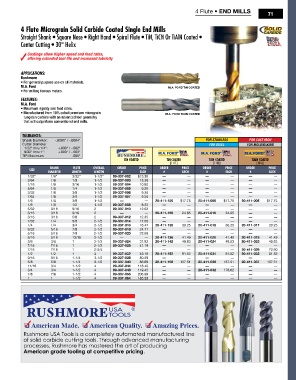

4 Flute • END MILLS
71

4 Flute Micrograin Solid Carbide Coated Single End Mills
Straight Shank • Square Nose • Right Hand • Spiral Flute • TiN, TiCN Or TiAlN Coated •
Center Cutting • 30° Helix

Coatings allow higher speed and feed rates,
offering extended tool life and increased lubricity

APPLICATIONS:
Rushmore
• For general purpose use on all materials.
M.A. Ford M.A. ForD TiN CoATED
• For milling ferrous metals.
FeATureS:
M.A. Ford
• Maximum rigidity and feed rates.
• Manufactured from 10% cobalt premium micrograin M.A. ForD TiAIN CoATED
tungsten carbide with an advanced tool geometry
that will outperform conventional end mills.

TolEranCES:
Shank Diameter: -.0000" / -.0004" For StainleSS For CaSt iron

Cutter Diameter For Steel For MoldMaking
1/32" thru 1/4": +.000" / -.002"

9/32" thru 1": +.000" / -.003"

TIR Maximum: .005"
Tin CoaTEd Tin CoaTEd TiCn CoaTEd Tialn CoaTEd

[111T] [111C] [111A]
Shank FluTE ovErall ordEr PriCE ordEr PriCE ordEr PriCE ordEr PriCE
SizE
diaMETEr lEngTh lEngTh # EaCh # EaCh # EaCh # EaCh
1/32" 1/8" 3/32" 1-1/2" 09-337-002 $13.38 — — — — — —
3/64 1/8 1/8 1-1/2 09-337-003 13.38 — — — — — —
1/16 1/8 3/16 1-1/2 09-337-004 10.80 — — — — — —
5/64 1/8 1/4 1-1/2 09-337-005 9.26 — — — — — —
3/32 1/8 3/8 1-1/2 09-337-006 9.26 — — — — — —
7/64 1/8 3/8 1-1/2 09-337-007 9.26 — — — — — —
1/8 1/8 3/8 1-1/2 — — 20-411-106 $17.75 20-411-006 $17.75 20-411-005 $17.75
1/8 1/8 1/2 1-1/2 09-337-008 8.23 — — — — — —
5/32 3/16 9/16 2 09-337-010 12.62 — — — — — —
3/16 3/16 9/16 2 — — 20-411-120 24.85 20-411-010 24.85 — —
3/16 3/16 5/8 2 09-337-012 12.35 — — — — — —
7/32 1/4 5/8 2-1/2 09-337-014 17.50 — — — — — —
1/4 1/4 3/4 2-1/2 09-337-016 16.47 20-411-130 30.25 20-411-018 30.25 20-411-017 30.25
9/32 5/16 7/8 2-1/2 09-337-018 24.71 — — — — — —
5/16 5/16 7/8 2-1/2 09-337-020 23.68 — — — — — —
5/16 5/16 13/16 2-1/2 — — 20-411-136 41.49 20-411-020 41.49 20-411-019 41.49
3/8 3/8 1 2-1/2 09-337-024 31.92 20-411-142 49.83 20-411-024 49.83 20-411-023 49.83
7/16 7/16 1 2-1/2 09-337-028 41.19 — — — — — —
7/16 7/16 1 2-3/4 — — — — — — 20-411-029 72.90
1/2 1/2 1 3 09-337-032 49.18 20-411-152 81.52 20-411-034 81.52 20-411-033 81.52
9/16 9/16 1-1/4 3-1/2 09-337-036 80.29 — — — — — —
5/8 5/8 1-1/4 3-1/2 09-337-040 83.89 20-411-158 137.51 20-411-038 137.51 20-411-037 137.51
11/16 3/4 1-1/2 4 09-337-044 118.40 — — — — — —
3/4 3/4 1-1/2 4 09-337-048 119.43 — — 20-411-042 176.62 — —
7/8 7/8 1-1/2 4 09-337-056 205.99 — — — — — —
1 1 1-1/2 4 09-337-064 185.39 — — — — — —
