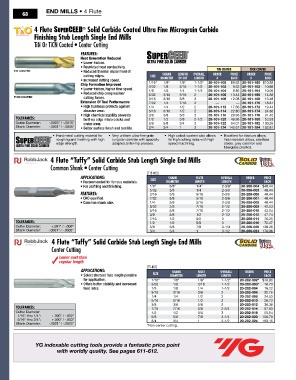

Page 70 - All Industrial Tool Supply | General Catalog

END MILLS • 4 Flute
68

4 Flute SuperCEED Solid Carbide Coated Ultra Fine Micrograin Carbide
®
Finishing Stub Length Single End Mills
TiN Or TiCN Coated • Center Cutting

Features:
Heat Generation Reduced
• Lower friction.
• Restricted heat conductivity.
TiN CoaTed • Reduced thermal impairment of Tin CoaTED TiCn CoaTED
cutting edges. SizE Shank LEngTh ovEraLL orDEr PriCE orDEr PriCE
• Increased cutting speed. DiaMETEr oF CUT LEngTh # EaCh # EaCh
Chip Formation Improved 1/16" 1/8" 1/8" 1-1/2" 20-101-100 $9.62 20-101-160 $10.88
• Lower friction, higher flow speed. 3/32 1/8 3/16 1-1/2 20-101-102 9.62 20-101-162 10.88
20-101-104
8.86 20-101-164
1/8
1/8
10.05
1-1/2
1/4
• Reduced chip compression/
TiCN CoaTed cutting forces. 5/32 3/16 5/16 2 2 20-101-106 13.44 20-101-166 14.88
3/8
12.08 20-101-168
13.48
20-101-108
3/16
3/16
Extension Of Tool Performance 7/32 1/4 7/16 2 — — 20-101-170 18.81
• High hardness protects against 1/4 1/4 1/2 2 20-101-112 17.66 20-101-172 19.44
abrasive wear. 5/16 5/16 1/2 2 20-101-114 22.80 20-101-174 24.86
• High chemical stability prevents 3/8 3/8 5/8 2 20-101-116 28.96 20-101-176 31.42
ToLEranCES: built-up edge micro cracks and 1/2 1/2 5/8 2-1/2 20-101-120 49.96 20-101-180 53.53
Cutter Diameter: -.0005" / -.0015" crater wear. 5/8 5/8 3/4 3 20-101-122 94.01 20-101-182 100.26
Shank Diameter: -.0001" / -.0005" • Better surface finish and tool life. 3/4 3/4 1 3 20-101-124 142.67 20-101-184 152.81
4 Flute “Tuffy” Solid Carbide Stub Length Single End Mills
Common Shank • Center Cutting
[T12-403]
aPPLICatIONs: Shank FLUTE ovEraLL orDEr PriCE
• Recommended for ferrous materials. SizE DiaMETEr LEngTh LEngTh # EaCh
• For profiling and finishing. 1/8" 3/8" 1/4" 2-3/8" 20-206-004 $40.44
5/32 3/8 1/4 2-3/8 20-206-005 40.44
Features: 3/16 3/8 5/16 2-3/8 20-206-006 40.44
• CNC qualified. 7/32 3/8 5/16 2-3/8 20-206-007 40.44
• Common shank size. 1/4 3/8 5/16 2-3/8 20-206-008 40.44
9/32 3/8 7/16 2-1/2 20-206-009 42.53
5/16 3/8 7/16 2-1/2 20-206-010 43.04
3/8 3/8 1/2 2-1/2 20-206-012 47.74
7/16 1/2 5/8 3 20-206-014 76.25
ToLEranCES: 1/2 1/2 5/8 3 20-206-016 72.47
Cutter Diameter: +.001" / -.000" 5/8 5/8 7/8 3-1/4 20-206-020 120.26
Shank Diameter: -.0001" / -.0002" 3/4 3/4 1 3-1/2 20-206-024 178.96
4 Flute “Tuffy” Solid Carbide Stub Length Single End Mills
Center Cutting

Lower cost than
regular length
[TS-401]
aPPLICatIONs: Shank FLUTE ovEraLL orDEr PriCE
• Select shortest flute length possible SizE DiaMETEr LEngTh LEngTh # EaCh
for application. 1/16" 1/8" 1/8" 1-1/2" 20-202-002* $16.83
• Offers better stability and increased 3/32 1/8 3/16 1-1/2 20-202-003* 16.73
feed rates. 1/8 1/8 1/4 1-1/2 20-202-004 16.32
3/16 3/16 3/8 2 20-202-006 22.75
1/4 1/4 1/2 2 20-202-008 24.53
5/16 5/16 1/2 2 20-202-010 26.72
3/8 3/8 5/8 2 20-202-012 36.36
ToLEranCES: 7/16 7/16 5/8 2-3/4 20-202-014 57.83
Cutter Diameter 1/2 1/2 5/8 3 20-202-016 55.64
1/16" thru 1/4": +.000" / -.002" 5/8 5/8 7/8 3-1/4 20-202-020 106.79
5/16" thru 3/4": +.000" / -.003" 3/4 3/4 1 3-1/2 20-202-024 163.15
Shank Diameter: -.0001" / -.0002"
*Non-center cutting.

YG indexable cutting tools provide a fantastic price point
with worldly quality. See pages 611-612.
