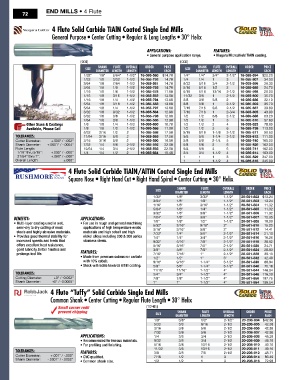

END MILLS • 4 Flute
72

4 Flute Solid Carbide TiAlN Coated Single End Mills
General Purpose • Center Cutting • Regular & Long Lengths • 30° Helix

APPLiCAtiOns: feAtures:
• General purpose application range. • Niagara Microshield TiAlN coating.
[C430] [C430]
ShANk FluTE ovErAll orDEr PriCE ShANk FluTE ovErAll orDEr PriCE
SizE SizE
DiAMETEr lENgTh lENgTh # EACh DiAMETEr lENgTh lENgTh # EACh
1/32" 1/8" 5/64" 1-1/2" 16-085-580 $14.70 1/4" 1/4" 3/4" 2-1/2" 16-085-594 $20.20
1/32 1/8 3/32 1-1/2 16-055-792 14.70 1/4 1/4 1 3 16-055-807 34.30
3/64 1/8 7/64 1-1/2 16-085-581 14.70 9/32 5/16 3/4 2-1/2 16-085-596 26.30
3/64 1/8 1/8 1-1/2 16-055-793 14.70 5/16 5/16 1/2 2 16-085-685 24.70
1/16 1/8 1/8 1-1/2 16-085-678 11.60 5/16 5/16 13/16 2-1/2 16-085-598 28.00
1/16 1/8 3/16 1-1/2 16-085-582 13.60 11/32 3/8 1 2-1/2 16-085-600 35.70
1/16 1/8 1/4 1-1/2 16-055-794 13.60 3/8 3/8 5/8 2 16-085-686 32.10
5/64 1/8 3/16 1-1/2 16-085-583 13.60 3/8 3/8 1 2-1/2 16-085-602 35.70
5/64 1/8 1/4 1-1/2 16-055-797 13.60 7/16 7/16 5/8 2-1/2 16-085-687 39.80
3/32 1/8 9/32 1-1/2 16-085-584 12.90 7/16 7/16 1 2-3/4 16-085-605 43.90
3/32 1/8 3/8 1-1/2 16-055-798 12.90 1/2 1/2 5/8 2-1/2 16-085-688 53.20
7/64 1/8 3/8 1-1/2 16-085-585 12.90 1/2 1/2 1 3 16-085-610 57.60
Other Sizes & Coatings 1/8 1/8 1/4 1-1/2 16-085-680 10.70 1/2 1/2 2 4 16-055-823 78.90
Available, Please Call 1/8 1/8 1/2 1-1/2 16-085-586 11.90 1/2 1/2 3 6 16-085-739 113.00
5/32 3/16 1/2 2 16-085-588 17.50 9/16 9/16 1-1/8 3-1/2 16-085-611 98.50
TolErANCES: 11/64 3/16 5/8 2 16-085-589 17.50 5/8 5/8 1-1/4 3-1/2 16-085-612 111.00
Cutter Diameter: +.000" / -.002" 3/16 3/16 5/8 2 16-085-590 16.50 5/8 5/8 2-1/4 5 16-085-740 165.00
Shank Diameter: +.0001" / -.0004" 7/32 1/4 5/8 2-1/2 16-085-592 22.00 5/8 5/8 2 6 16-055-826 162.00
Flute Length 15/64 1/4 3/4 2-1/2 16-085-593 22.00 5/8 5/8 3 6 16-085-741 162.00
1/16" thru 5/16": +.030" / -.000" 1/4 1/4 1/2 2 16-085-684 18.40 3/4 3/4 1-1/2 4 16-085-614 163.00
21/64" thru 1": +.060" / -.000" 1 1 1 3 16-055-829 247.00
Overall Length: ±.060" 1 1 1-1/2 4 16-085-616 245.00
4 Flute Solid Carbide TiAlN/AlTiN Coated Single End Mills
Square Nose • Right Hand Cut • Right Hand Spiral • Center Cutting • 30° Helix

ShANk FluTE ovErAll orDEr PriCE
SizE
DiAMETEr lENgTh lENgTh # EACh
1/32" 1/8" 3/32" 1-1/2" 20-501-802 $13.24
3/64" 1/8" 1/8" 1-1/2" 20-501-803 13.24
1/16" 1/8" 3/16" 1-1/2" 20-501-804 11.32
5/64" 1/8" 1/4" 1-1/2" 20-501-805 11.32
3/32" 1/8" 3/8" 1-1/2" 20-501-806 11.32
Benefits: APPLiCAtiOns: 7/64" 1/8" 3/8" 1-1/2" 20-501-807 12.35
• Multi-layer coating used in wet, • For use in rough and general machining 1/8" 1/8" 1/2" 1-1/2" 20-501-808 10.08
semi-dry to dry cutting of most applications of high temperature exotic 5/32" 3/16" 9/16" 2" 20-501-810 15.23
5/8"
14.41
3/16"
20-501-812
2"
3/16"
steels and highly abrasive materials. materials and high cobalt and high 7/32" 1/4" 5/8" 2-1/2" 20-501-814 21.10
• Provides good thermal stability for nickel alloys including 200 & 300 series 1/4" 1/4" 3/4" 2-1/2" 20-501-816 16.26
increased speeds and feeds that stainless steels. 9/32" 5/16" 7/8" 2-1/2" 20-501-818 28.62
offers excellent heat resistance, 5/16" 5/16" 7/8" 2-1/2" 20-501-820 24.71
good lubricity, better finishes and 3/8" 3/8" 7/8" 2-1/2" 20-501-824 28.83
prolongs tool life. feAtures: 7/16" 7/16" 1" 2-1/2" 20-501-828 39.13
• Made from premium submicron carbide 1/2" 1/2" 1" 3" 20-501-832 42.49
with 10% cobalt. 9/16" 9/16" 1-1/4" 3-1/2" 20-501-836 80.94
• Stock will rotate towards AlTiN coating. 5/8" 5/8" 1-1/4" 3-1/2" 20-501-840 75.18
11/16" 11/16" 1-1/2" 4" 20-501-844 146.04
TolErANCES: 3/4" 3/4" 1-1/2" 4" 20-501-848 116.38
Cutting Diameter: +0" / -0.002" 7/8" 7/8" 1-1/2" 4" 20-501-856 197.75
Shank Diameter: +0" / -0.0005" 1" 1" 1-1/2" 4" 20-501-864 190.54
4 Flute “Tuffy” Solid Carbide Single End Mills
Common Shank • Center Cutting • Regular Flute Length • 30° Helix
Small corner radii [T12-405]
prevent chipping ShANk FluTE ovErAll orDEr PriCE
SizE
DiAMETEr lENgTh lENgTh # EACh
1/8" 3/8" 1/2" 2-1/2" 20-208-004 $42.38
5/32 3/8 9/16 2-1/2 20-208-005 42.38
3/16 3/8 5/8 2-1/2 20-208-006 42.38
7/32 3/8 5/8 2-1/2 20-208-007 42.38
APPLiCAtiOns: 1/4 3/8 3/4 2-1/2 20-208-008 45.39
• Recommended for ferrous materials. 9/32 3/8 3/4 2-1/2 20-208-009 49.16
• For profiling and finishing. 5/16 3/8 13/16 2-1/2 20-208-010 49.16
TolErANCES: feAtures: 11/32 3/8 13/16 2-1/2 20-208-011 49.16
20-208-012
2-1/2
48.71
7/8
3/8
3/8
Cutter Diameter: +.001" / -.000" • CNC qualified. 7/16 1/2 1 3 20-208-014 83.49
Shank Diameter: -.0001" / -.0002" • Common shank size. 1/2 1/2 1 3 20-208-016 72.93
