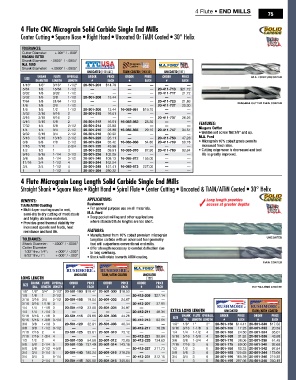

Page 77 - All Industrial Tool Supply | General Catalog

4 Flute • END MILLS
75

4 Flute CnC Micrograin Solid Carbide Single End Mills
Center Cutting • Square Nose • Right Hand • Uncoated Or TiAlN Coated • 30° Helix

ToLEranCES:
Cutter Diameter: +.001" / -.000"
niagara CuTTEr
Shank Diameter: -.0000" / -.0004"

M.a. Ford
Shank Diameter: +.0000" / -.0005"
unCoaTEd [1501-NC] Tialn CoaTEd [CNC430] unCoaTEd [117]
Shank FLuTE ovEraLL ordEr PriCE ordEr PriCE ordEr PriCE M.a. ForD UNcoatED
SizE
diaMETEr LEngTh LEngTh # EaCh # EaCh # EaCh
1/16" 1/8" 3/16" 1-1/2" 20-501-204 $14.79 — — — —
5/64 1/8 15/64 1-1/2 — — — — 20-411-713 $21.72
3/32 1/8 9/32 1-1/2 — — — — 20-411-717 21.72
3/32 1/8 3/8 1-1/2 20-501-206 13.44 — — — —
7/64 1/8 21/64 1-1/2 — — — — 20-411-723 21.86 NIaGara cUttEr tialN coatED
1/8 1/8 3/8 1-1/2 — — — — 20-411-727 20.30
1/8 1/8 1/2 1-1/2 20-501-208 13.44 16-085-861 $19.10 — —
5/32 3/16 9/16 2 20-501-210 16.61 — — — —
3/16 3/16 9/16 2 — — — — 20-411-737 28.26
3/16 3/16 5/8 2 20-501-212 16.61 16-085-863 25.30 — — feAtures:
7/32 1/4 5/8 2-1/2 20-501-214 23.88 — — — — Niagara Cutter
1/4 1/4 3/4 2-1/2 20-501-216 23.88 16-085-865 29.10 20-411-747 34.51
9/32 5/16 3/4 2-1/2 20-501-218 30.92 — — — — • Weldon set screw flat 3/8” and up.
5/16 5/16 13/16 2-1/2 20-501-220 28.11 — — 20-411-753 47.28 M.A. Ford
3/8 3/8 7/8 2-1/2 20-501-224 35.42 16-085-868 54.80 20-411-759 56.78 • Micrograin 10% cobalt grade permits
7/16 7/16 1 2-3/4 20-501-228 45.96 — — — — increased feed rates.
1/2 1/2 1 3 20-501-232 59.91 16-085-870 87.90 20-411-769 92.84 • Cutting edge wear is decreased and tool
9/16 9/16 1-1/4 3-1/2 20-501-236 102.25 — — — — life is greatly improved.
5/8 5/8 1-1/4 3-1/2 20-501-240 108.13 16-085-872 155.00 — —
11/16 3/4 1-1/2 4 20-501-244 162.54 — — — —
3/4 3/4 1-1/2 4 20-501-248 151.41 16-085-873 227.00 — —
1 1 1-1/2 4 20-501-264 280.22 — — — —
4 Flute Micrograin Long Length Solid Carbide Single End Mills
Straight Shank • Square Nose • Right Hand • Spiral Flute • Center Cutting • Uncoated & TiAlN/AlTiN Coated • 30° Helix

Benefits: APPLiCAtiOns: Long length provides
TiAlN/AlTiN Coating Rushmore access at greater depths
• Multi-layer coating used in wet, • For general purpose use on all materials.
semi-dry to dry cutting of most steels M.A. Ford
and highly abrasive materials. • Deep pocket milling and other applications
• Provides good thermal stability for where standard flute lengths are too short.
increased speeds and feeds, heat
resistance and tool life. feAtures:
• Manufactured from 10% cobalt premium micrograin
ToLEranCES: tungsten carbide with an advanced tool geometry UNcoatED
Shank Diameter: -.0000" / -.0005" that will outperform conventional end mills.
Cutter Diameter • Offer strength necessary to combat deflection due
1/32" thru 1/4": +.000" / -.002" to long overhang.
9/32" thru 1": +.000" / -.003" • Stock will rotate towards AlTiN coating.

tialN coatED

unCoaTEd Tialn/alTin CoaTEd unCoaTEd
Long LEngTh [122]
Shank FLuTE ovEraLL ordEr PriCE ordEr PriCE ordEr PriCE
SizE
dia. LEngTh LEngTh # EaCh # EaCh # EaCh Extra LoNG LENGth
1/8" 1/8" 3/4" 2-1/2" 20-501-100 $16.47 20-501-300 $18.53 — —
1/8 1/8 1 2-1/2 — — — — 20-412-205 $27.14
3/16 3/16 3/4 2-1/2 20-501-105 19.04 20-501-302 24.67 — —
3/16 3/16 1/1/8 3 — — — — 20-412-207 37.91
1/4 1/4 1-1/8 3 20-501-110 23.68 20-501-304 34.97 — —
1/4 1/4 1-1/4 3 — — — — 20-412-211 46.31 ExTra Long LEngTh unCoaTEd Tialn/alTin CoaTEd
5/16 5/16 1-1/8 3 20-501-115 29.86 20-501-306 44.28 — — SizE Shank FLuTE ovEraLL ordEr PriCE ordEr PriCE
5/16 5/16 1-3/8 3-1/4 — — — — 20-412-213 63.51 dia. LEngTh LEngTh # EaCh # EaCh
3/8 3/8 1-1/8 3 20-501-120 32.91 20-501-308 46.34 — — 1/8" 1/8" 1" 3" 20-501-150 $14.41 20-501-330 $17.50
3/8 3/8 1-1/2 3-1/2 — — — — 20-412-217 76.26 3/16 3/16 1-1/8 3 20-501-155 17.25 20-501-332 20.59
7/16 7/16 2 4 20-501-125 55.61 20-501-310 73.12 — — 1/4 1/4 1-1/2 4 20-501-160 24.50 20-501-334 35.01
7/16 7/16 1-3/4 4 — — — — 20-412-221 98.64 5/16 5/16 1-5/8 4 20-501-165 31.92 20-501-336 43.88
1/2 1/2 2 4 20-501-130 54.58 20-501-312 72.09 20-412-225 124.63 3/8 3/8 1-3/4 4 20-501-170 38.06 20-501-338 51.49
5/8 5/8 2-1/4 5 20-501-135 137.49 20-501-314 143.16 — — 7/16 7/16 3 6 20-501-175 69.00 20-501-340 92.69
5/8 5/8 2-1/2 4-5/8 — — — — 20-412-227 211.73 1/2 1/2 3 6 20-501-180 80.33 20-501-342 97.84
3/4 3/4 2-1/4 5 20-501-140 180.24 20-501-316 216.29 — — 5/8 5/8 3 6 20-501-185 125.65 20-501-344 175.09
3/4 3/4 3 5-1/4 — — — — 20-412-231 312.15 3/4 3/4 3 6 20-501-190 185.39 20-501-346 219.38
1 1 2-1/4 5 20-501-145 305.58 20-501-318 345.04 — — 1 1 3 6 20-501-195 297.66 20-501-348 350.19
