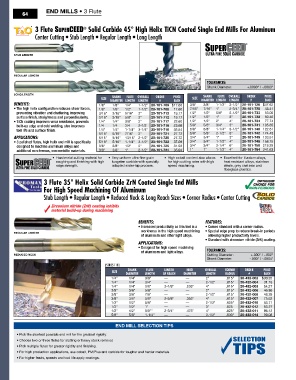

END MILLS • 3 Flute
64
3 Flute SuperCEED Solid Carbide 45° High Helix TiCN Coated Single End Mills For Aluminum
®
Center Cutting • Stub Length • Regular Length • Long Length
Stub length
regular length
TOlErANCES:
Shank Diameter: +.0000" / -.0003"
long length SHANk FluTE OvErAll OrDEr PriCE
OvErAll
SHANk
FluTE
SiZE DiAMETEr lENgTH lENgTH OrDEr PriCE SiZE DiAMETEr lENgTH lENgTH # EACH
EACH
#
Benefits: 1/8" 1/8" 1/4" 1-1/2" 20-101-709 $17.60 3/8" 3/8" 1-1/2" 3-1/2" 20-101-726 $47.62
• The high helix configuration reduces shear forces, 1/8" 1/8" 1/2" 1-1/2" 20-101-708 17.60 7/16" 7/16" 1" 2-3/4" 20-101-728 48.41
preventing vibration and chattering, improving 3/16" 3/16" 5/16" 2" 20-101-713 19.17 1/2" 1/2" 5/8" 2-1/2" 20-101-733 53.05
surface finish, straightness and perpendicularity. 3/16" 3/16" 5/8" 2" 20-101-712 19.17 1/2" 1/2" 1" 3" 20-101-732 59.46
• TiCN coating improves wear resistance, prevents 1/4" 1/4" 3/8" 2" 20-101-717 22.60 1/2" 1/2" 2" 4" 20-101-734 77.74
built-up edge and cold welding, also improves 1/4 1/4 3/4 2-1/2 20-101-716 23.68 5/8" 5/8" 3/4" 3" 20-101-741 105.85
tool life and surface finish. 1/4" 1/4" 1-1/4" 3-1/4" 20-101-718 33.54 5/8" 5/8" 1-1/4" 3-1/2" 20-101-740 122.61
5/16" 5/16" 7/16" 2" 20-101-721 27.72 5/8" 5/8" 2-1/2" 5" 20-101-742 174.43
APPLiCAtiOns: 5/16" 5/16" 13/16" 2-1/2" 20-101-720 27.72 3/4" 3/4" 1" 3" 20-101-749 133.51
• 3 polished flutes, high helix end mill is specifically 5/16" 5/16" 1-1/4" 3-1/2" 20-101-722 37.08 3/4" 3/4" 1-1/2" 4" 20-101-748 158.75
designed to machine aluminum alloys and 3/8" 3/8" 1/2" 2" 20-101-725 31.58 3/4" 3/4" 3-1/4" 6" 20-101-750 219.29
additional non-ferrous, non-metallic materials. 3/8" 3/8" 1" 2-1/2" 20-101-724 35.04 1" 1" 1-1/2" 4" 20-101-764 241.63
3 Flute 35° Helix Solid Carbide ZrN Coated Single End Mills
For High Speed Machining Of Aluminum
Stub Length • Regular Length • Reduced Neck & Long Reach Sizes • Corner Radius • Center Cutting
Zirconium nitride (ZrN) coating inhibits
material build-up during machining
Benefits: feAtures:
• Increased productivity as this tool is a • Comes standard with a corner radius.
workhorse in the high speed machining • Special edge prep to reduce break-in periods
regular length
of aluminum and other light alloys. allowing higher productivity levels.
• Standard with zirconium nitride (ZrN) coating.
APPLiCAtiOns:
• Designed for high speed machining
of aluminum and light alloys. TOlErANCES:
reduced neck Cutting Diameter: +.000" / -.002"
Shank Diameter: -.000" / -.0004"
[SeRieS 110]
SHANk FluTE lENgTH NECk OvErAll COrNEr OrDEr PriCE
SiZE
DiAMETEr lENgTH OF rEACH DiAMETEr lENgTH rADiuS # EACH
1/4" 1/4" 3/8" — — 2" .015" 20-432-002 $30.25
1/4" 1/4" 3/4" — — 2-1/2" .015" 20-432-004 31.18
1/4" 1/4" 3/8" 2-1/8" .235" 4" .015" 20-432-003 54.27
3/8" 3/8" 5/8" — — 2" .015" 20-432-006 46.86
3/8" 3/8" 7/8" — — 2-1/2" .015" 20-432-008 48.29
3/8" 3/8" 5/8" 2-3/8" .355" 4" .015" 20-432-007 75.62
1/2" 1/2" 5/8" — — 2-1/2" .025" 20-432-010 53.71
1/2" 1/2" 1" — — 3" .025 20-432-012 63.27
1/2" 1/2" 5/8"" 2-3/4" .475" 4" .025" 20-432-011 86.12
5/8" 5/8" 1-1/4" — — 3-1/2" .030" 20-432-014 99.08
end Mill Selection tipS
• Pick the shortest possible end mill for the greatest rigidity.
• Choose two or three flutes for slotting or heavy stock removal.
• Pick multiple flutes for greater rigidity and finishing.
• For high production applications, use cobalt, PM/Plus and carbide for tougher and harder materials.
• For higher feeds, speeds and tool life apply coatings.
