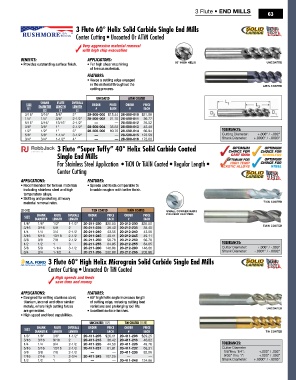

Page 65 - All Industrial Tool Supply | General Catalog

3 Flute • END MILLS
63

3 Flute 60° Helix Solid Carbide Single End Mills
Center Cutting • Uncoated Or AlTiN Coated

Very aggressive material removal
with high chip evacuation

Benefits: APPLiCAtiOns:
• Provides outstanding surface finish. • For high shear machining 60° HIgH HELIx UNcoatED
of ferrous materials.
feAtures:
• Keeps a cutting edge engaged
in the material throughout the altiN coatED
cutting process.

UnCoaTEd alTin CoaTEd
SHank FlUTE ovErall
SizE diaMETEr lEngTH lEngTH ordEr PriCE ordEr PriCE
d1 # EaCH # EaCH
d2 l2 l1
3/16" 3/16" 5/8" 2" 28-500-000 $15.44 28-500-010 $21.58
1/4" 1/4" 3/4" 2-1/2" 28-500-002 21.10 28-500-011 26.77
5/16" 5/16" 13/16" 2-1/2" — — 28-500-012 35.52
3/8" 3/8" 1" 2-1/2" 28-500-004 35.52 28-500-013 42.49
1/2" 1/2" 1" 3" 28-500-006 60.76 28-500-014 66.94 TolEranCES:
5/8" 5/8" 1-1/4" 3-1/2" — — 28-500-015 123.59 Cutting Diameter: +.000" / -.002"
3/4" 3/4" 1-1/2" 4" — — 28-500-016 172.00 Shank Diameter: +.0000" / -.0003"
3 Flute “Super Tuffy” 40° Helix Solid Carbide Coated
Single End Mills
For Stainless Steel Application • TiCN Or TiAlN Coated • Regular Length •
Center Cutting

APPLiCAtiOns: feAtures:
• Recommended for ferrous materials • Speeds and feeds comparable to
including stainless steel and high knuckle rougher with better finish.
temperature alloys.
• Slotting and pocketing at heavy
material removal rates. ticN coatED
[ST-343] TiCn CoaTEd Tialn CoaTEd SMaLL corNEr raDII
SHank FlUTE ovErall ordEr PriCE ordEr PriCE prEvENt cHIppINg
SizE
diaMETEr lEngTH lEngTH # EaCH # EaCH
1/8" 1/8" 1/2" 1-1/2" 20-211-230 $25.50 20-212-230 $25.50 tialN coatED
3/16 3/16 5/8 2 20-211-235 38.40 20-212-235 38.40
1/4 1/4 3/4 2-1/2 20-211-240 43.55 20-212-240 43.55
5/16 5/16 13/16 2-1/2 20-211-245 49.11 20-212-245 49.11
3/8 3/8 7/8 2-1/2 20-211-250 56.76 20-212-250 56.76
1/2 1/2 1 3 20-211-255 84.05 20-212-255 84.05 TolEranCES:
5/8 5/8 1-1/4 3-1/2 20-211-260 146.06 20-212-260 146.06 Cutter Diameter: +.000" / -.003"
3/4 3/4 1-1/2 4 20-211-265 202.88 20-212-265 202.88 Shank Diameter: -.0001" / -.0002"
3 Flute 60° High Helix Micrograin Solid Carbide Single End Mills
Center Cutting • Uncoated Or TiN Coated

High speeds and feeds
save time and money

APPLiCAtiOns: feAtures:
• Designed for milling stainless steel, • 60° high helix angle increases length
titanium, inconel and other similar of cutting edge, reducing cutting load
metals, where high cutting forces variations and prolonging tool life. UNcoatED
are generated. • Excellent surface finishes.
• High speed and feed capabilities.

UnCoaTEd [112] Tin CoaTEd [112T]

SHank FlUTE ovErall ordEr PriCE ordEr PriCE
SizE
diaMETEr lEngTH lEngTH # EaCH # EaCH tiN coatED
1/8" 1/8" 3/8" 1-1/2" 20-411-205 $26.11 20-411-206 $29.25
3/16 3/16 9/16 2 20-411-215 36.42 20-411-216 40.82
1/4 1/4 3/4 2-1/2 20-411-225 44.50 20-411-226 49.78 TolEranCES:
5/16 5/16 13/16 2-1/2 20-411-231 61.01 20-411-232 68.31 Cutter Diameter
3/8 3/8 7/8 2-1/2 — — 20-411-238 82.06 1/8"thru 1/4": +.000" / .002"
7/16 7/16 1 2-3/4 20-411-243 107.25 — — 9/32" thru 1": +.000" / .003"
1/2 1/2 1 3 — — 20-411-248 134.86 Shank Diameter: +.0000" / -.0005"
