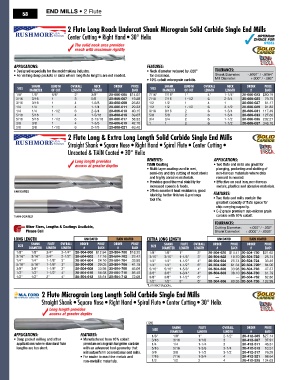

Page 60 - All Industrial Tool Supply | General Catalog

END MILLS • 2 Flute
58

2 Flute Long reach Undercut Shank Micrograin Solid Carbide Single End Mills
Center Cutting • Right Hand • 30° Helix

The solid neck area provides
reach with maximum rigidity

APPLICATIONS: FeATureS:
• Designed especially for the moldmaking industry. • Neck diameter reduced by .020" ToLEranCES:
• For milling deep pockets or slots where long flute lengths are not needed. for clearance. Shank Diameter: -.0001" / -.0004"
• 10% cobalt micrograin carbide. Mill Diameter: +.000" / -.002"
Shank LEngTh ovEraLL nECk orDEr PriCE Shank LEngTh ovEraLL nECk orDEr PriCE
SizE SizE
DiaMETEr oF CUT LEngTh LEngTh # EaCh DiaMETEr oF CUT LEngTh LEngTh # EaCh
1/8" 1/8" 5/8" 2" 3/8" 20-606-005 $14.07 7/16" 7/16" 1" 4" 1-1/4" 20-606-023 $60.19
3/16 3/16 1 3 5/8 20-606-007 19.88 7/16 7/16 1-1/2 6 2-3/4 20-606-025 79.75
3/16 3/16 1 4 1-5/8 20-606-009 26.82 1/2 1/2 1 4 1 20-606-027 61.17
1/4 1/4 1 4 1-1/4 20-606-011 29.33 1/2 1/2 1-1/2 6 2-1/2 20-606-029 91.83
1/4 1/4 1-1/2 6 2-3/4 20-606-013 40.15 9/16 9/16 2 6 1-3/4 20-606-031 117.49
5/16 5/16 1 4 1-5/16 20-606-015 39.07 5/8 5/8 2 6 1-3/4 20-606-033 127.60
5/16 5/16 1-1/2 6 2-13/16 20-606-017 58.32 3/4 3/4 2 6 1-1/2 20-606-035 202.27
3/8 3/8 1 4 1-3/8 20-606-019 42.76 1 1 2 6 1-1/2 20-606-037 348.70
3/8 3/8 1-1/2 6 2-7/8 20-606-021 63.40
2 Flute Long & Extra Long Length Solid Carbide Single End Mills
Straight Shank • Square Nose • Right Hand • Spiral Flute • Center Cutting •
Uncoated & TiAlN Coated • 30° Helix

Long length provides BeNeFITS: APPLICATIONS:
access at greater depths TiAlN Coating • Two flute end mills are great for
• Multi-layer coating used in wet, plunging, pocketing and slotting of
semi-dry and dry cutting of most steels non-ferrous materials where chip
and highly abrasive materials. removal is needed.
• Provides good thermal stability for • Effective on cast iron, non-ferrous
increased speeds & feeds. metals, plastics and abrasive materials.
Uncoated • Offers excellent heat resistance, good FeATureS:
lubricity, better finishes & prolongs
tool life. • Two flute end mills contain the
greatest capacity of flute space for
chip carrying capacity.
• C-2 grade premium sub-micron grain
tialn coated carbide with 10% cobalt.
ToLEranCES:
Other Sizes, Lengths & Coatings Available, Cutting Diameter: +.000" / -.002"
Please Call Shank Diameter: +.0000" / -.0005"
Long LEngTh UnCoaTED Tialn CoaTED ExTra Long LEngTh UnCoaTED Tialn CoaTED
Shank FLUTE ovEraLL orDEr PriCE orDEr PriCE Shank FLUTE ovEraLL orDEr PriCE orDEr PriCE
SizE SizE
DiaMETEr LEngTh LEngTh # EaCh # EaCh DiaMETEr LEngTh LEngTh # EaCh # EaCh
1/8" 1/8" 3/4" 2-1/4" 20-504-600 $12.94 20-504-700 $18.32 1/8" 1/8" 1" 3" 20-504-620 $14.41 20-504-720 $21.62
3/16" 3/16" 3/4" 2-1/2" 20-504-602 17.16 20-504-702 23.47 3/16" 3/16" 1-1/8" 3" 20-504-622 19.70 20-504-722 25.74
1/4" 1/4" 1-1/8" 3" 20-504-604 24.10 20-504-704 33.98 1/4" 1/4" 1-1/2" 4" 20-504-624 25.74 20-504-724 33.46
5/16" 5/16" 1-1/8" 3" 20-504-606 29.05 20-504-706 41.19 1/4" 1/4" 1-1/2" 6" 20-504-626 61.34 20-504-726* 84.00
3/8" 3/8" 1-1/8" 3" 20-504-608 33.98 20-504-708 45.08 5/16" 5/16" 1-5/8" 4" 20-504-628 33.98 20-504-728 47.37
1/2" 1/2" 1-1/2" 4" 20-504-610 54.58 20-504-710 85.48 3/8" 3/8" 1-3/4" 4" 20-504-630 38.10 20-504-730 61.79
1/2" 1/2" 2" 4" 20-504-612 55.61 20-504-712 72.09 3/8" 3/8" 1-1/2" 6" — — 20-504-732 62.86
1/2" 1/2" 3" 6" 20-504-636 80.33 20-504-736 102.99
*Limited Supply.
2 Flute Micrograin Long Length Solid Carbide Single End Mills
Straight Shank • Square Nose • Right Hand • Spiral Flute • Center Cutting • 30° Helix
Long length provides
access at greater depths

[123]
Shank FLUTE ovEraLL orDEr PriCE
SizE DiaMETEr LEngTh LEngTh # EaCh
APPLICATIONS: FeATureS: 1/8" 1/8" 1" 2-1/2" 20-412-305 $27.14
• Deep pocket milling and other • Manufactured from 10% cobalt 3/16 3/16 1/1/8 3 20-412-307 37.91
applications where standard flute premium micrograin tungsten carbide 1/4 1/4 1-1/4 3 20-412-311 46.31
lengths are too short. with an advanced tool geometry that 5/16 5/16 1-3/8 3-1/4 20-412-313 63.51
will outperform conventional end mills. 3/8 3/8 1-1/2 3-1/2 20-412-317 76.26
• For easier to machine metals and 7/16 7/16 1-3/4 4 20-412-321 98.64
non-metallic materials. 1/2 1/2 2 4 20-412-325 124.63
