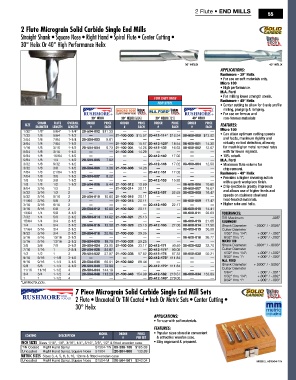

Page 57 - All Industrial Tool Supply | General Catalog

2 Flute • END MILLS
55

2 Flute Micrograin Solid Carbide Single End Mills
Straight Shank • Square Nose • Right Hand • Spiral Flute • Center Cutting •
30° Helix Or 40° High Performance Helix

30° HELIx 40° HELIx
APPLICATIONS:
Rushmore - 30° Helix
• For use on soft materials only.
Micro 100
• High performance.
M.A. Ford

• For milling lower strength steels.
For Cast Iron Rushmore - 40° Helix
For steel
• Center cutting to allow for 3 axis profile
milling, plunging & ramping.

• For use on ferrous and
30° hElix 30° hElix [GEM] 30° hElix [121] 40° hElix non-ferrous materials
Shank FluTE ovErall ordEr PriCE ordEr PriCE ordEr PriCE ordEr PriCE
SizE FeATureS:
diaMETEr lEngTh lEngTh # EaCh # EaCh # EaCh # EaCh
1/32" 1/8" 5/64" 1-1/4" 20-504-002 $11.33 — — — — — — Micro 100
1/32 1/8 5/64 1-1/2 — — 21-100-300 $15.57 20-412-114* $18.54 08-600-000 $13.82 • Can attain optimum cutting speeds
3/64 1/8 7/64 1-1/4 20-504-003 9.61 — — — — — — and feeds, maximum rigidity and
3/64 1/8 7/64 1-1/2 — — 21-100-302 15.57 20-412-123* 18.54 08-600-001 14.30 virtually no tool defection, allowing
1/16 1/8 3/16 1-1/2 20-504-004 8.73 21-100-304 14.26 20-412-132 16.63 08-600-002 12.07 for much higher metal removal rates
5/64 1/8 3/16 1-1/2 — — 21-100-306 14.26 — — — — with far fewer regrinds.
5/64 1/8 15/64 1-1/2 — — — — 20-412-140 17.02 — — • 10% cobalt.
5/64 1/8 1/4 1-1/2 20-504-005 7.92 — — — — — — M.A. Ford
3/32 1/8 9/32 1-1/2 — — — — 20-412-146 17.02 08-600-004 12.50 • Maximum flute volume for
3/32 1/8 3/8 1-1/2 20-504-006 7.36 21-100-308 14.26 — — — — chip removal.
7/64 1/8 21/64 1-1/2 — — — — 20-412-151 17.02 — — Rushmore - 40° Helix
7/64 1/8 3/8 1-1/2 20-504-007 8.22 — — — — — — • Provides a higher shearing action
1/8 1/8 3/8 1-1/2 — — — — 20-412-153 15.92 — — with superb workpiece finish.
1/8 1/8 1/2 1-1/2 20-504-008 6.44 21-100-312 12.69 — — 08-600-006 10.80 • Chip ejection is greatly improved
9/64 3/16 1/2 2 — — 21-100-314 20.11 — — 08-600-007 16.67 and allows use of higher feeds and
5/32 3/16 1/2 2 — — — — 20-412-157 22.65 08-600-008 16.47
5/32 3/16 9/16 2 20-504-010 10.80 21-100-316 20.11 — — — — speeds on stainless steel and
11/64 3/16 5/8 2 — — 21-100-318 20.11 — — 08-600-009 17.47 heat-treated materials.
3/16 3/16 9/16 2 — — — — 20-412-160 22.17 — — • Higher rake and helix.
3/16 3/16 5/8 2 20-504-012 10.60 21-100-320 20.11 — — 08-600-010 14.41
13/64 1/4 5/8 2-1/2 — — — — — — 08-600-011 22.03 TolEranCES:
7/32 1/4 5/8 2-1/2 20-504-014 14.62 21-100-324 25.13 — — — — TIR Maximum: .005"
15/64 1/4 3/4 2-1/2 — — — — — — 08-600-013 21.05 ruShMorE
1/4 1/4 3/4 2-1/2 20-504-016 13.38 21-100-328 25.13 20-412-165 27.05 08-600-014 17.50 Shank Diameter: -.0000" / -.0005"
17/64 5/16 3/4 2-1/2 — — — — — — 08-600-015 30.89 Cutter Diameter
9/32 5/16 3/4 2-1/2 20-504-018 20.06 21-100-330 29.25 — — — — 1/32" thru 1/4": +.000" / -.002"
5/16 5/16 13/16 2-1/2 — — — — — — 08-600-018 26.77 9/32" thru 1": +.000" / -.003"
5/16 5/16 13/16 2-1/2 20-504-020 18.79 21-100-332 29.25 — — — — MiCro 100
3/8 3/8 7/8 2-1/2 20-504-024 23.00 21-100-334 33.17 20-412-171 40.40 08-600-022 32.70 Shank Diameter: -.0001" / -.0003"
7/16 7/16 1 2-3/4 20-504-028 34.87 — — 20-412-174* 50.05 — — Cutter Diameter
1/2 1/2 1 3 20-504-032 37.07 21-100-338 57.62 20-412-176 67.32 08-600-030 50.21 1/32" thru 1/4": +.000" / -.002"
9/16 9/16 1-1/8 3-1/2 — — — — 20-412-178* 111.84 — — 9/32" thru 1": +.000" / -.003"
9/16 9/16 1-1/4 3-1/2 20-504-036 65.91 21-100-340 88.44 — — — — M.a. Ford
5/8 5/8 1-1/4 3-1/2 20-504-040 72.09 — — 20-412-179* 111.84 — — Shank Diameter: +.0000" / -.0005"
11/16 11/16 1-1/2 4 20-504-044 144.19 — — — — — — Cutter Diameter +.000" / -.001"
1/64":
3/4 3/4 1-1/2 4 20-504-048 113.29 21-100-346 154.99 20-412-182 210.51 08-600-034 133.89 1/32" thru 1/4": +.000" / -.002"
1 1 1-1/2 4 — — — — 20-412-149* 279.05 — — 9/32" thru 1": +.000" / -.003"
*Limited Supply.
7 Piece Micrograin Solid Carbide Single End Mill Sets
2 Flute • Uncoated Or TiN Coated • Inch Or Metric Sets • Center Cutting •
30° Helix

APPLICATIONS:
• For use with soft materials.
FeATureS:
ModEl ordEr PriCE • Popular sizes stored in convenient
CoaTing dESCriPTion
# # PEr SET & attractive wooden case.
inCh SizES Sizes 1/16", 1/8", 3/16", 1/4", 5/16", 3/8", 1/2" & fitted wooden case • Stay organized & prepared.
TiN Coated Right Hand Spiral S1504-TiN 09-338-100 $195.69
Uncoated Right Hand Spiral, Square Nose S1504 20-504-900 133.89
METriC SizES Sizes 3, 4, 5, 6, 8, 10, 12mm & fitted wooden case
Uncoated Right Hand Spiral, Square Nose S1504-M 20-504-901 $242.04 MoDEL #S1504-TiN
