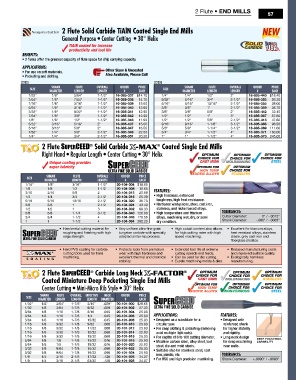

Page 59 - All Industrial Tool Supply | General Catalog

2 Flute • END MILLS
57

2 Flute solid carbide Tialn coated single end Mills
General Purpose • Center Cutting • 30° Helix
TiAlN coated for increase
productivity and tool life
BeNeFIts:
• 2 flutes offer the greatest capacity of flute space for chip carrying capacity.
aPPLICatIONs:
• For use on soft materials. Other Sizes & Uncoated
• Pocketing and slotting. Also Available, Please Call
[C230] [C230]
shank FluTe overall orDer Price shank FluTe overall orDer Price
size size
DiaMeTer lengTh lengTh # each DiaMeTer lengTh lengTh # each
1/32" 1/8" 5/64" 1-1/2" 16-085-337 $14.70 1/4" 1/4" 1/2" 2" 16-085-440 $18.40
3/64" 1/8" 7/64" 1-1/2" 16-085-338 14.70 9/32" 5/16" 3/4" 2-1/2" 16-085-353 26.30
1/16" 1/8" 3/16" 1-1/2" 16-085-339 13.60 5/16" 5/16" 13/16" 2-1/2" 16-085-355 28.00
5/64" 1/8" 3/16" 1-1/2" 16-085-340 13.60 3/8" 3/8" 1" 2-1/2" 16-085-359 35.70
3/32" 1/8" 9/32" 1-1/2" 16-085-341 12.90 3/8" 3/8" 5/8" 2" 16-085-442 32.10
7/64" 1/8" 3/8" 1-1/2" 16-085-342 12.90 1/2" 1/2" 1" 3" 16-085-367 57.60
1/8" 1/8" 1/2" 1-1/2" 16-085-343 11.90 1/2" 1/2" 5/8" 2-1/2" 16-085-418 47.60
5/32" 3/16" 5/16" 2" 16-085-437 15.00 9/16" 9/16" 1-1/8" 3-1/2" 16-085-368 98.50
3/16" 3/16" 5/8" 2" 16-085-347 16.50 5/8" 5/8" 1-1/4" 3-1/2" 16-085-369 111.00
7/32" 1/4" 5/8" 2-1/2" 16-085-349 22.00 3/4" 3/4" 1-1/2" 4" 16-085-371 163.00
1/4" 1/4" 3/4" 2-1/2" 16-085-351 20.20 1" 1" 1-1/2" 4" 16-085-373 245.00
2 Flute SuperCEED solid carbide -MAX coated single end Mills
®
®
Right Hand • Regular Length • Center Cutting • 30° Helix
Unique coating provides
super lubricity

shank FluTe overall orDer Price
size
DiaMeTer lengTh lengTh # each
1/16" 1/8" 3/16" 1-1/2" 20-104-004 $18.65
1/8 1/8 1/2 1-1/2 20-104-008 18.65 Features:
3/16 3/16 5/8 2 20-104-012 20.88
1/4 1/4 3/4 2-1/2 20-104-016 25.38 • High hardness, enhanced
5/16 5/16 13/16 2-1/2 20-104-020 36.73 toughness, high heat resistance.
3/8 3/8 1 2-1/2 20-104-024 43.49 • Hardened workpieces, steel, cast iron,
1/2 1/2 1 3 20-104-032 69.33 stainless, and nickel based alloys.
5/8 5/8 1-1/4 3-1/2 20-104-040 126.30 • High temperature and titanium Tolerances:
3/4 3/4 1-1/2 4 20-104-048 178.56 alloys, machining wet, dry, or semi Cutter Diameter: 0" / -.0012"
1 1 1-1/2 4 20-104-064 300.20 dry condition. Shank Diameter: -.000" / -.0003"

2 Flute SuperCEED carbide long neck -FACTOR
®
®
coated Miniature Deep Pocketing single end Mills
Center Cutting • Mini-Micro Rib Style • 30° Helix

shank FluTe overall eFFecTive neck orDer Price
size
DiaMeTer lengTh lengTh lengTh DiaMeTer # each
1/32" 1/8" 3/64" 1-7/8" 3/16" .029" 20-101-900 $28.66
1/32 1/8 3/64 1-7/8 9/32 .029 20-101-902 27.33
3/64 1/8 1/16 1-7/8 3/16 .045 20-101-904 25.93
3/64 1/8 1/16 1-7/8 1/4 .045 20-101-906 25.93 aPPLICatIONs: Features:
3/64 1/8 1/16 1-7/8 15/32 .045 20-101-908 25.93 • Designed as a substitute for a • Designed with
1/16 1/8 3/32 1-7/8 9/32 .060 20-101-910 25.93 circular saw. reinforced shank
1/16 1/8 3/32 1-7/8 11/32 .060 20-101-912 25.93 • For deep slotting & pocketing (removing for higher stability
1/16 1/8 3/32 1-7/8 15/32 .060 20-101-914 25.93 axial multiple light cuts). and rigidity.
1/16 1/8 3/32 1-7/8 19/32 .060 20-101-916 25.93 • For depths of 6 to 10X cutting diameter. • Long neck design
5/64 1/8 1/8 1-7/8 15/32 .076 20-101-918 25.93 • Machine carbon steel, alloy steel, tool for deep machining DEEp pockEtINg
capabILIty
5/64 1/8 1/8 1-7/8 19/32 .076 20-101-920 25.93 steel, die and mold steels. near walls.
3/32 1/8 9/64 1-7/8 15/32 .090 20-101-922 25.93 • Suitable also for stainless steel, cast
3/32 1/8 9/64 1-7/8 19/32 .090 20-101-924 25.93 iron, plastic, etc. Tolerances:
1/8 1/4 3/16 2-1/8 17/32 .120 20-101-926 34.07
1/8 1/4 3/16 2-1/8 23/32 .120 20-101-928 34.07 • For HSC and high precision machining. Shank Diameter: +.0000" / -.0003"
