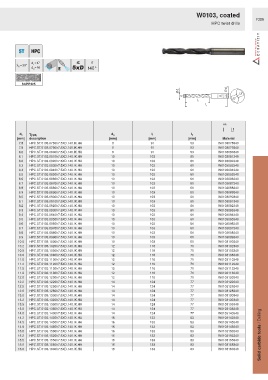

Page 1353 - Ceratizit Catalog

W0103, coated
F356
HPC twist drills

σ
140°

SCPP425
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
7.8 HPC.ST.0103.0780h7.5XD.140.IK.HA 8 91 53 W0103078340
7.9 HPC.ST.0103.0790h7.5XD.140.IK.HA 8 91 53 W0103079340
8.0 HPC.ST.0103.0800h7.5XD.140.IK.HA 8 91 53 W0103080340
8.1 HPC.ST.0103.0810h7.5XD.140.IK.HA 10 103 61 W0103081340
8.2 HPC.ST.0103.0820h7.5XD.140.IK.HA 10 103 61 W0103082340
8.3 HPC.ST.0103.0830h7.5XD.140.IK.HA 10 103 61 W0103083340
8.4 HPC.ST.0103.0840h7.5XD.140.IK.HA 10 103 61 W0103084340
8.5 HPC.ST.0103.0850h7.5XD.140.IK.HA 10 103 61 W0103085340
8.6 HPC.ST.0103.0860h7.5XD.140.IK.HA 10 103 61 W0103086340
8.7 HPC.ST.0103.0870h7.5XD.140.IK.HA 10 103 61 W0103087340
8.8 HPC.ST.0103.0880h7.5XD.140.IK.HA 10 103 61 W0103088340
8.9 HPC.ST.0103.0890h7.5XD.140.IK.HA 10 103 61 W0103089340
9.0 HPC.ST.0103.0900h7.5XD.140.IK.HA 10 103 61 W0103090340
9.1 HPC.ST.0103.0910h7.5XD.140.IK.HA 10 103 61 W0103091340
9.2 HPC.ST.0103.0920h7.5XD.140.IK.HA 10 103 61 W0103092340
9.3 HPC.ST.0103.0930h7.5XD.140.IK.HA 10 103 61 W0103093340
9.4 HPC.ST.0103.0940h7.5XD.140.IK.HA 10 103 61 W0103094340
9.5 HPC.ST.0103.0950h7.5XD.140.IK.HA 10 103 61 W0103095340
9.6 HPC.ST.0103.0960h7.5XD.140.IK.HA 10 103 61 W0103096340
9.7 HPC.ST.0103.0970h7.5XD.140.IK.HA 10 103 61 W0103097340
9.8 HPC.ST.0103.0980h7.5XD.140.IK.HA 10 103 61 W0103098340
9.9 HPC.ST.0103.0990h7.5XD.140.IK.HA 10 103 61 W0103099340
10.0 HPC.ST.0103.1000h7.5XD.140.IK.HA 10 103 61 W0103100340
10.2 HPC.ST.0103.1020h7.5XD.140.IK.HA 12 118 71 W0103102340
10.5 HPC.ST.0103.1050h7.5XD.140.IK.HA 12 118 71 W0103105340
10.8 HPC.ST.0103.1080h7.5XD.140.IK.HA 12 118 71 W0103108340
11.0 HPC.ST.0103.1100h7.5XD.140.IK.HA 12 118 71 W0103110340
11.2 HPC.ST.0103.1120h7.5XD.140.IK.HA 12 118 71 W0103112340
11.5 HPC.ST.0103.1150h7.5XD.140.IK.HA 12 118 71 W0103115340
11.8 HPC.ST.0103.1180h7.5XD.140.IK.HA 12 118 71 W0103118340
12.0 HPC.ST.0103.1200h7.5XD.140.IK.HA 12 118 71 W0103120340
12.2 HPC.ST.0103.1220h7.5XD.140.IK.HA 14 124 77 W0103122340
12.5 HPC.ST.0103.1250h7.5XD.140.IK.HA 14 124 77 W0103125340
12.8 HPC.ST.0103.1280h7.5XD.140.IK.HA 14 124 77 W0103128340
13.0 HPC.ST.0103.1300h7.5XD.140.IK.HA 14 124 77 W0103130340
13.2 HPC.ST.0103.1320h7.5XD.140.IK.HA 14 124 77 W0103132340
13.5 HPC.ST.0103.1350h7.5XD.140.IK.HA 14 124 77 W0103135340
13.8 HPC.ST.0103.1380h7.5XD.140.IK.HA 14 124 77 W0103138340
14.0 HPC.ST.0103.1400h7.5XD.140.IK.HA 14 124 77 W0103140340
14.2 HPC.ST.0103.1420h7.5XD.140.IK.HA 16 133 83 W0103142340
14.5 HPC.ST.0103.1450h7.5XD.140.IK.HA 16 133 83 W0103145340
14.8 HPC.ST.0103.1480h7.5XD.140.IK.HA 16 133 83 W0103148340
15.0 HPC.ST.0103.1500h7.5XD.140.IK.HA 16 133 83 W0103150340
15.2 HPC.ST.0103.1520h7.5XD.140.IK.HA 16 133 83 W0103152340 Solid carbide tools / Drilling
15.5 HPC.ST.0103.1550h7.5XD.140.IK.HA 16 133 83 W0103155340
15.8 HPC.ST.0103.1580h7.5XD.140.IK.HA 16 133 83 W0103158340
16.0 HPC.ST.0103.1600h7.5XD.140.IK.HA 16 133 83 W0103160340
