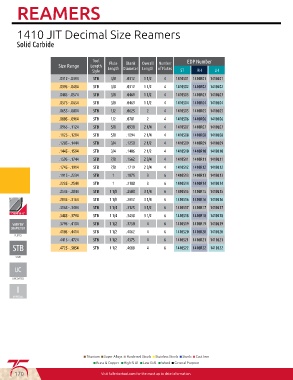

Page 172 - Fullerton Tool Catalog

REAMERS

1410 JIT Decimal Size Reamers

Solid Carbide

Tool Flute Shank Overall Number EDP Number
Size Range Length Length Diameter Length of Flutes
Style ST RH LH
.0312 - .0394 STB 3/8 .0312 1 1/2 4 1410S01 1410R01 1410L01
.0395 - .0484 STB 3/8 .0312 1 1/2 4 1410S02 1410R02 1410L02
.0485 - .0574 STB 3/8 .0469 1 1/2 4 1410S03 1410R03 1410L03
.0575 - .0654 STB 3/8 .0469 1 1/2 4 1410S04 1410R04 1410L04
.0655 - .0804 STB 1/2 .0625 2 4 1410S05 1410R05 1410L05
.0805 - .0964 STB 1/2 .0781 2 4 1410S06 1410R06 1410L06
.0965 - .1124 STB 5/8 .0938 2 1/4 4 1410S07 1410R07 1410L07
.1125 - .1284 STB 5/8 .1094 2 1/4 4 1410S08 1410R08 1410L08

.1285 - .1444 STB 3/4 .1250 2 1/2 4 1410S09 1410R09 1410L09
.1445 - .1594 STB 3/4 .1406 2 1/2 4 1410S10 1410R10 1410L10
.1595 - .1744 STB 7/8 .1562 2 3/4 4 1410S11 1410R11 1410L11
.1745 - .1914 STB 7/8 .1719 2 3/4 4 1410S12 1410R12 1410L12
.1915 - .2234 STB 1 .1875 3 6 1410S13 1410R13 1410L13
.2235 - .2544 STB 1 .2188 3 6 1410S14 1410R14 1410L14
.2545 - .2844 STB 1 1/8 .2500 3 1/4 6 1410S15 1410R15 1410L15
.2845 - .3164 STB 1 1/8 .2812 3 1/4 6 1410S16 1410R16 1410L16
.3165 - .3484 STB 1 1/4 .3125 3 1/2 6 1410S17 1410R17 1410L17

.3485 - .3794 STB 1 1/4 .3438 3 1/2 6 1410S18 1410R18 1410L18
.3795 - .4104 STB 1 1/2 .3750 4 6 1410S19 1410R19 1410L19
.4105 - .4414 STB 1 1/2 .4062 4 6 1410S20 1410R20 1410L20
.4415 - .4724 STB 1 1/2 .4375 4 6 1410S21 1410R21 1410L21
.4725 - .5054 STB 1 1/2 .4688 4 6 1410S22 1410R22 1410L22

UNCOATED
I

IMPERIAL

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Wood ■ General Purpose
