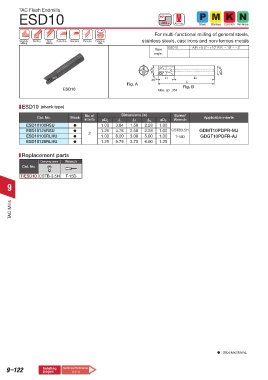

Page 708 - Tungaloy Catalog

TAC Flash Endmills
ESD10 90° Air Hole Steel Stainless Cast Iron Non-ferrous

.354 in

For multi-functional milling of general steels,
Shoulder Slotting Side Pocketing Ramping Plunging Enlarging stainless steels, cast irons and non-ferrous metals
Milling Milling Hole
ESD10 A.R. + 8.5˚ ~ + 10˚ R.R. — 10˚ ~ — 5˚
Rake
angle:

øDc øDs h6
Lf R s
88˚
Fig. A L
ESD10 Max. ap: .354 Fig. B

ESD10 (shank type)
Screw/
No. of
Cat. No. Stock inserts øDc L Dimensions (in) R s øDs Wrench Applicable inserts
Lf
ESD10100RSU  1.00 3.84 1.56 2.28 1.00
ESD10125RSU  2 1.25 4.78 2.50 2.28 1.00 CSTB3.5H GDMT10PDPR-MJ
ESD10100RLHU  1.00 8.00 3.00 5.00 1.00 T-15D GDGT10PDFR-AJ
ESD10125RLHU  1.25 9.75 3.75 6.00 1.25

Replacement parts
Clamping screw Wrench
Cat. No.
T/ESD10 CSTB-3.5H T-15D
9

TAC Mills

 : Stocked items.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–122 Relating Technical Reference
