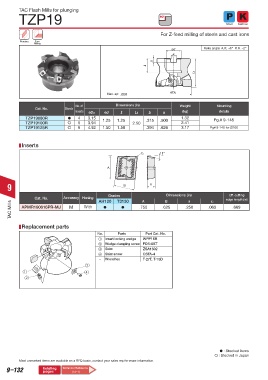

TAC Flash Mills for plunging
TZP19 90° Steel Cast Iron

For Z-feed milling of steels and cast irons
Plunging Face
Milling
ød Rake angle: A.R. +6° R.R. –2°
a
b
R
Lf

øDc
Max. ap: .020

No. of Dimensions (in) Weight Mounting
Cat. No. Stock
inserts øDc ød R Lf b a (kg) details
TZP19080R  4 3.15 1.25 1.25 .315 .500 1.32 Pg.# 9-148
TZP19100R 5 3.94 2.50 2.41
TZP19125R 6 4.92 1.50 1.50 .394 .626 3.17 Pg# 9-148 for Ø100

Inserts

r ε 11°

A

9 B s

Grades Dimensions (in) Eff. cutting
Cat. No. Accuracy Honing AH120 T3130 A B s rε edge length (in)
TAC Mills APMR190616PR-MJ M With   .750 .625 .250 .063 .669

Replacement parts
No. Parts Part Cat. No.
a Insert locking wedge WPP16R
b Wedge clamping screw FDS-8ST
c Shim ZSA1502
d Shim screw CSTA-4
- Wrenches T-27T, T-15D
e
q r
w

 : Stocked items
: Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
