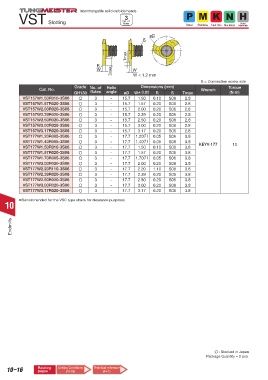

Page 801 - Tungaloy Catalog

Interchangable solid carbide heads
3
VST Slotting No. of Steel Stainless Cast Iron Non-ferrous Materials
flutes
Hard
øD
S

Tmax

R
Tmax W < 1.2 mm
W W

S = Connection screw size
Grade No. of Helix Dimensions (mm) Torque
Cat. No. Wrench

GH130 flutes angle øD W ± 0.02 R S Tmax (N·m)
VST157W1.50R010-3S06 3 - 15.7 1.50 0.10 S06 2.8
VST157W1.57R020-3S06 3 - 15.7 1.57 0.20 S06 2.8
VST157W2.00R020-3S06 3 - 15.7 2.00 0.20 S06 2.8
VST157W2.39R020-3S06 3 - 15.7 2.39 0.20 S06 2.8
VST157W2.50R020-3S06 3 - 15.7 2.50 øD 0.20 S06 2.8
VST157W3.00R020-3S06 3 - 15.7 3.00 0.20 S06 2.8
S
VST157W3.17R020-3S06 3 - 15.7 3.17 0.20 S06 2.8
VST177W1.20R005-3S06 3 - 17.7 1.20 (1) 0.05 S06 3.8
VST177W1.40R005-3S06 3 - 17.7 1.40 (1) 0.05 S06 3.8 KEYV-177
Tmax
VST177W1.50R010-3S06 3 - 17.7 1.50 0.10 S06 3.8 10
VST177W1.57R020-3S06 3 R - 17.7 1.57 0.20 S06 3.8
W
VST177W1.70R005-3S06 3 - Tmax 17.7 W 1.70 (1) 0.05 S06 3.8
VST177W2.00R020-3S06 3 - 17.7 W < 1.0 mm S06 3.8
2.00
0.20
VST177W2.20R110-3S06 3 - 17.7 2.20 1.10 S06 3.8
VST177W2.39R020-3S06 3 - 17.7 2.39 0.20 S06 3.8
VST177W2.50R020-3S06 3 - 17.7 2.50 0.20 S06 3.8
VST177W3.00R020-3S06 3 - 17.7 3.00 0.20 S06 3.8
VST177W3.17R020-3S06 3 - 17.7 3.17 0.20 S06 3.8

● Recommended for the VSC type shank for clearance purposes
10
øD
Endmills S

R
Tmax
W

: Stocked in Japan
Package Quantity = 2 pcs.

10–16 Relating Cutting Conditions Technical reference
pages
(10-23)
(14-1)
