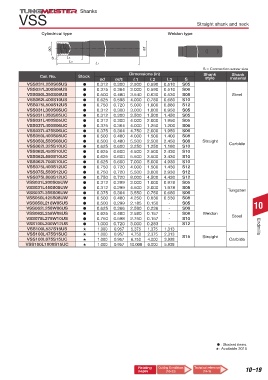

Page 804 - Tungaloy Catalog

Shanks
VSS Straight shank and neck

Cylindrical type Weldon type

ød1 ød

S L3
L2
L1
S = Connection screw size
Dimensions (in)
Cat. No. Stock Shank Shank
ød ød1 L1 L2 L3 S style material
VSS031L250S05US ● 0.312 0.300 2.500 0.590 0.510 S05
VSS037L300S06US ● 0.375 0.364 3.000 0.590 0.510 S06
VSS050L350S08US ● 0.500 0.480 3.540 0.630 0.530 S08 Steel
VSS062L400S10US ● 0.625 0.598 4.000 0.780 0.680 S10
VSS075L500S12US ● 0.750 0.720 5.000 1.000 0.880 S12
VSS031L300S05UC ● 0.312 0.300 3.000 1.000 0.950 S05
VSS031L350S05UC ● 0.312 0.300 3.500 1.500 1.450 S05
VSS031L400S05UC ● 0.312 0.300 4.000 2.000 1.950 S05
VSS037L400S06UC ● 0.375 0.364 4.000 1.250 1.200 S06
VSS037L475S06UC ● 0.375 0.364 4.750 2.000 1.950 S06
VSS050L400S08UC ● 0.500 0.480 4.000 1.500 1.400 S08
VSS050L550S08UC ● 0.500 0.480 5.500 2.500 2.450 S08 Straight
VSS062L325S10UC ● 0.625 0.600 3.250 1.250 1.180 S10 Carbide
VSS062L450S10UC ● 0.625 0.600 4.500 2.500 2.430 S10
VSS062L550S10UC ● 0.625 0.600 5.500 3.500 3.430 S10
VSS062L700S10UC ● 0.625 0.600 7.000 5.000 4.930 S10
VSS075L400S12UC ● 0.750 0.720 4.000 1.500 1.430 S12
VSS075L550S12UC ● 0.750 0.720 5.500 3.000 2.930 S12
VSS075L800S12UC ● 0.750 0.720 8.000 4.500 4.430 S12
VSS031L300S05UW ● 0.312 0.299 3.000 1.000 0.978 S05
VSS031L450S05UW ● 0.312 0.299 4.500 2.000 1.978 S05
VSS037L355S06UW ● 0.375 0.364 3.550 0.750 0.680 S06 Tungsten
VSS050L425S08UW ● 0.500 0.480 4.250 0.630 0.530 S08
VSS050L218W05US ● 0.500 0.299 2.185 0.150 - S05 10
VSS062L258W06US ● 0.625 0.366 2.580 0.236 - S06
VSS062L258W08US ● 0.625 0.480 2.580 0.157 - S08 Weldon
VSS075L275W10US ● 0.750 0.598 2.750 0.157 - S10 Steel
ød1
ød
VSS100L300W12US ● 1.000 0.720 3.000 0.283 - S12
VSS100L537S15US ★ 1.000 0.957 5.375 1.375 1.313 Endmills
VSS100L475S15UC L3 L2 ★ 1.000 0.957 4.750 2.375 2.313
S
VSS100L675S15UC ★ L1 0.957 6.750 4.000 3.938 S15 Straight Carbide
1.000
VSS100L1000S15UC ★ 1.000 0.957 10.000 6.000 5.938

d : Stocked items.
★: Available 2015

Relating Cutting Conditions Technical reference 10–19
pages (10-23) (14-1)
