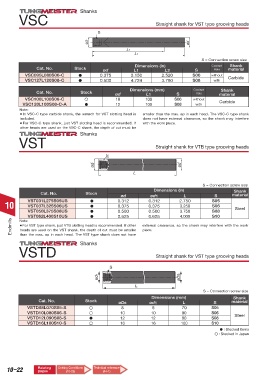

Page 807 - Tungaloy Catalog

Shanks
VSC Straight shank for VST type grooving heads

S
S

ød1 ød1 ød ød
L2
L2
L1 L1
S = Connection screw size
Dimensions (in) Coolant Shank
Cat. No. Stock material
ød L1 L2 S Hole
VSC095L080S06-C ● 0.375 3.150 2.520 S06 without
VSC127L120S08-C ● 0.500 4.724 3.780 S08 with Carbide
Dimensions (mm) Coolant Shank
Cat. No. Stock ød L1 S Hole material
VSC100L100S06-C 10 100 S06 without
VSC120L100S08-C-A ● 12 100 S08 with Carbide
Note:
● In VSC-C type carbide shank, the wrench for VST slotting head is smaller than the max. ap in each head. The VSC-C type shank
included. does not have external clearance, so the shank may interfere
● For VSC-C type shank, just VST slotting head is recommended. If with the work piece.
other heads are used on the VSC-C shank, the depth of cut must be
Shanks S
VST S Straight shank for VTB type grooving heads

ød1 ød1 S ød ød
L L2 L1
ød1 ød
L

S = Connection screw size
Dimensions (in) Shank

Cat. No. Stock
ød ød1 L S material
10 VST031L275S05US ● 0.312 0.312 2.750 S05
S06
VST037L325S06US
●
3.250
0.375
0.375
VST050L375S08US ● 0.500 0.500 3.750 S08 Steel
VST062L400S10US ● 0.625 0.625 4.000 S10
Endmills ● For VST type shank, just VTB slotting head is recommended. If other external clearance, so the shank may interfere with the work
Note:
heads are used on the VST shank, the depth of cut must be smaller
piece.
than the max. ap in each head. The VST type shank does not have
Shanks
VSTD Straight shank for VST type grooving heads
S

ød1 øDs
L
S = Connection screw size
Dimensions (mm) Shank
Cat. No. Stock øDs ød1 L S material
VSTD08L070S05-S 8 8 70 S05
VSTD10L080S06-S 10 10 80 S06
VSTD12L090S08-S ● 12 12 90 S08 Steel
VSTD16L100S10-S 16 16 100 S10
d : Stocked items
: Stocked in Japan

10–22 Relating Cutting Conditions Technical reference
pages
(10-23)
(14-1)
