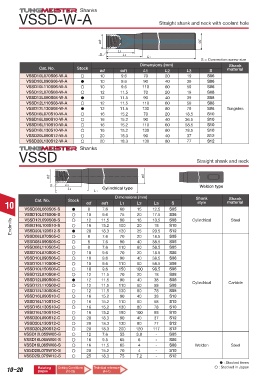

Page 805 - Tungaloy Catalog

Shanks ød1 S L3 L2 L1 ød
VSSD-W-A Straight shank and neck with coolant hole

ød1 ød

L3
S L2
L1
S = Connection screw size

Dimensions (mm) Shank
Cat. No. Stock
ød ød1 L1 L2 L3 S material
VSSD10L070S06-W-A 10 9.6 70 20 19 S06
VSSD10L090S06-W-A ● 10 9.6 90 40 39 S06
VSSD10L110S06-W-A 10 9.6 110 60 59 S06
VSSD12L070S08-W-A 12 11.5 70 20 19 S08
VSSD12L090S08-W-A ● 12 11.5 90 40 39 S08
VSSD12L110S08-W-A 12 11.5 110 60 59 S08
VSSD12L130S08-W-A ● 12 11.5 130 80 79 S08 Tungsten
VSSD16L070S10-W-A 16 15.2 70 20 18.5 S10
VSSD16L090S10-W-A 16 15.2 90 40 36.5 S10
VSSD16L110S10-W-A 16 15.2 110 60 58.5 S10
VSSD16L130S10-W-A 16 15.2 130 80 78.5 S10
VSSD20L090S12-W-A 20 18.3 90 40 37 S12
VSSD20L130S12-W-A 20 18.3 130 80 77 S12
Shanks
VSSD Straight shank and neck

ød1 ød

S L3 Weldon type
L2 Cylindrical type
L1
Dimensions (mm) Shank
Shank
Cat. No. Stock style material
10 VSSD08L060S05-S ● ød ød1 L1 L2 12.5 S05
S
L3
7.6
15
60
8
VSSD10L075S06-S 10 9.6 75 20 17.5 S06
VSSD12L090S08-S
S08
Endmills VSSD16L100S10-S ● 12 11.5 100 16 13.5 S10 Cylindrical Steel
90
15.2
16
18
20
S12
VSSD20L120S12-S
20
25
120
20.5
18.3
VSSD08L070S05-C 8 7.6 70 20 18.5 S05
VSSD08L090S05-C 8 7.6 90 40 38.5 S05
VSSD08L110S05-C 8 7.6 110 60 58.5 S05
VSSD10L070S06-C 10 9.6 70 20 18.5 S06
VSSD10L090S06-C 10 9.6 90 40 38.5 S06
VSSD10L110S06-C 10 9.6 110 60 58.5 S06
VSSD10L150S06-C 10 9.6 150 100 98.5 S06
VSSD12L070S08-C 12 11.5 70 20 18 S08
VSSD12L090S08-C ● 12 11.5 90 40 38 S08
VSSD12L110S08-C 12 11.5 110 60 58 S08 Cylindrical Carbide
VSSD12L130S08-C 12 11.5 130 80 78 S08
VSSD16L090S10-C 16 15.2 90 40 38 S10
VSSD16L110S10-C 16 15.2 110 60 58 S10
VSSD16L130S10-C 16 15.2 130 80 78 S10
VSSD16L150S10-C 16 15.2 150 100 98 S10
VSSD20L090S12-C 20 18.3 90 40 37 S12
VSSD20L130S12-C 20 18.3 130 80 77 S12
VSSD20L200S12-C 20 18.3 200 120 117 S12
VSSD12L055W05-S 12 7.6 55 3.8 - S05
VSSD16L065W06-S 16 9.5 65 6 - S06
VSSD16L065W08-S 16 11.5 65 4 - S08 Weldon Steel
ød1
VSSD20L070W10-S 20 15.2 70 4 ød - S10
VSSD25L075W12-S 25 18.3 75 7.2 - S12
L3
S L2 L1 d : Stocked items
10–20 Relating Cutting Conditions Technical reference : Stocked in Japan
pages
(10-23)
(14-1)
