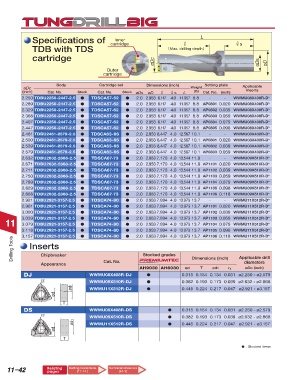

Page 858 - Tungaloy Catalog

Specifications of cartridge r L rs
Inner
TDB with TDS （Max. drilling depth）
cartridge
øDc øDs øD

Outer
cartridge

Body Cartridge set Dimensions (inch) Setting plate
øDc Weight Applicable
(inch) Cat. No. Stock Cat. No. Stock øDs øD r rs L (lb) Cat. No. (inch) inserts
2.250 TDBU2250-2447-2.5 d TDSCA57-62 d 2.0 2.953 6.117 4.0 11.957 8.8 - - WWMU08X408R-D*
2.289 TDBU2250-2447-2.5 d TDSCA57-62 d 2.0 2.953 6.117 4.0 11.957 8.8 AP0801 0.020 WWMU08X408R-D*
2.329 TDBU2250-2447-2.5 d TDSCA57-62 d 2.0 2.953 6.117 4.0 11.957 8.8 AP0802 0.039 WWMU08X408R-D*
2.368 TDBU2250-2447-2.5 d TDSCA57-62 d 2.0 2.953 6.117 4.0 11.957 8.8 AP0803 0.059 WWMU08X408R-D*
2.407 TDBU2250-2447-2.5 d TDSCA57-62 d 2.0 2.953 6.117 4.0 11.957 8.8 AP0804 0.079 WWMU08X408R-D*
2.447 TDBU2250-2447-2.5 d TDSCA57-62 d 2.0 2.953 6.117 4.0 11.957 8.8 AP0805 0.098 WWMU08X408R-D*
2.461 TDBU2461-2579-2.5 d TDSCA63-66 d 2.0 2.953 6.447 4.0 12.567 10.1 - - WWMU08X408R-D*
2.500 TDBU2461-2579-2.5 d TDSCA63-66 d 2.0 2.953 6.447 4.0 12.567 10.1 AP0801 0.020 WWMU08X408R-D*
2.539 TDBU2461-2579-2.5 d TDSCA63-66 d 2.0 2.953 6.447 4.0 12.567 10.1 AP0802 0.039 WWMU08X408R-D*
2.579 TDBU2461-2579-2.5 d TDSCA63-66 d 2.0 2.953 6.447 4.0 12.567 10.1 AP0803 0.059 WWMU08X408R-D*
2.632 TDBU2632-2868-2.5 d TDSCA67-73 d 2.0 2.953 7.170 4.0 13.544 11.9 - - WWMU09X510R-D*
2.671 TDBU2632-2868-2.5 d TDSCA67-73 d 2.0 2.953 7.170 4.0 13.544 11.9 AP1101 0.020 WWMU09X510R-D*
2.711 TDBU2632-2868-2.5 d TDSCA67-73 d 2.0 2.953 7.170 4.0 13.544 11.9 AP1102 0.039 WWMU09X510R-D*
2.750 TDBU2632-2868-2.5 d TDSCA67-73 d 2.0 2.953 7.170 4.0 13.544 11.9 AP1103 0.059 WWMU09X510R-D*
2.789 TDBU2632-2868-2.5 d TDSCA67-73 d 2.0 2.953 7.170 4.0 13.544 11.9 AP1104 0.079 WWMU09X510R-D*
2.829 TDBU2632-2868-2.5 d TDSCA67-73 d 2.0 2.953 7.170 4.0 13.544 11.9 AP1105 0.098 WWMU09X510R-D*
2.868 TDBU2632-2868-2.5 d TDSCA67-73 d 2.0 2.953 7.170 4.0 13.544 11.9 AP1106 0.118 WWMU09X510R-D*
2.921 TDBU2921-3157-2.5 d TDSCA74-80 d 2.0 2.953 7.894 4.0 13.973 13.7 - - WWMU11X512R-D*
2.961 TDBU2921-3157-2.5 d TDSCA74-80 d 2.0 2.953 7.894 4.0 13.973 13.7 AP1101 0.020 WWMU11X512R-D*
3.000 TDBU2921-3157-2.5 d TDSCA74-80 d 2.0 2.953 7.894 4.0 13.973 13.7 AP1102 0.039 WWMU11X512R-D*
3.039 TDBU2921-3157-2.5 d TDSCA74-80 d 2.0 2.953 7.894 4.0 13.973 13.7 AP1103 0.059 WWMU11X512R-D*
11 3.079 TDBU2921-3157-2.5 d TDSCA74-80 d 2.0 2.953 7.894 4.0 13.973 13.7 AP1104 0.079 WWMU11X512R-D*
3.118 TDBU2921-3157-2.5 d TDSCA74-80 d 2.0 2.953 7.894 4.0 13.973 13.7 AP1105 0.098 WWMU11X512R-D*
3.157 TDBU2921-3157-2.5 d TDSCA74-80 d 2.0 2.953 7.894 4.0 13.973 13.7 AP1106 0.118 WWMU11X512R-D*
Drilling Tools Inserts Stocked grades

Chipbreaker
diameters
Appearance Cat. No. TUNGAL O Y Dimensions (inch) Applicable drill
AH9030 AH6030 ød T ød1 rε øDc (inch)
DJ WWMU08X408R-DJ d 0.315 0.154 0.134 0.031 ø2.250 - ø2.579
r ε WWMU09X510R-DJ d 0.382 0.193 0.173 0.039 ø2.632 - ø2.868
ød1 WWMU11X512R-DJ d 0.445 0.224 0.217 0.047 ø2.921 - ø3.157
ød
T
DS WWMU08X408R-DS d 0.315 0.154 0.134 0.031 ø2.250 - ø2.579
r ε
WWMU09X510R-DS d 0.382 0.193 0.173 0.039 ø2.632 - ø2.868
ød1 WWMU11X512R-DS d 0.445 0.224 0.217 0.047 ø2.921 - ø3.157
ød
T
l：Stocked items

11–42 Relating Cutting Conditions Technical reference
pages
(11-14 )
(14-1)
