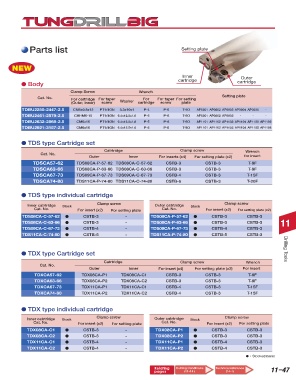

Page 863 - Tungaloy Catalog

Parts list Setting plate

NEW

Inner Outer
cartridge cartridge
 Body
Clamp Screw Wrench
Setting plate
Cat. No. For cartridge For taper For For taper For setting
(Outer, Inner) screw Washer cartridge screw plate
TDBU2250-2447-2.5 CM5x0.8x12 PT1/4GN 5.3x10x1 P-4 P-6 T-9D AP0801 AP0802 AP0803 AP0804 AP0805 -
TDBU2461-2579-2.5 CHHM6-15 PT1/4GN 6.4x12.5x1.6 P-5 P-6 T-9D AP0801 AP0802 AP0803 - - -
TDBU2632-2868-2.5 CM6x16 PT1/4GN 6.4x12.5x1.6 P-5 P-6 T-9D AP1101 AP1102 AP1103 AP1104 AP1105 AP1106
TDBU2921-3157-2.5 CM6x16 PT1/4GN 6.4x12.5x1.6 P-5 P-6 T-9D AP1101 AP1102 AP1103 AP1104 AP1105 AP1106

 TDS type Cartridge set
Catrtridge Clamp screw Wrench
Cat. No.
Outer Inner For inserts (x4) For setting plate (x2) for insert
TDSCA57-62 TDS08CA-P-57-62 TDS08CA-C-57-62 CSTB-3 CSTB-3 T-9F
TDSCA63-66 TDS08CA-P-63-66 TDS08CA-C-63-66 CSTB-3 CSTB-3 T-9F
TDSCA67-73 TDS09CA-P-67-73 TDS09CA-C-67-73 CSTB-4 CSTB-3 T-15F
TDSCA74-80 TDS11CA-P-74-80 TDS11CA-C-74-80 CSTB-5 CSTB-3 T-20F

 TDS type individual cartridge

Clamp screw Clamp screw
Inner catrtridge Stock Outer catrtridge Stock
Cat. No. For insert (x2) For setting plate Cat. No. For insert (x2) For setting plate (x2)
TDS08CA-C-57-62  CSTB-3 - TDS08CA-P-57-62  CSTB-3 CSTB-3
TDS08CA-C-63-66  CSTB-3 - TDS08CA-P-63-66  CSTB-3 CSTB-3 11
TDS09CA-C-67-73  CSTB-4 - TDS09CA-P-67-73  CSTB-4 CSTB-3
TDS11CA-C-74-80  CSTB-5 - TDS11CA-P-74-80  CSTB-5 CSTB-3

 TDX type Cartridge set Drilling Tools
Catrtridge Clamp screw Wrench
Cat. No.
Outer Inner For insert (x4) For setting plate (x2) For insert
TDXCA57-62 TDX08CA-P1 TDX08CA-C1 CSTB-3 CSTB-3 T-9F
TDXCA63-66 TDX08CA-P2 TDX08CA-C2 CSTB-3 CSTB-3 T-9F
TDXCA67-73 TDX11CA-P1 TDX11CA-C1 CSTB-4 CSTB-3 T-15F
TDXCA74-80 TDX11CA-P2 TDX11CA-C2 CSTB-4 CSTB-3 T-15F

 TDX type individual cartridge

Clamp screw Clamp screw
Inner catrtridge Stock Outer catrtridge Stock
Cat. No. For insert (x2) For setting plate Cat. No. For insert (x2) For setting plate
TDX08CA-C1  CSTB-3 - TDX08CA-P1  CSTB-3 CSTB-3
TDX08CA-C2  CSTB-3 - TDX08CA-P2  CSTB-3 CSTB-3
TDX11CA-C1  CSTB-4 - TDX11CA-P1  CSTB-4 CSTB-3
TDX11CA-C2  CSTB-4 - TDX11CA-P2  CSTB-4 CSTB-3
●：Stocked items

Relating Cutting Conditions Technical reference 11–47
pages (11-14 ) (14-1)
