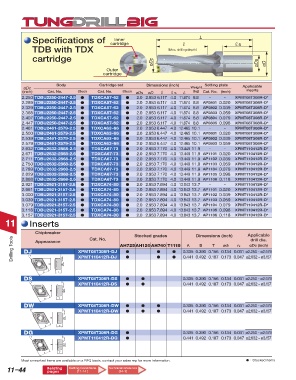

Page 860 - Tungaloy Catalog

Specifications of cartridge L rs
Inner
r
TDB with TDX （Max. drilling depth）
cartridge
øDc øDs øD

Outer
cartridge

Body Cartridge set Dimensions (inch) Setting plate
øDc Weight Applicable
(inch) Cat. No. Stock Cat. No. Stock øDs øD r rs L (kg) Cat. No. (inch) inserts
2.250 TDBU2250-2447-2.5 d TDXCA57-62 d 2.0 2.953 6.117 4.0 11.874 8.8 - - XPMT08T308R-D*
2.289 TDBU2250-2447-2.5 d TDXCA57-62 d 2.0 2.953 6.117 4.0 11.874 8.8 AP0801 0.020 XPMT08T308R-D*
2.329 TDBU2250-2447-2.5 d TDXCA57-62 d 2.0 2.953 6.117 4.0 11.874 8.8 AP0802 0.039 XPMT08T308R-D*
2.368 TDBU2250-2447-2.5 d TDXCA57-62 d 2.0 2.953 6.117 4.0 11.874 8.8 AP0803 0.059 XPMT08T308R-D*
2.407 TDBU2250-2447-2.5 d TDXCA57-62 d 2.0 2.953 6.117 4.0 11.874 8.8 AP0804 0.079 XPMT08T308R-D*
2.447 TDBU2250-2447-2.5 d TDXCA57-62 d 2.0 2.953 6.117 4.0 11.874 8.8 AP0805 0.098 XPMT08T308R-D*
2.461 TDBU2461-2579-2.5 d TDXCA63-66 d 2.0 2.953 6.447 4.0 12.465 10.1 - - XPMT08T308R-D*
2.500 TDBU2461-2579-2.5 d TDXCA63-66 d 2.0 2.953 6.447 4.0 12.465 10.1 AP0801 0.020 XPMT08T308R-D*
2.539 TDBU2461-2579-2.5 d TDXCA63-66 d 2.0 2.953 6.447 4.0 12.465 10.1 AP0802 0.039 XPMT08T308R-D*
2.579 TDBU2461-2579-2.5 d TDXCA63-66 d 2.0 2.953 6.447 4.0 12.465 10.1 AP0803 0.059 XPMT08T308R-D*
2.632 TDBU2632-2868-2.5 d TDXCA67-73 d 2.0 2.953 7.170 4.0 13.449 11.9 - - XPMT110412R-D*
2.671 TDBU2632-2868-2.5 d TDXCA67-73 d 2.0 2.953 7.170 4.0 13.449 11.9 AP1101 0.020 XPMT110412R-D*
2.711 TDBU2632-2868-2.5 d TDXCA67-73 d 2.0 2.953 7.170 4.0 13.449 11.9 AP1102 0.039 XPMT110412R-D*
2.750 TDBU2632-2868-2.5 d TDXCA67-73 d 2.0 2.953 7.170 4.0 13.449 11.9 AP1103 0.059 XPMT110412R-D*
2.789 TDBU2632-2868-2.5 d TDXCA67-73 d 2.0 2.953 7.170 4.0 13.449 11.9 AP1104 0.079 XPMT110412R-D*
2.829 TDBU2632-2868-2.5 d TDXCA67-73 d 2.0 2.953 7.170 4.0 13.449 11.9 AP1105 0.098 XPMT110412R-D*
2.868 TDBU2632-2868-2.5 d TDXCA67-73 d 2.0 2.953 7.170 4.0 13.449 11.9 AP1106 0.118 XPMT110412R-D*
2.921 TDBU2921-3157-2.5 d TDXCA74-80 d 2.0 2.953 7.894 4.0 13.843 13.7 - - XPMT110412R-D*
2.961 TDBU2921-3157-2.5 d TDXCA74-80 d 2.0 2.953 7.894 4.0 13.843 13.7 AP1101 0.020 XPMT110412R-D*
3.000 TDBU2921-3157-2.5 d TDXCA74-80 d 2.0 2.953 7.894 4.0 13.843 13.7 AP1102 0.039 XPMT110412R-D*
3.039 TDBU2921-3157-2.5 d TDXCA74-80 d 2.0 2.953 7.894 4.0 13.843 13.7 AP1103 0.059 XPMT110412R-D*
3.079 TDBU2921-3157-2.5 d TDXCA74-80 d 2.0 2.953 7.894 4.0 13.843 13.7 AP1104 0.079 XPMT110412R-D*
3.118 TDBU2921-3157-2.5 d TDXCA74-80 d 2.0 2.953 7.894 4.0 13.843 13.7 AP1105 0.098 XPMT110412R-D*
3.157 TDBU2921-3157-2.5 d TDXCA74-80 d 2.0 2.953 7.894 4.0 13.843 13.7 AP1106 0.118 XPMT110412R-D*
11 Inserts

Chipbreaker Cat. No. Stocked grades Dimensions (inch) Applicable
Drilling Tools DJ Appearance 11° XPMT08T308R-DJ AH725 AH120 AH740 T1115 0.335 0.390 0.156 0.134 0.031 ø2.250 - ø2.579
drill dia.
T
øDc (inch)
B
A
rε
ød1
d
d
d
rε
XPMT110412R-DJ
0.441 0.492 0.187 0.173 0.047 ø2.632 - ø3.157
B Ød d d d
A T
DS XPMT08T308R-DS d d 0.335 0.390 0.156 0.134 0.031 ø2.250 - ø2.579
rε
11° XPMT110412R-DS d d 0.441 0.492 0.187 0.173 0.047 ø2.632 - ø3.157
B Ød
A T
DW XPMT08T308R-DW d d d 0.335 0.390 0.156 0.134 0.031 ø2.250 - ø2.579
rε 11° XPMT110412R-DW d d d 0.441 0.492 0.187 0.173 0.047 ø2.632 - ø3.157
B Ød
A T
DG XPMT08T308R-DG d 0.335 0.390 0.156 0.134 0.031 ø2.250 - ø2.579
rε 11° XPMT110412R-DG d 0.441 0.492 0.187 0.173 0.047 ø2.632 - ø3.157
B Ød
A T
Most unmarked items are available on a RFQ basis, contact your sales rep for more information. l：Stocked items
