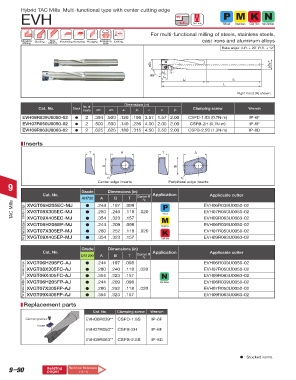

Page 677 - Tungaloy Catalog

Hybrid TAC Mills Multi-functional type with center cutting edge
EVH ~ 4.5 in Air Hole Steel Stainless Cast Iron Non-ferrous
90°
For multi-functional milling of steels, stainless steels,
Shoulder Slotting Side Pocketing Ramping Plunging Enlarging Drilling cast irons and aluminum alloys
Milling Milling Hole
Rake angle: A.R. + 20˚ R.R. + 12˚

øDc øDs h6

ap 1˚
90°
R a
Lf R s
L
Right hand (R) shown.

Dimensions (in)
No. of
Cat. No. Stock inserts øD c øD s a p R a L L f R s Clamping screw Wrench
EVH06R039U0050-02 d 2 .394 .500 .120 .196 3.57 1.57 2.00 CSPD-1.8S (0.7N·m) IP-6F
EVH07R050U0050-02 d 2 .500 .500 .140 .236 4.00 2.00 2.00 CSPB-2H (0.7N·m) IP-6F
EVH09R063U0063-02 d 2 .625 .625 .180 .315 4.50 2.50 2.00 CSPB-2.5S (1.3N·m) IP-8D

Inserts
T A T A

B B

r Џ r Џ
Center edge inserts Peripheral edge inserts
9
Cat. No. Grade Dimensions (in) Application Applicable cutter

AH730 A B T Corner R
r ε
TAC Mills Center edge XVGT06H205EC-MJ d .244 .197 .098 .020 Steel EVH06R039U0050-02
XVGT08X305EC-MJ
.280
.240
.118
EVH07R050U0050-02
d
XVGT09X405EC-MJ
.354
.323
.157
EVH09R063U0063-02
d
Peripheral edge XVGT06H205EP-MJ d .244 .209 .098 .020 Cast Iron EVH06R039U0050-02
Stainless
.252
EVH07R050U0050-02
XVGT07X305EP-MJ
.118
.280
d
EVH09R063U0063-02
.323
.157
XVGT09X405EP-MJ
.354
d
Grade Dimensions (in)
Cat. No. Application Applicable cutter
DS1200 A B T Corner R
r ε
Center edge XVGT06H205FC-AJ d .244 .197 .098 .020 EVH06R039U0050-02
XVGT08X305FC-AJ
.280
EVH07R050U0050-02
.240
.118
d
.157
XVGT09X405FC-AJ
EVH09R063U0063-02
.354
.323
d
Peripheral edge XVGT06H205FP-AJ d .244 .209 .098 .020 Non-ferrous EVH06R039U0050-02
XVGT07X305FP-AJ
EVH07R050U0050-02
.118
.252
.280
d
XVGT09X405FP-AJ
.354
EVH09R063U0063-02
.323
.157
d
Replacement parts
Cat. No. Clamping screw Wrench
Clamping screw EVH06R039** CSPD-1.8S IP-6F
Insert
EVH07R050** CSPB-2H IP-6F
EVH09R063** CSPB-2.5S IP-8D
 : Stocked items.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–90 Relating Technical Reference
pages
