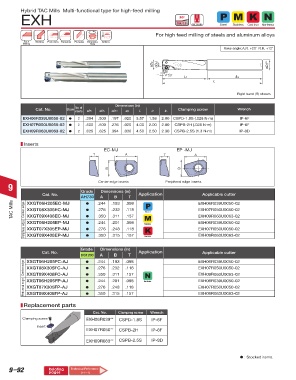

Page 679 - Tungaloy Catalog

Hybrid TAC Mills Multi-functional type for high-feed milling
EXH .024, 0.8 in Air Hole Steel Stainless Cast Iron Non-ferrous
20°
For high feed milling of steels and aluminum alloys
Face Slotting Pocketing Ramping Plunging Enlarging Drilling
Milling Hole
Rake angle: A.R. +20˚ R.R. +12˚

øDc øDc1 øDs h6

ap
20˚
Lf R s
L
Right hand (R) shown.

Dimensions (in)
No. of
Cat. No. Stock inserts øD c øD s øD c1 ap L L f R s Clamping screw Wrench
EXH06R039U0050-02 d 2 .394 .500 .197 .020 3.57 1.58 2.00 CSPD-1.8S (.028 N·m) IP-6F
EXH07R050U0050-02 d 2 .500 .500 .276 .020 4.00 2.00 2.00 CSPB-2H (.028 N·m) IP-6F
EXH09R063U0063-02 d 2 .625 .625 .394 .030 4.50 2.50 2.30 CSPB-2.5S (1.3 N·m) IP-8D

Inserts
EC-MJ EP -MJ
T A T A

B B

Center edge inserts Peripheral edge inserts
9
Cat. No. Grade Dimensions (in) Application Applicable cutter
AH730 A B T
TAC Mills Center edge XXGT08X305EC-MJ d .244 .193 .098 Steel EXH06R039U0050-02
XXGT06H205EC-MJ
.232
.276
EXH07R050U0050-02
.118
d
.350
EXH09R063U0063-02
.311
XXGT09X408EC-MJ
.157
d
Peripheral edge XXGT06H205EP-MJ d .244 .201 .098 Stainless EXH06R039U0050-02
XXGT07X305EP-MJ
.248
.276
.118
EXH07R050U0050-02
d
XXGT09X408EP-MJ
.157
.350
EXH09R063U0063-02
.315
d
Cast Iron
Grade Dimensions (in)
Cat. No. Application Applicable cutter
B
T
A
DS1200 .244 .193 .098 EXH06R039U0050-02
XXGT06H205FC-AJ
Center edge XXGT08X305FC-AJ d .276 .232 .118 EXH07R050U0050-02
d
.157
.311
.350
XXGT09X408FC-AJ
EXH09R063U0063-02
d
Peripheral edge XXGT06H205FP-AJ d .244 .201 .098 Non-ferrous EXH06R039U0050-02
XXGT07X305FP-AJ
EXH07R050U0050-02
.276
.248
.118
d
XXGT09X408FP-AJ
.315
EXH09R063U0063-02
.350
.157
d
Replacement parts
Cat. No. Clamping screw Wrench
Clamping screw EXH06R039** CSPD-1.8S IP-6F
Insert
EXH07R050** CSPB-2H IP-6F
EXH09R063** CSPB-2.5S IP-8D
 : Stocked items.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–92 Relating Technical Reference
pages
