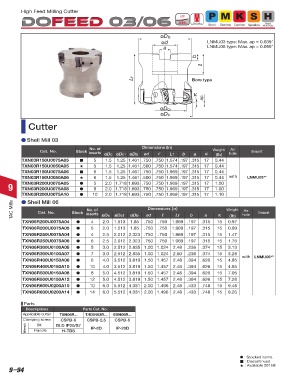

Page 681 - Tungaloy Catalog

High Feed Milling Cutter
DOFEED 03/06 .039in Air Hole Steel Stainless Cast Iron Superalloys Materials
17°
Hard
øDb
ød LNMU03 type: Max. ap = 0.039"
a LNMU06 type: Max. ap = 0.059"

b
R

Lf Bore type

15° κ
ap

øDc1
øDc

Cutter

Shell Mill 03
No. of Dimensions (in) Weight Air
Cat. No. Stock inserts øDc øDc1 øDb ød ℓ Lf b a κ (lb) hole Insert
TXN03R150U0075A05  5 1.5 1.25 1.461 .750 .750 1.574 .197 .315 17 0.44
TXN03R150U0050A05  5 1.5 1.25 1.461 .500 .750 1.574 .197 .315 17 0.44
TXN03R150U0075A06  6 1.5 1.25 1.461 .750 .750 1.969 .197 .315 17 0.44
TXN03R150U0050A06  6 1.5 1.25 1.461 .500 .750 1.969 .197 .315 17 0.44 with LNMU03**
9 TXN03R200U0075A05  5 2.0 1.718 1.693 .750 .750 1.969 .197 .315 17 1.00
TXN03R200U0075A08
17
1.00
8
2.0 1.718 1.693 .750 .750 1.969 .197 .315

TXN03R200U0075A10  10 2.0 1.718 1.693 .750 .750 1.969 .197 .315 17 1.10
Shell Mill 06
TAC Mills Cat. No. Stock inserts øDc øDc1 øDb ød ℓ Lf b a κ Weight hole Insert
Dimensions (in)
No. of
Air
(Ib)
TXN06R200U0075A04  4 2.0 1.513 1.85 .750 .750 1.969 .197 .315 15 0.97
TXN06R200U0075A05  5 2.0 1.513 1.85 .750 .750 1.969 .197 .315 15 0.99
TXN06R250U0075A04  4 2.5 2.012 2.323 .750 .750 1.969 .197 .315 15 1.47
TXN06R250U0075A06  6 2.5 2.012 2.323 .750 .750 1.969 .197 .315 15 1.76
TXN06R300U0100A05  5 3.0 2.512 2.835 1.00 1.024 2.48 .236 .374 15 3.13
TXN06R300U0100A07  7 3.0 2.512 2.835 1.00 1.024 2.50 .236 .374 15 3.28 with
TXN06R400U0150A06  6 4.0 3.512 3.819 1.50 1.457 2.48 .394 .626 15 4.85 LNMU06**
TXN06R400U0150A10  10 4.0 3.512 3.819 1.50 1.457 2.48 .394 .626 15 4.85
TXN06R500U0150A08  8 5.0 4.512 3.819 1.50 1.457 2.48 .394 .626 15 7.05
TXN06R500U0150A12  12 5.0 4.512 3.819 1.50 1.457 2.48 .394 .626 15 7.28
TXN06R600U0200A10  10 6.0 5.512 4.331 2.00 1.496 2.48 .433 .748 15 9.48
TXN06R600U0200A14  14 6.0 5.512 4.331 2.00 1.496 2.48 .433 .748 15 9.26

Parts
Descriptions Parts Cat. No.
Applicable cutter TXN06R... T/EXN03R... EXN06R...
Clamping screw CSPB-5 CSPB-2.5 CSPB-5
Bit BLD IP20/S7
Wrench Handle H-TBS IP-8D IP-20D

 : Stocked items.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.  : Discontinued
 : Available 2015B
9–94
