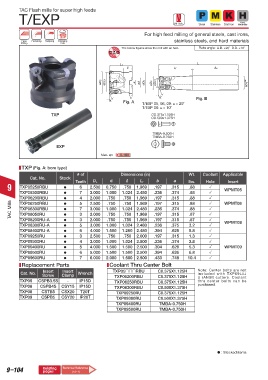

Page 690 - Tungaloy Catalog

TAC Flash mills for super high feeds
T/EXP Air Hole Steel Stainless Cast Iron Materials

Hard

For high feed milling of general steels, cast irons,
Face Pocketing Ramping Enlarging stainless steels, and hard materials
Milling Hole
The below figures show the mill with air hole. Rake angle: A.R. +20˚ R.R. +12˚

L
Lf
R Lf R s

øDc øDc1 a ød øDb øDc øDc1 øDs h6

κ
b
κ Fig. A T/EXP 05, 06, 09: κ = 20˚ Fig. B
T/EXP 08: κ = 10˚
TXP CO.375x1.125H
CO.500x1.375H

TMBA-0.500H
TMBA-0.750H
EXP
Max. ap: 9-108

TXP (Fig. A: bore type)
Effective dia.
# of Dimensions (in) Wt. Coolant Applicable
Cat. No. Stock Teeth D c d R L f b a lbs. Hole Insert
9 TXP05250RBU  6 2.500 0.750 .750 1.969 .197 .315 .88  WPMT05

TXP05300RBU  7 3.000 1.000 1.024 2.480 .236 .374 .88 
TXP06200RBU  4 2.000 .750 .750 1.969 .197 .315 .88  WPMT06
TAC Mills TXP06300RBU  7 3.000 1.000 1.024 2.480 .236 .374 .88 
2.500
.315
.88

.197
.750
.750
1.969
TXP06250RBU
5

.197
.750
1.969
.315

.87
TXP08050RU
.750
2.000
3
TXP08200RU-A  3 2.000 .750 .750 1.969 .197 .315 .87  WPMT08

TXP08300RU-A  5 3.000 1.000 1.024 2.480 .236 .375 3.2 
TXP08400RU-A  6 4.000 1.500 1.260 2.480 .394 .625 5.8 
TXP09250RU  3 2.500 .750 .750 2.000 .197 .315 1.3 
TXP09300RU  4 3.000 1.000 1.024 2.500 .236 .374 2.8 
TXP09400RU  5 4.000 1.500 1.500 2.500 .394 .626 5.3  WPMT09
TXP09500RU  6 5.000 1.500 1.500 2.500 .394 .626 6.8 
TXP09600RU  7 6.000 2.000 1.500 2.500 .433 .748 10.4 
Replacement Parts Coolant Thru Center Bolt
Insert Insert TXP05□□□RBU C0.375X1.125H Note: Center bolts are not
Cat. No. Screw Clamp Wrench TXP06200RBU C0.375X1.125H included with TXP09□□
TXP05 CSPB3.5S - IP15D TXP06250RBU C0.375X1.125H U (ANSI) cutters. Coolant
thru center bolts can be
TXP06 CSPB4S CSY15 IP15D TXP06300RBU C0.500X1.375H purchased.
TXP08 CSTB5 CSX20 T20T TXP09250RU C0.375X1.125H
TXP09 CSPB5 CSY20 IP20T TXP09300RU C0.500X1.375H
TXP09400RU TMBA-0.750H
TXP09500RU TMBA-0.750H
 : Stocked items.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
