P. 844

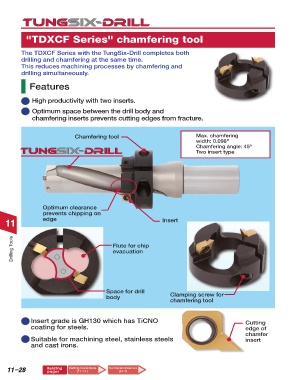

"TDXCF Series" chamfering tool
The TDXCF Series with the TungSix-Drill completes both
drilling and chamfering at the same time.
This reduces machining processes by chamfering and
drilling simultaneously.
Features
High productivity with two inserts.
Optimum space between the drill body and
chamfering inserts prevents cutting edges from fracture.
Chamfering tool Max. chamfering
width: 0.098"
Chamfering angle: 45º
Two insert type
Optimum clearance
prevents chipping on
11 edge Insert
Drilling Tools Flute for chip
evacuation
Space for drill
body Clamping screw for
chamfering tool
Insert grade is GH130 which has TiCNO Cutting
coating for steels. edge of
chamfer
Suitable for machining steel, stainless steels insert
and cast irons.
11–28 Relating Cutting Conditions Technical reference
pages
(11-14 )
(14-1)
