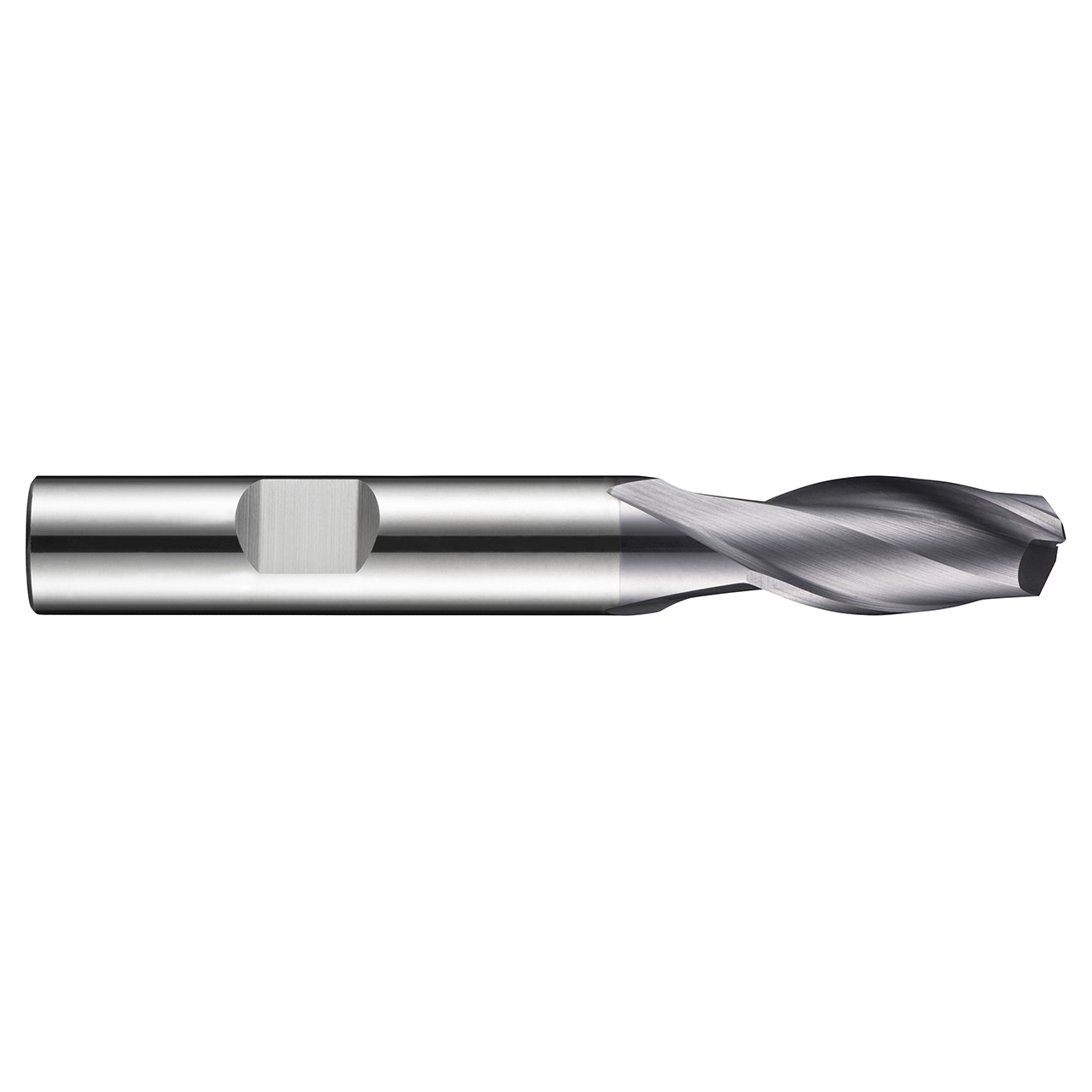

Dormer S92212.0 | 0.4724" Diameter x 2.874" OAL 2 Flute TiAlN Coated Square End Mill

$85.80
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139289
Weight:
3.46 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S922 2-flute milling cutters are manufactured from premium carbide which provides a longer tool life and great performance, whilst the titanium aluminium nitride coating further enhances tool life and improves performance milling difficult to machine materials. For high rigidity for milling standard slots, the tools have a medium length flute design and are very versatile products, being suitable for plunging, ramping and profile milling in steels, stainless steels and cast iron. S922 2-flute slot drills are a great economical range for general milling of slots on most types of machine.


Product Specifications
Max Depth of Cut (mm)25mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.4724"
Overall Length (Inch)2.874"
Material CodeHM
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingTiAlN
Surface ColorBlack-Deep Purple
