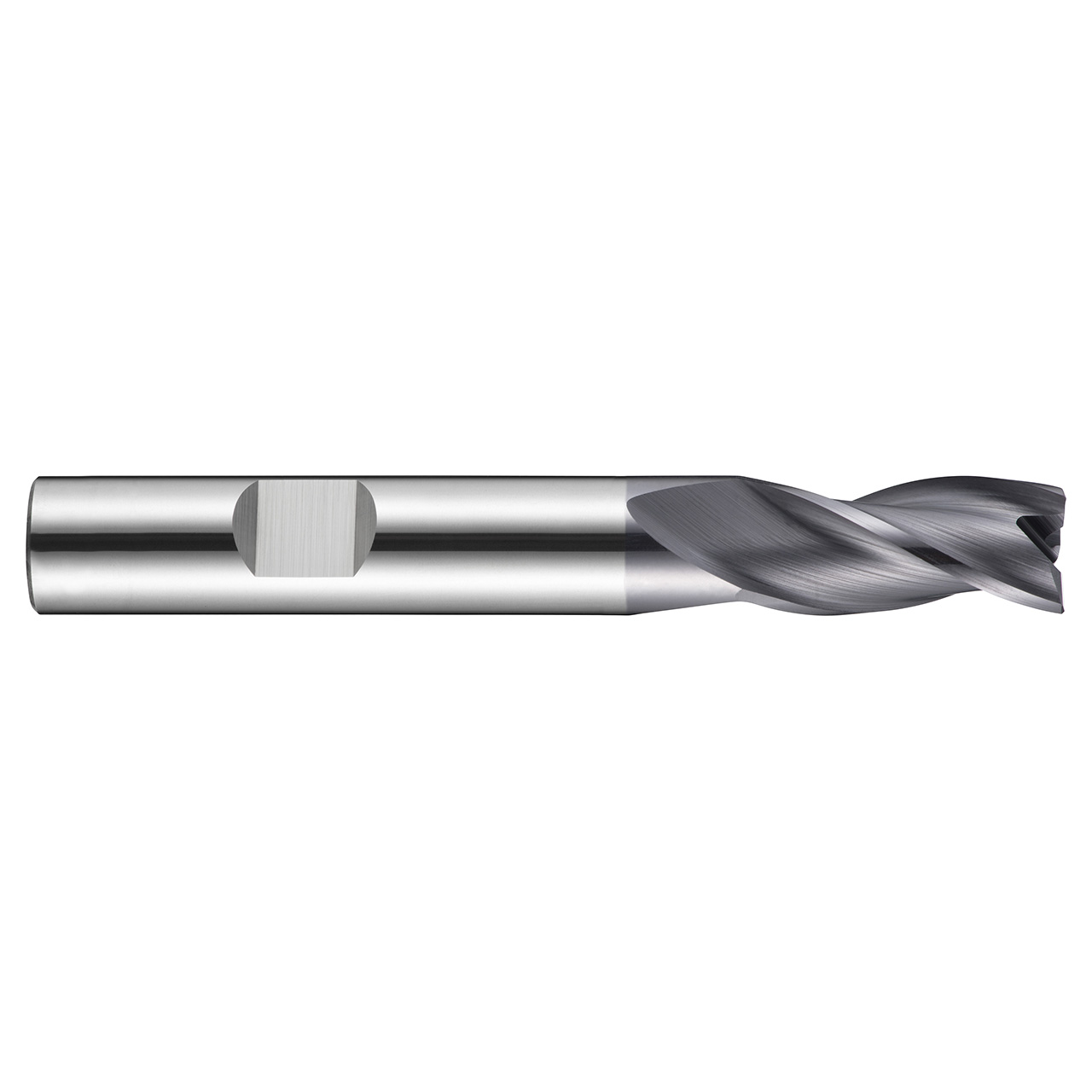

Dormer S93312.0 | 0.4724" Diameter x 2.874" OAL 3 Flute TiAlN Coated Square End Mill

$87.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139304
Weight:
3.46 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Part of Dormer's great range of carbide milling cutters, S933 3-flute cutters are a good economical choice for general milling of slots on most types of machine and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron. With a medium length flute design, the extra rigidity provided makes them great for milling standard slots and profiling. S933 3-flute slot drills are manufactured from premium carbide for superior performance and longer tool life, whilst the titanium aluminium nitride coating further increases tool life and improves performance when milling materials which are difficult to machine.


Product Specifications
Max Depth of Cut (mm)25mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.4724"
Overall Length (Inch)2.874"
Material CodeHM
Radial Rake Angle12
No of Flute3
Flute Helix Angle30
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingTiAlN
Surface ColorBlack-Deep Purple
