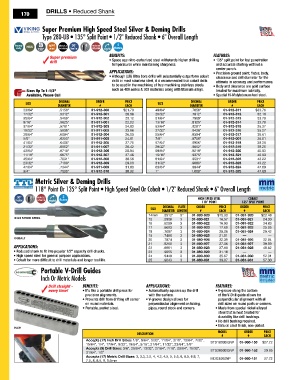

Page 172 - All Industrial Tool Supply | General Catalog

DRILLS • Reduced Shank
170

Super Premium High Speed Steel Silver & Deming Drills
Type 280-UB • 135° Split Point • 1/2" Reduced Shank • 6" Overall Length

Benefits: feAtures:
Super premium
drill • Space age nitro-carburized steel withstands higher drilling • 135° split point for fast penetration
temperatures while maintaining sharpness. and accurate starting without a
center punch.
APPLiCAtiOns: • Precision ground point, flutes, body,
• Although (UB) Ultra bore drills will substantially outperform cobalt clearance and drill diameter for the
drills in most stainless steel, it is recommended that cobalt drills ultimate in accuracy and performance.
to be used in the machining of free machining stainless steels • Body and clearance are gold surface
Sizes Up To 1-1/2" such as 400 series & 303 materials along with titanium alloys. treated for maximum lubricity.
Available, Please Call • Special Hi-Molybdenum tool steel.
DeciMal OrDer Price DeciMal OrDer Price
Size Size
DiaMeter # eacH DiaMeter # eacH
33/64" .5156" 01-912-300 $21.70 49/64" .7656" 01-912-311 $33.76
17/32" .5312" 01-912-301 20.68 25/32" .7812" 01-912-312 32.16
35/64" .5469" 01-912-302 23.12 51/64" .7969" 01-912-313 33.78
9/16" .5625" 01-911-001 22.02 13/16" .8125" 01-912-314 33.78
37/64" .5781" 01-912-303 24.83 53/64" .8281" 01-912-315 35.27
19/32" .5938" 01-911-003 23.66 27/32" .8438" 01-912-316 35.27
39/64" .6094" 01-912-304 26.00 55/64" .8594" 01-912-317 36.61
5/8" .6250" 01-911-005 24.81 7/8" .8750" 01-912-001 36.61
41/64" .6406" 01-912-305 27.75 57/64" .8906" 01-912-318 38.26
21/32" .6562" 01-911-007 26.42 29/32" .9062" 01-912-319 38.26
43/64" .6719" 01-912-306 28.84 59/64" .9219" 01-912-320 40.93
11/16" .6875" 01-912-307 27.46 15/16" .9375" 01-912-321 40.93
45/64" .7031" 01-912-308 30.56 61/64" .9531" 01-912-322 43.22
23/32" .7188" 01-912-309 29.08 31/32" .9688" 01-912-323 43.22
47/64" .7344" 01-911-009 31.83 63/64" .9844" 01-912-324 47.69
3/4" .7500" 01-912-310 30.32 1" 1.000" 01-912-325 47.69
Metric Silver & Deming Drills
118° Point Or 135° Split Point • High Speed Steel Or Cobalt • 1/2" Reduced Shank • 6" Overall Length

HiGH SPeeD Steel cObalt
118° POint 135° SPlit POint
DeciMal
Flute
Size DiaMeter lenGtH OrDer Price OrDer Price
eacH
eacH
#
#
14mm .5512" 3" 01-080-920 $15.33 01-081-920 $22.48
high speed steel 15 .5906 3 01-080-921 16.57 01-081-921 24.30
16 .6299 3 01-080-922 16.93 01-081-922 24.83
17 .6693 3 01-080-923 17.69 01-081-923 25.95
18 .7087 3 01-080-924 20.06 01-081-924 29.42
19 .7480 3 01-080-925 21.51 — —
Cobalt 20 .7874 3 01-080-926 22.39 01-081-926 32.84
21 .8268 3 01-080-927 27.06 01-081-927 39.69
APPLiCAtiOns: 22 .8661 3 01-080-928 27.69 01-081-928 40.62
• Reduced shank to fit into popular 1/2" capacity drill chucks. 23 .9055 3 01-080-929 31.18 — —
• High speed steel for general purpose applications. 24 .9449 3 01-080-930 35.67 01-081-930 52.31
• Cobalt for more difficult to drill materials and longer tool life. 25 .9843 3 01-080-931 39.07 01-081-931 57.30
Portable V-Drill Guides
Inch Or Metric Models
Drill straight - Benefits: APPLiCAtiOns: feAtures:
every time! • It's like a portable drill press for • Automatically squares up the drill • V-groove along the bottom
precision alignments. with the surface. of the V-Drill guide allows for
• Prevents drill from drifting off center • V-groove design allows for perpendicular alignment with all
on round materials. perpendicular alignment on tubing, drill sizes on round parts or corners.
• Portable, pocket sized. pipes, round stock and corners. • Made from special nickel alloyed
steel that is heat treated for
durability like drill bushings.
• No drill bushing required.
• Natural steel finish, non-plated.
inCh
MODel OrDer Price
DeScriPtiOn
# # eacH
accepts (17) inch drill sizes: 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32",
15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8" STD1000DGNP 01-960-150 $27.72
accepts (9) drill sizes: 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", STD2000DGNP 01-960-152 29.95
31/64", 1/2"
accepts (17) Metric drill sizes: 3, 3.3, 3.5, 4, 4.2, 4.5, 5, 5.5, 6, 6.5, 6.8, 7, MDG1000NP 01-960-151 27.72
7.5, 8, 8.5, 9, 9.5mm
