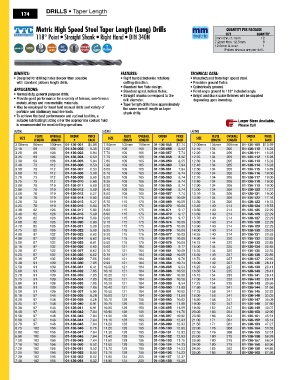

Page 176 - All Industrial Tool Supply | General Catalog

DRILLS • Taper Length
174

Metric High Speed Steel Taper Length (Long) Drills QuanTiTy Per Package
Size
118° Point • Straight Shank • Right Hand • DIN 340N 3mm thru 7.1mm QuanTiTy
12
7.2mm thru 12.5mm 6
12.6mm & over 1
Prices shown are per drill.

Benefits: feAtures: teChniCAL DAtA:
• Designed for drilling holes deeper than possible • Right hand (clockwise rotation) • Manufactured from high speed steel.
with standard jobbers length drills. cutting direction. • Precision ground flutes.
• Standard two flute design. • Cylindrically ground.
APPLiCAtiOns: • Standard spiral, helical flutes. • Point angle ground to 118° included angle.
• Normal duty, general purpose drills. • Straight shanks correspond to the • Bright and black oxide finishes will be supplied
• Provide good performance for a variety of ferrous, non-ferrous drill diameter. depending upon inventory.
metals, alloys and non-metallic materials. • Taper length drills have approximately
• May be employed for hand held manual drills and variety of the same overall length as taper
portable and stationary machine tools. shank drills.
• To achieve the best performance and optimal tool life, a
suitable lubricating/cutting oil or the appropriate coolant fluid Larger Sizes Available,
is recommended for most drilling operations. Please Call
[A23M] [A23M] [A23M]
FLuTe OveraLL OrDer Price FLuTe OveraLL OrDer Price FLuTe OveraLL OrDer Price
Size Size Size
LengTH LengTH # eacH LengTH LengTH # eacH LengTH LengTH # eacH
3.00mm 66mm 100mm 01-136-001 $4.89 7.50mm 102mm 156mm 01-136-055 $7.74 12.00mm 134mm 205mm 01-136-109 $13.89
3.10 69 106 01-136-002 5.35 7.60 109 165 01-136-056 8.52 12.10 134 205 01-136-110 15.28
3.20 69 106 01-136-003 5.94 7.70 109 165 01-136-057 7.74 12.20 134 205 01-136-111 15.28
3.25 69 106 01-136-004 6.53 7.75 109 165 01-136-058 8.52 12.25 134 205 01-136-112 15.28
3.30 69 106 01-136-005 5.94 7.80 109 165 01-136-059 8.55 12.30 134 205 01-136-113 15.28
3.40 73 112 01-136-006 6.53 7.90 109 165 01-136-060 7.94 12.40 134 205 01-136-114 15.28
3.50 73 112 01-136-007 6.53 8.00 109 165 01-136-061 7.94 12.50 134 205 01-136-115 13.89
3.60 73 112 01-136-008 5.89 8.10 109 165 01-136-062 8.74 12.60 134 205 01-136-116 19.00
3.70 73 112 01-136-009 5.89 8.20 109 165 01-136-063 8.74 12.70 134 205 01-136-117 19.00
3.75 73 112 01-136-010 5.89 8.25 109 165 01-136-064 8.74 12.80 134 205 01-136-118 19.00
3.80 78 119 01-136-011 5.89 8.30 109 165 01-136-065 8.74 12.90 134 205 01-136-119 19.00
3.90 78 119 01-136-012 5.89 8.40 109 165 01-136-066 8.74 13.00 134 205 01-136-120 17.27
4.00 78 119 01-136-013 5.27 8.50 109 165 01-136-067 7.74 13.10 134 205 01-136-121 19.00
4.10 78 119 01-136-014 5.80 8.60 115 175 01-136-068 10.09 13.20 134 205 01-136-122 17.16
4.20 78 119 01-136-015 5.27 8.70 115 175 01-136-069 10.09 13.30 134 205 01-136-123 19.78
4.25 78 119 01-136-016 5.80 8.75 115 175 01-136-070 10.09 13.40 140 214 01-136-124 19.78
4.30 82 126 01-136-017 5.80 8.80 115 175 01-136-071 9.17 13.50 140 214 01-136-125 22.29
4.40 82 126 01-136-018 5.89 8.90 115 175 01-136-072 9.17 13.60 140 214 01-136-126 22.29
4.50 82 126 01-136-019 5.89 9.00 115 175 01-136-073 9.17 13.70 140 214 01-136-127 22.29
4.60 82 126 01-136-020 5.89 9.10 115 175 01-136-074 10.09 13.80 140 214 01-136-128 22.29
4.70 82 126 01-136-021 5.89 9.20 115 175 01-136-075 10.09 13.90 140 214 01-136-129 22.29
4.75 82 126 01-136-022 5.89 9.25 115 175 01-136-076 10.09 14.00 140 214 01-136-130 20.53
4.80 87 132 01-136-023 6.62 9.30 115 175 01-136-077 10.09 14.25 140 214 01-136-131 20.53
4.90 87 132 01-136-024 6.62 9.40 115 175 01-136-078 10.09 14.50 144 220 01-136-132 22.85
5.00 87 132 01-136-025 6.01 9.50 115 175 01-136-079 10.09 14.75 144 220 01-136-133 22.85
5.10 87 132 01-136-026 6.62 9.60 121 184 01-136-080 9.17 15.00 144 220 01-136-134 22.85
5.20 87 132 01-136-027 6.62 9.70 121 184 01-136-081 10.09 15.25 144 220 01-136-135 22.85
5.25 87 132 01-136-028 6.62 9.75 121 184 01-136-082 10.09 15.50 149 227 01-136-136 22.85
5.30 87 132 01-136-029 7.05 9.80 121 184 01-136-083 9.76 15.75 149 227 01-136-137 22.85
5.40 91 139 01-136-030 7.05 9.90 121 184 01-136-084 10.74 16.00 149 227 01-136-138 28.41
5.50 91 139 01-136-031 6.41 10.00 121 184 01-136-085 9.54 16.25 149 227 01-136-139 28.41
5.60 91 139 01-136-032 7.05 10.10 121 184 01-136-086 10.50 16.50 154 235 01-136-140 28.41
5.70 91 139 01-136-033 7.05 10.20 121 184 01-136-087 10.50 16.75 154 235 01-136-141 28.41
5.75 91 139 01-136-034 7.05 10.25 121 184 01-136-088 10.50 17.00 154 235 01-136-142 28.41
5.80 91 139 01-136-035 7.05 10.30 121 184 01-136-089 9.54 17.25 154 235 01-136-143 30.66
5.90 91 139 01-136-036 7.05 10.40 121 184 01-136-090 11.69 17.50 158 241 01-136-144 31.66
6.00 91 139 01-136-037 5.95 10.50 121 184 01-136-091 10.62 17.75 158 241 01-136-145 32.82
6.10 97 148 01-136-038 6.28 10.60 121 184 01-136-092 11.69 18.00 158 241 01-136-146 33.05
6.20 97 148 01-136-039 6.28 10.70 128 195 01-136-093 10.62 18.50 158 241 01-136-147 35.09
6.25 97 148 01-136-040 6.91 10.75 128 195 01-136-094 11.69 19.00 162 247 01-136-148 37.60
6.30 97 148 01-136-041 6.91 10.80 128 195 01-136-095 11.69 19.50 162 247 01-136-149 40.07
6.40 97 148 01-136-042 7.84 10.90 128 195 01-136-096 11.75 20.00 166 254 01-136-150 42.90
6.50 97 148 01-136-043 7.84 11.00 128 195 01-136-097 10.62 20.50 166 254 01-136-151 45.51
6.60 97 148 01-136-044 7.84 11.10 128 195 01-136-098 12.93 21.00 171 261 01-136-152 45.14
6.70 97 148 01-136-045 7.84 11.20 128 195 01-136-099 12.93 21.50 171 261 01-136-153 47.27
6.75 102 156 01-136-046 6.76 11.25 128 195 01-136-100 12.93 22.00 176 268 01-136-154 50.53
6.80 102 156 01-136-047 7.64 11.30 128 195 01-136-101 12.93 22.50 176 268 01-136-155 52.61
6.90 102 156 01-136-048 7.64 11.40 128 195 01-136-102 12.93 23.00 180 275 01-136-156 56.29
7.00 102 156 01-136-049 7.64 11.50 128 195 01-136-103 11.75 23.50 180 275 01-136-157 58.04
7.10 102 156 01-136-050 8.52 11.60 128 195 01-136-104 14.23 24.00 180 275 01-136-158 60.96
7.20 102 156 01-136-051 8.52 11.70 128 195 01-136-105 14.23 24.50 185 282 01-136-159 64.88
7.25 102 156 01-136-052 8.52 11.75 128 195 01-136-106 14.23 25.00 185 282 01-136-160 67.56
7.30 102 156 01-136-053 8.52 11.80 134 205 01-136-107 12.37
7.40 102 156 01-136-054 8.52 11.90 134 205 01-136-108 15.28
